Instruments and indicators
EMU41782
6Y9 Multifunction Color Gauge
The 6Y9 Multifunction Color Gauge (herein-
after called the Multi-Display) shows engine
status and alert information. The display of
optional items can be changed. This manual
mainly covers the alert display. For informa-
tion on other settings or changing the dis-
play, see the 6Y9 Multifunction Color Gauge
owner’s manual.
EMU41642
YAMAHA SECURITY SYSTEM
indicator (if equipped)
This indicator appears when the YAMAHA
SECURITY SYSTEM is in lock mode. Make
sure it is off before starting the engine.
EMU41651
Engine warm-up indicator
This indicator appears while the engine is
being warmed up and goes off when warm-
ing-up is finished.
EMU41661
Engine synchronization indicator
In twin types, this display appears while the
1. Arrow keys
2. Set button
3. Cancel button
4. Menu button
5. Display

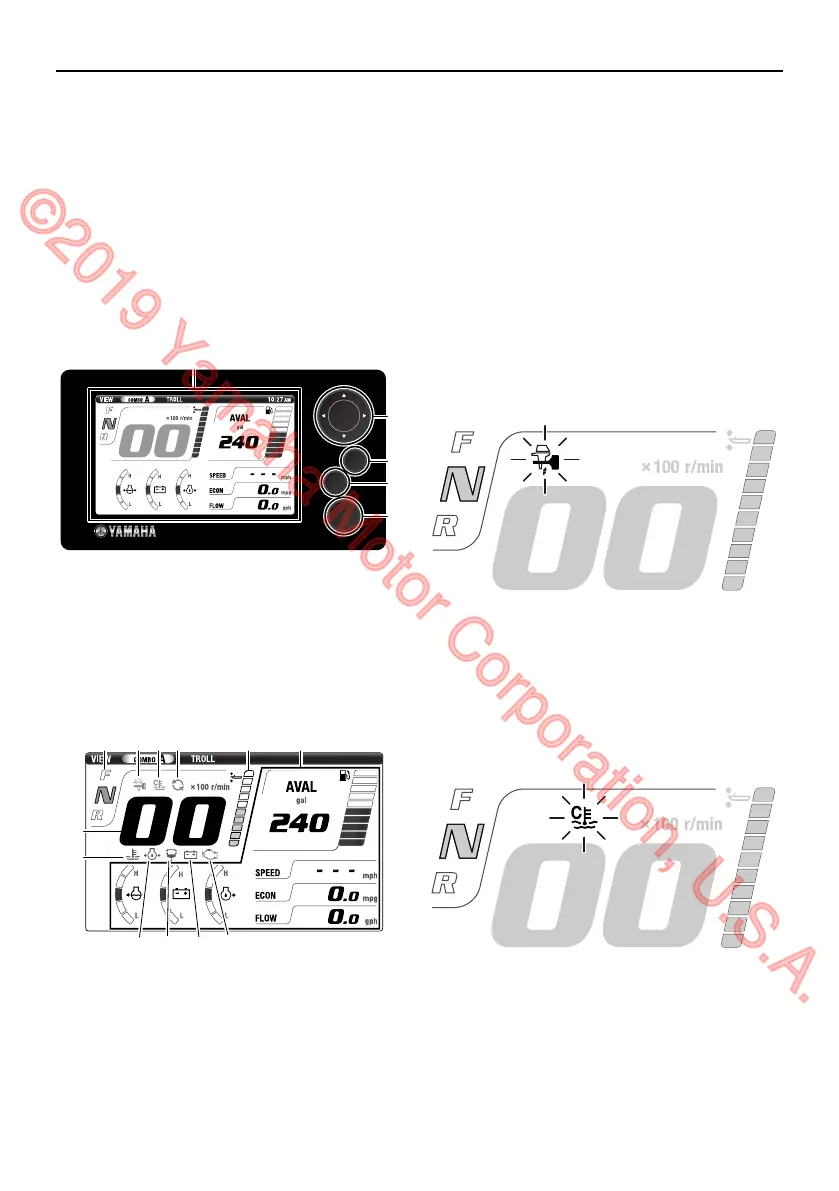

1. Shift position display
2. YAMAHA SECURITY SYSTEM indicator
3. Engine warm-up indicator
4. Engine synchronization indicator
5. Trim meter
SET
MENU
CANCEL
1
2
3
4
5
ZMU07233
54321 6
7
8
9
10
12
11
ZMU07234
6. Optional items
7. Engine trouble-alert indicator
8. Low battery voltage-alert indicator
9. Water separator-alert indicator
10. Low oil pressure-alert indicator
11. Overheat-alert indicator
12. Tachometer
ZMU07235
ZMU07236
