Overheat warning indicator (digital
type)
If the engine temperature rises too high, the
warning indicator will start to blink. For further
information on reading the indicator, see page
21.
CAUTION:
ECM00050
Do not continue to run the engine if the
overheat warning indicator is on. Serious
engine damage will occur.
EMU26600
Speedometer (digital type)
This gauge shows the boat speed.
NOTE:
After the main switch is first turned on, all seg-
ments of the display come on as a test. After
a few seconds, the gauge will change to nor-
mal operation. Watch the gauge when turning
on the main switch to make sure all segments
come on.
NOTE:
The speedometer displays km/h, mph, or
knots, according to operator preference. Se-
lect the desired unit of measurement by set-
ting the selector switch on the back of the
gauge. See the illustration for settings.

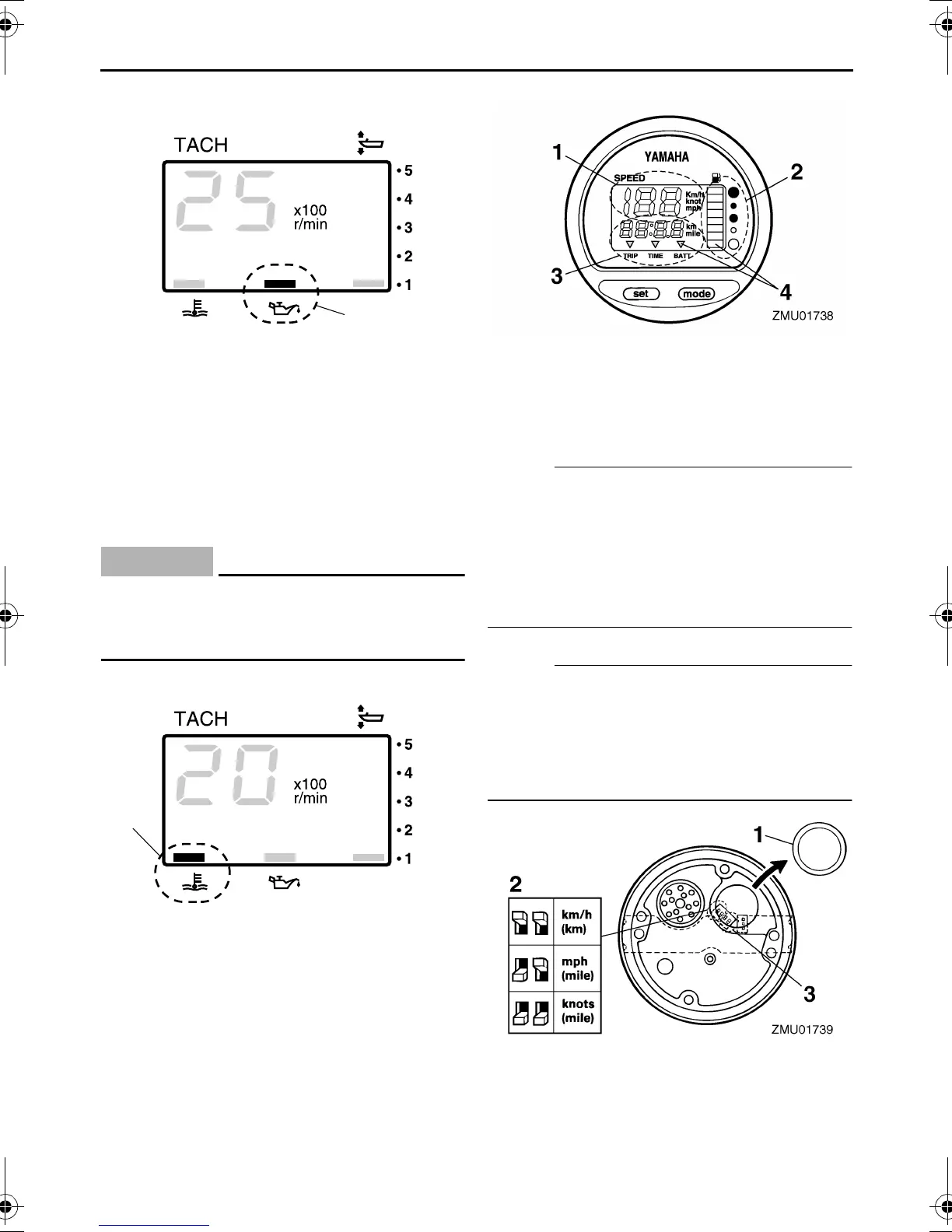

1. Low oil pressure warning indicator
1. Overheat warning indicator
ZMU01736
1
ZMU01737
1
1. Speedometer
2. Fuel gauge
3. Trip meter/clock/voltmeter
4. Warning indicator(s)
1. Cap
2. Selector switch (for speed unit)
3. Selector switch (for fuel sensor)
