YAMA A NATURAL SOUNU STERED CASSCTTC beck K-20
"PEAK LEVEL.
` yo
TWU-MOTUH pLomputer Lontrolled lesrspert

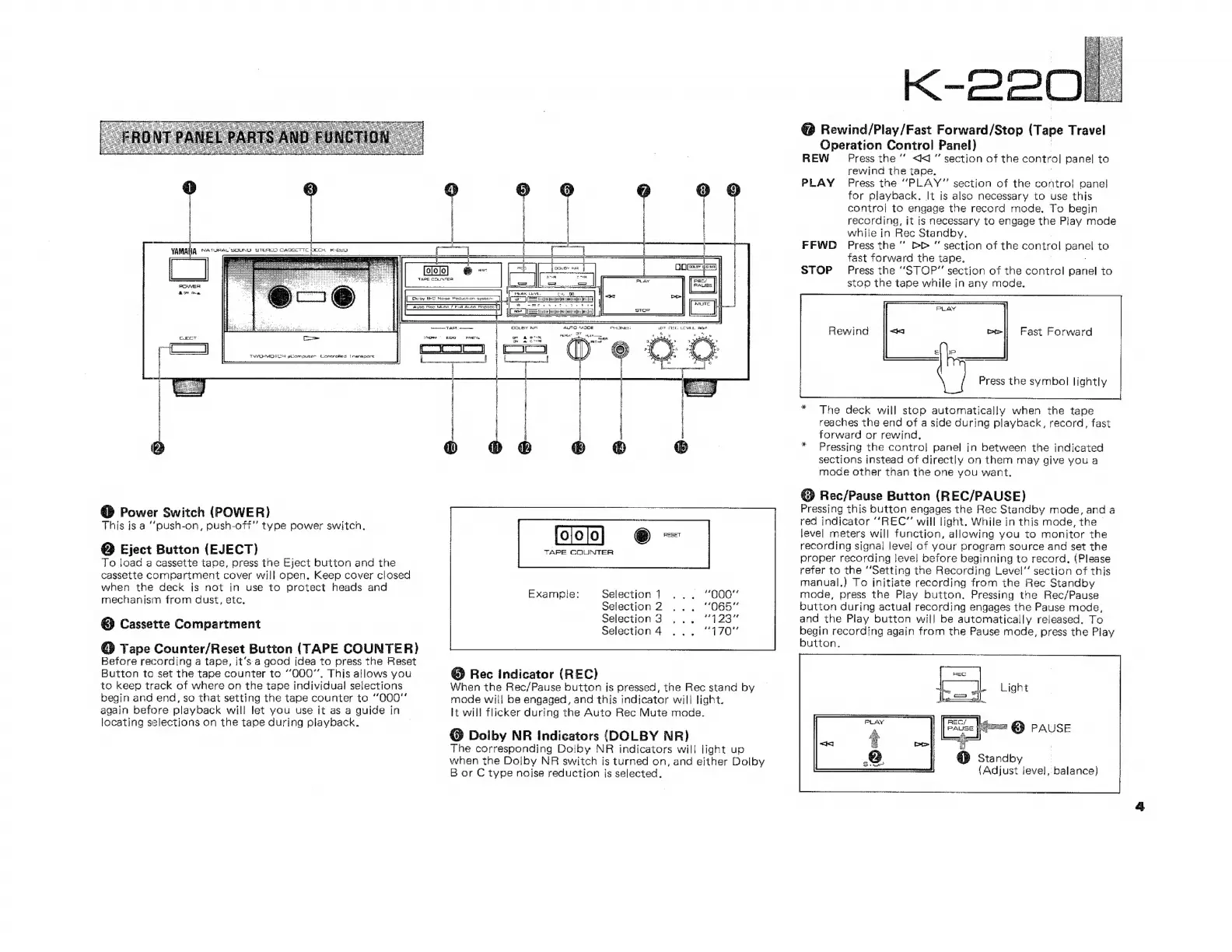

@® Power Switch (POWER)
This is a “‘push-on, push-off” type power switch.
© Eject Button (EJECT)
To load a cassette tape, press the Eject button and the
cassette compartment cover will open. Keep cover closed
when the deck is not in use to protect heads and
mechanism from cust, etc,
@ Cassette Compartment
@ Tape Counter/Reset Button (TAPE COUNTER)
Before recording a tape, it’s a good idea to press the Reset
Button to set the tape counter to “000”. This allows you
to keep track of where on the tape individual selections
begin and end, so that setting the tape counter to “000
again before playback will let you use it as a guide in
locating selections on the tape during playback.
a 6 TIR |
TAPE COUNTER PLAY
=
Co) am
Goby BC Nose Reduction system: weak
eee,
tbe Roe
STOF
COOLEY NA AUTO MDOE PHONE +
Cy ER EES
ræna
Al mr IER 3 > 2 ?
faa f N
(©) ? A a 8
SS ASS Go i Y
$ AF a é ye
es
cesT IG LEVL At
TAPE COUNTER
000”
“065”
n423”
170”
Selection 1
Selection 2
Selection 3
Selection 4
Example:
@ Rec Indicator (REC)
When the Rec/Pause button is pressed, the Rec stand by
mode wil! be engaged, and this indicator wil! light.
It will flicker during the Auto Rec Mute mode.
@ Dolby NR Indicators (DOLBY NR)
The corresponding Dolby NR indicators will light up
when the Dolby NR switch is turned on, and either Dolby
B or C type noise reduction is selected.
K- P21
@ Rewind/Play/Fast Forward/Stop (Tape Travel
Operation Control Panel)
REW Press the “ << ” section of the control panel to
rewind the tape.
PLAY Press the “PLAY” section of the control panel
for playback. It is also necessary to use this
contro! to engage the record mode, To begin
recording, it is necessary to engage the Play mode
while in Rec Standby,
FFWD Press the ’ PP ” section of the control panel to
fast forward the tape.
STOP Press the “STOP” section of the control panel to
stop the tape while in any mode.
Rewind Fast Forward
Press the symbol lightly
The deck will stop automatically when the tape
reaches the end of a side during playback, record, fast
forward or rewind,
Pressing the control panel in between the indicated
sections instead of directly on them may give you a
mode other than the one you want.
© Rec/Pause Button (REC/PAUSE)
Pressing this button engages the Rec Standby mode, and a
red indicator “REC” will light. While in this mode, the
level meters will function, allowing you to monitor the
recording signal level of your program source and set the
proper recording level before beginning to record, (Please
refer to the “Setting the Recording Level” section of this
manual.) To initiate recording from the Rec Standby
mode, press the Play button. Pressing the Rec/Pause
button during actual recording engages the Pause mode,
and the Play button will be automatically released. To
begin recording again from the Pause mode, press the Play
button.
= Standby
(Adjust level, balance)
