Yamaha MT09 User Manual

Periodic maintenance and adjustment
6-13
1
2
3
4
5
6
7
8
9
10
11
12
4. Remove the coolant reservoir cov-
er and coolant reservoir by remov-
ing the bolts and collars.
5. Remove the coolant reservoir cap.
6. Drain the coolant from the coolant
reservoir by turning it upside down.
7. Install the coolant reservoir and its
cover by placing them in the origi-
nal position, and then installing the
collars and bolts.
8. Remove the coolant drain bolt and
its gasket to drain the coolant from
the cooling system.
9. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
10. Install the coolant drain bolt and its
new gasket, and then tighten the
bolt to the specified torque.

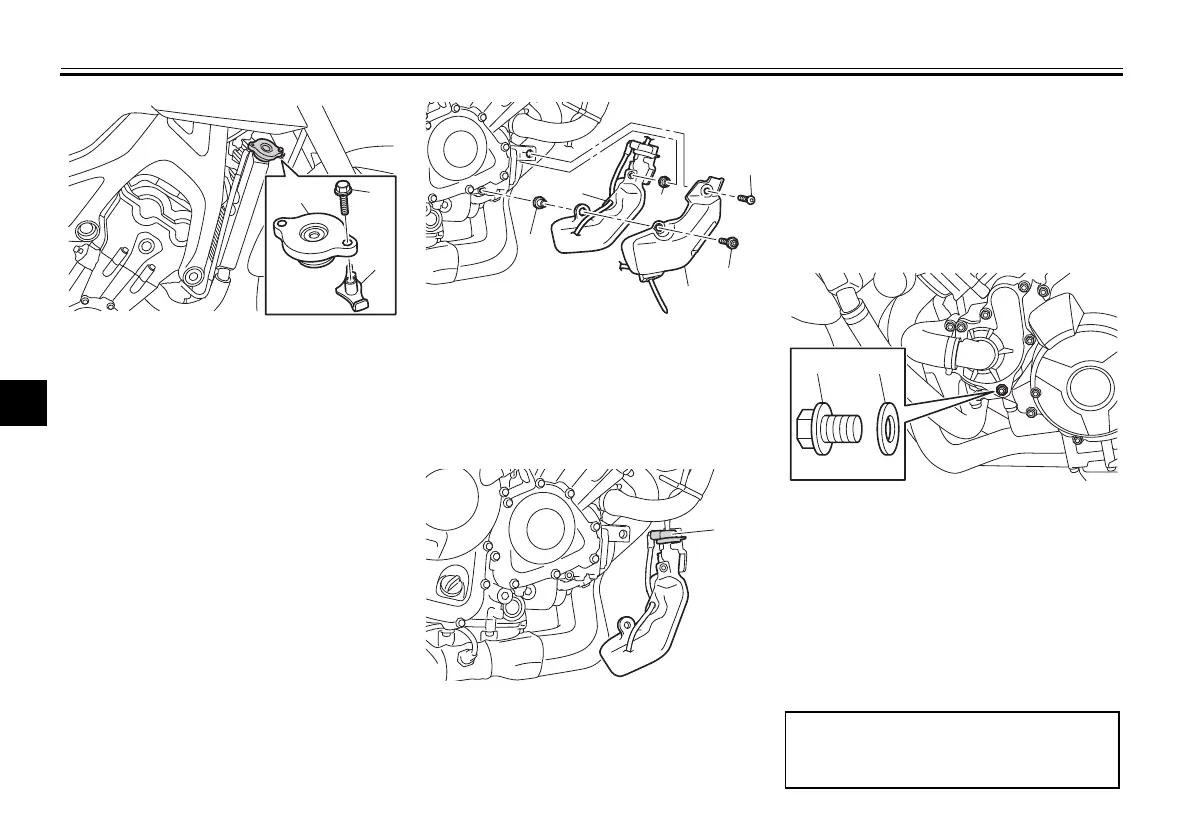

1. Radiator cap
2. Radiator cap retaining bolt
3. Radiator cap retainer
2
1
3
1. Bolt
2. Coolant reservoir cover
3. Coolant reservoir
4. Collar
1. Coolant reservoir cap
1
1
2
4
3
4
1
1. Coolant drain bolt
2. Gasket
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1 2
