Periodic maintenance and adjustment
6-35
1
2
3
4
5
6
7
8
9
10
11
12

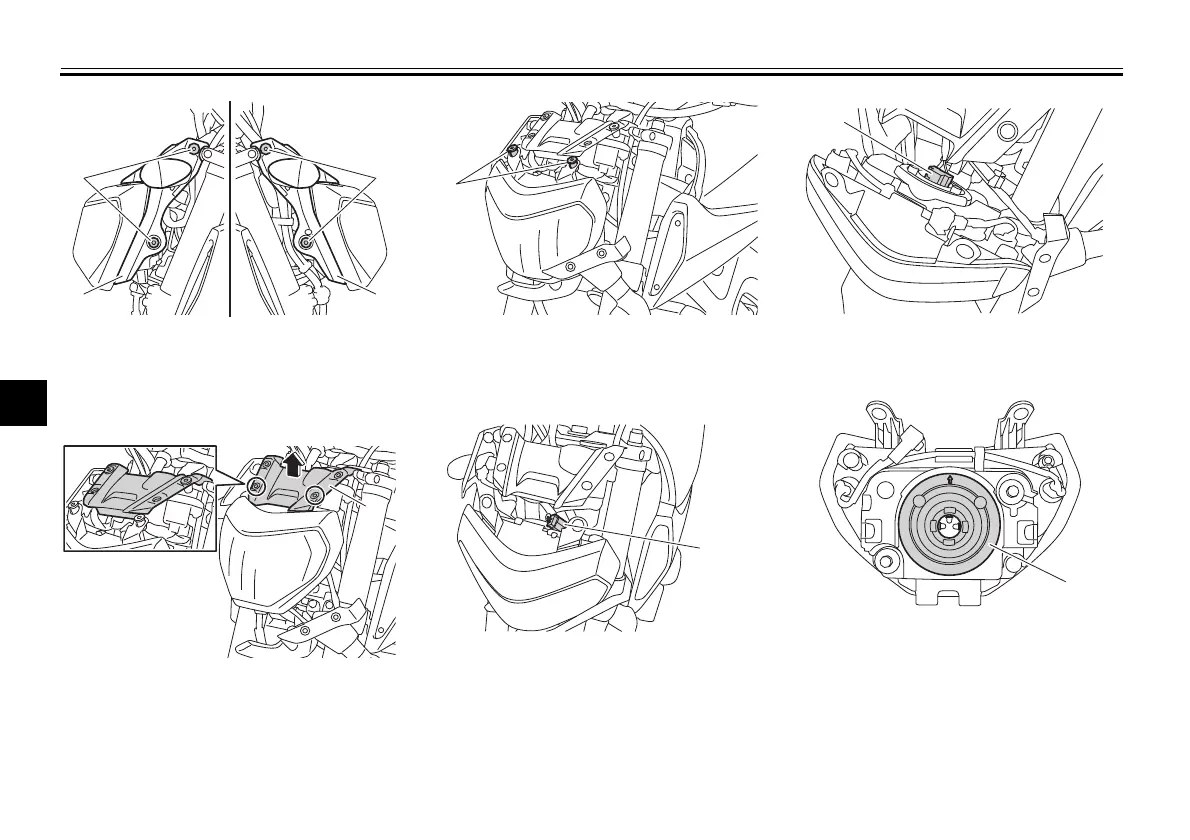

2. Pull up the headlight unit cover to
separate it from the headlight unit.
3. Remove the grommets.
4. Disconnect the auxiliary light cou-
pler.
5. Disconnect the headlight coupler,
and then remove the headlight unit
from the vehicle.
6. Remove the headlight bulb cover.
7. Unhook the headlight bulb holder,
then remove the burnt-out bulb.
1. Bolt
2. Headlight unit side cover
1. Headlight unit cover
1 1
2 2
1
1. Grommet
1. Auxiliary light coupler
1
1
1. Headlight coupler
1. Headlight bulb cover
1
1
