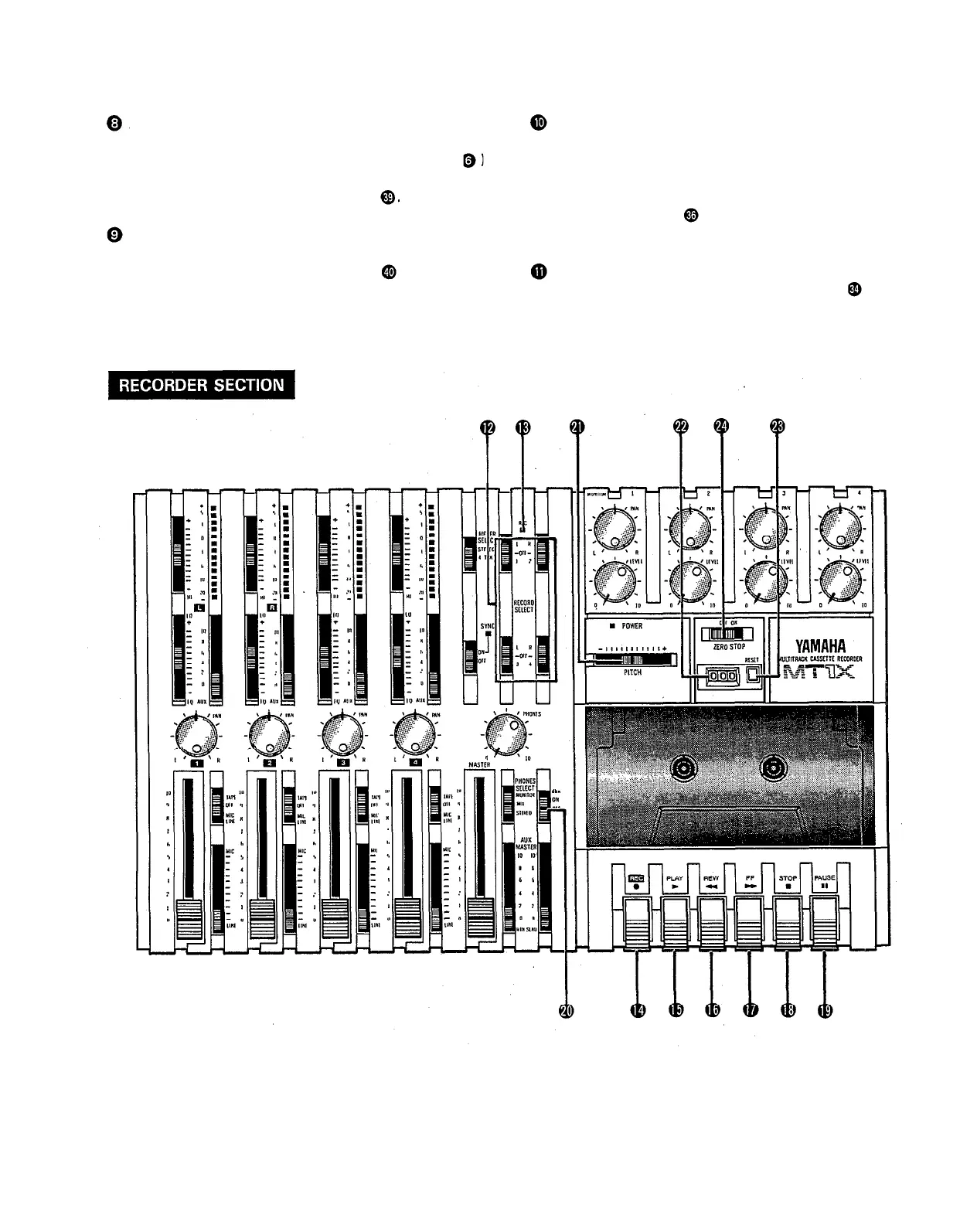

AUX MASTER SEND CONTROL
SYNC SWITCH
Normally left in the “OFF” position, this switch should
be turned “ON” if this unit is to be used for synchron-
ized operation with MIDI products like synthesizers and
rhythm machines. Synchro operation is explained in the
section on Sync jack or in the Sync-Recording sec-
tion on page 33.
This control adjusts the level of the effect-mixed signals
from each channel (adjusted by each AUX control
as well as the AUX signal for monitoring use. The final
output is through the AUX SEND jack
AUX RETURN CONTROL
This control adjusts the input level of effects or sub-
mixers connected to the AUX RTN jack
. The level of
effect in relation to the sound can be set with this
Power Indicator
This indicator lights when the power switch
on the
rear panel is turned on.
control.
7
