Yamaha RX-A760 - Page 149

JIHGFEDCBA
1
2
3
4
5
6
7
150
RX-V681/RX-A760
(6)
(1)
(2)
(7)
(2)
(5)
(1)
1-51
1-51
1-51
1-51
1-51
1-51
1-51
1-64
1-10
1-51
1-69
1-51
1-51
100
101
101
1-103
1-101
1-104
1-104
1-105
1-102
1-100
3
2
3
3
3
1-9
1-8
Ref No. Part No. Description Remarks Markets
1-8 WY194500 FLEXIBLE FLAT CABLE 26P 300mm P=1.25
1-9 WU249700 FLEXIBLE FLAT CABLE 5P 300mm P=1.25
1-10 ZR748900 SHIELD FLEXIBLE FLAT CABLE 24P 310mm P=0.5
1-51 WE774800 BIND HEAD P-TIGHT SCREW 3x8 MFZN2W3
1-64 ZG891700 CABLE CLAMP RBWS-0409E-VO
1-69 V5881100 CUSHION 5x8x25
* 1-100 ZT737800 SHEET WINDOW
1-101 WT823900 BUTTON TUNER
1-102 WT871300 BUTTON PURE DIRECT
1-103 WT843800 BUTTON POWER
1-104 ZA582300 EARTH PLATE OPEARTION
* 1-105 ZU827600 EARTH PLATE
* 2 ZU195300 P.C.B. ASSEMBLY DIGITAL
3 ZQ349800 P.C.B. ASSEMBLY OPERATION U
3 ZQ349900 P.C.B. ASSEMBLY OPERATION C
3 ZQ350000 P.C.B. ASSEMBLY OPERATION RVS
3 ZQ350100 P.C.B. ASSEMBLY OPERATION T
3 ZQ350200 P.C.B. ASSEMBLY OPERATION A
3 ZQ350300 P.C.B. ASSEMBLY OPERATION B
3 ZQ350400 P.C.B. ASSEMBLY OPERATION GF
3 ZQ350500 P.C.B. ASSEMBLY OPERATION LH
100 ZT738500 FRONT PANEL GD
100 ZT738200 FRONT PANEL BL
100 ZT738400 FRONT PANEL TI
101 ZA281500 BUTTON GD
101 ZA281300 BUTTON BL
101 ZA281400 BUTTON TI
* New Parts Finish..... GD: Gold color, BL: Black color, TI: Titanium color

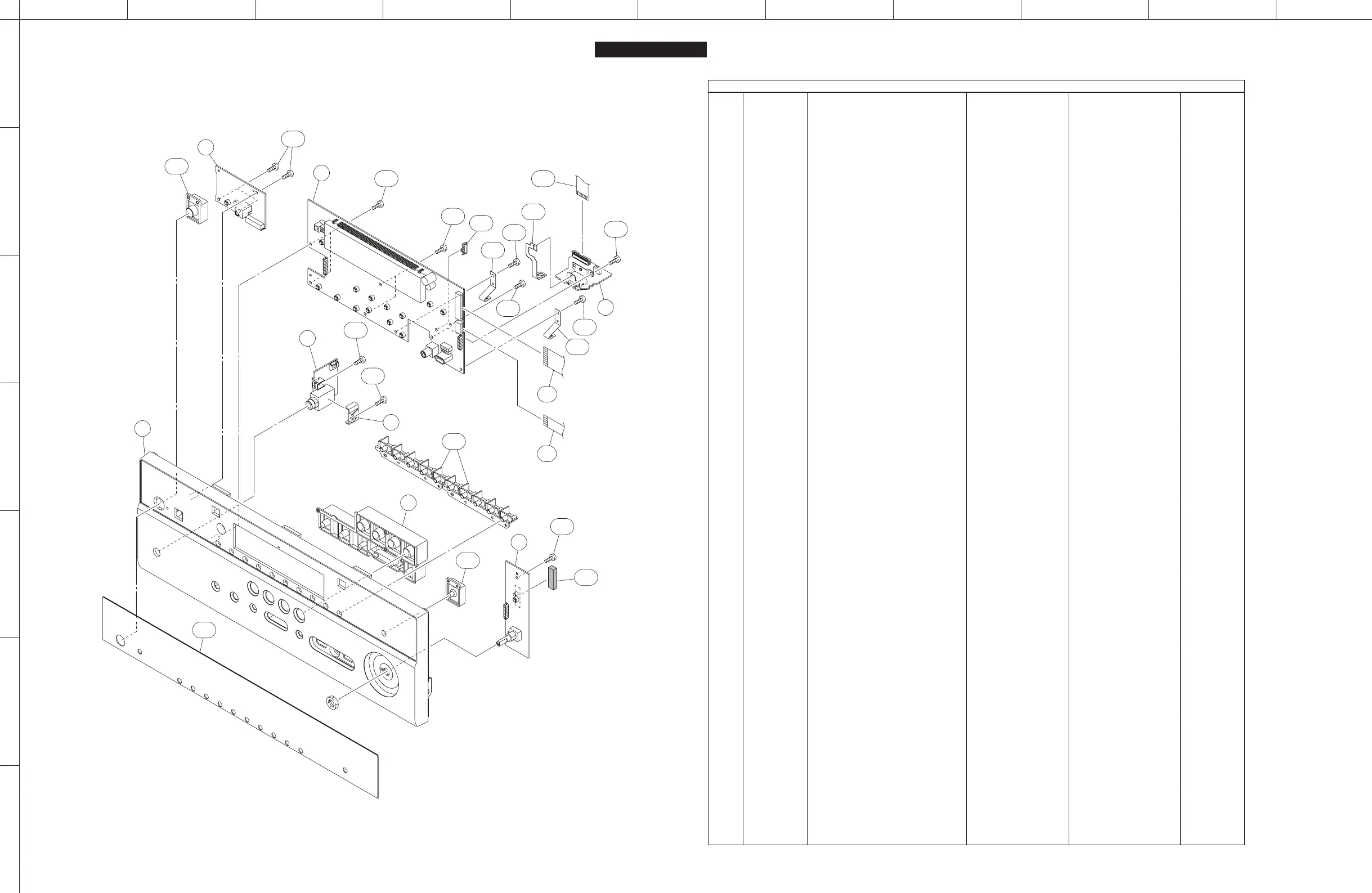

• FRONT PANEL UNIT
RX-V681
