Yamaha RX-V681 - Page 153

JIHGFEDCBA
1
2
3
4
5
6
7
154
RX-V681/RX-A760
RX-A760
(2)
(1)
(5)
(7)
(1)
(11)
(12)
2
(2)
(10)
1-50
1-50
1-50
1-50
1-50
1-10
1-63
1-63
1-50
1-50
1-50
1-58
1-50
1-64
3
3
3
(6)
3
3
3
3
202
203
200
100
101
200
201
1-201
1-101
1-100
1-103
1-102
1-9
1-8
Ref No. Part No. Description Remarks Markets
1-8 WP242200 FLEXIBLE FLAT CABLE 26P 250mm P=1.25
1-9 WS162400 FLEXIBLE FLAT CABLE 5P 250mm P=1.25
1-10 ZR748900 SHIELD FLEXIBLE FLAT CABLE 24P 310mm P=0.5
1-50 WE774300 BIND HEAD B-TIGHT SCREW 3x8 MFZN2W3
1-58 WF266600 BIND HEAD P-TIGHT SCREW 3x8 MFZN2B3
1-63 VQ368600 PUSH RIVET P3555-B
1-64 ZG891700 CABLE CLAMP RBWS-0409E-VO
* 1-100 ZT738000 WINDOW SHEET RX-A760
1-101 WW980100 BUTTON STANDBY/ON
1-102 WW980500 BUTTON PURE DIRECT
1-103 WU155600 BUTTON LENS
1-201 WW983400 BUTTON TUNER
* 2 ZU195300 P.C.B. ASSEMBLY DIGITAL
3 ZQ360300 P.C.B. ASSEMBLY OPERATION U
3 ZQ360400 P.C.B. ASSEMBLY OPERATION C
* 3 ZQ361000 P.C.B. ASSEMBLY OPERATION R
3 ZQ360500 P.C.B. ASSEMBLY OPERATION T
3 ZQ360600 P.C.B. ASSEMBLY OPERATION A
3 ZQ360800 P.C.B. ASSEMBLY OPERATION GF
3 ZQ360900 P.C.B. ASSEMBLY OPERATION L
* 100 ZT738600 FRONT PANEL
101 WW961500 ESCUTCHEON SCENE
200 ZP860900 BUTTON CASE
201 WW981600 ESCUTCHEON VOLUME
202 WW981900 ESCUTCHEON INPUT
203 WW983100 BUTTON SCENE
* New Parts Finish..... GD: Gold color, BL: Black color, TI: Titanium color

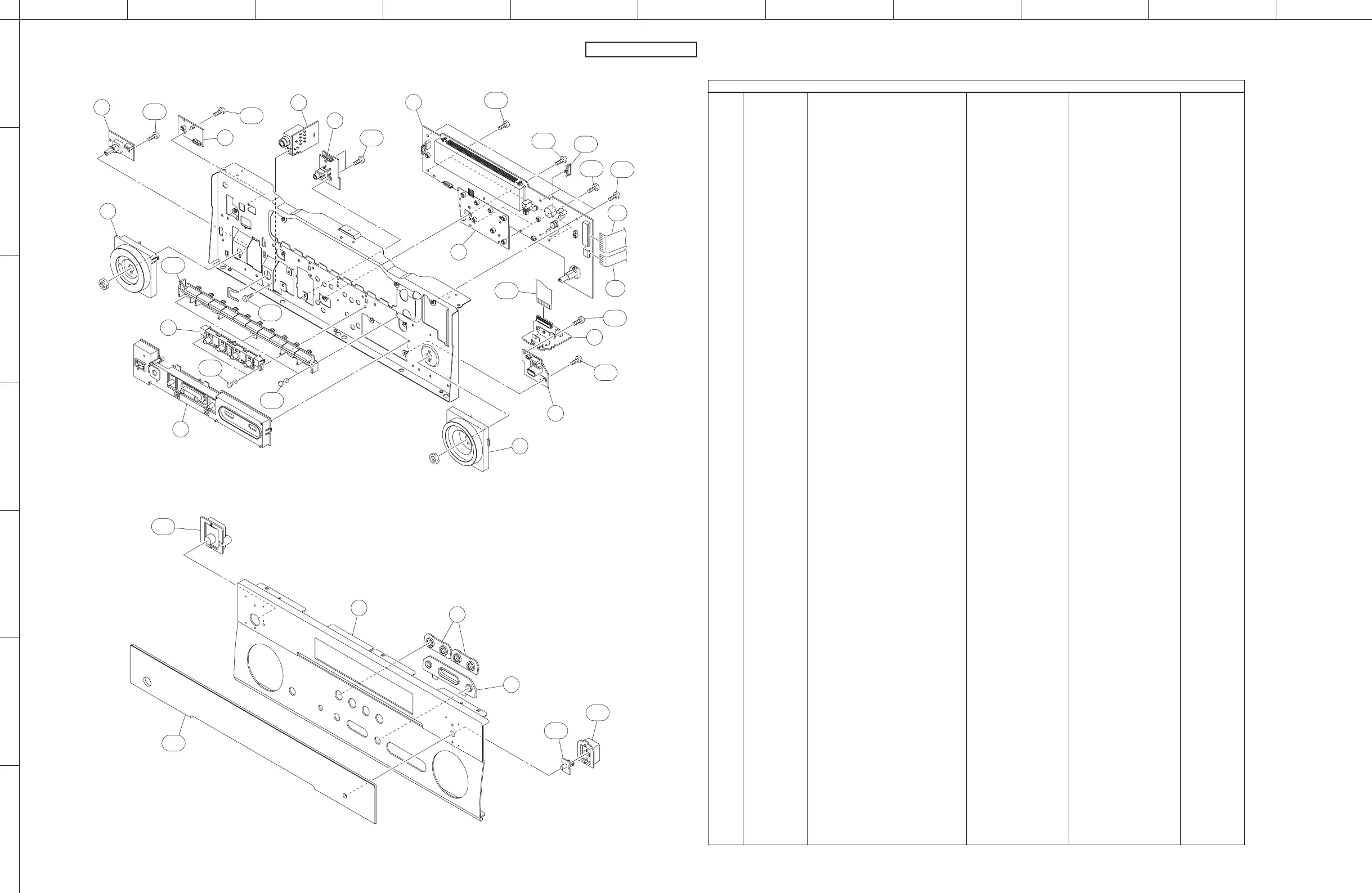

• FRONT PANEL UNIT and SUB-CHASSIS UNIT
