Yamaha TDM900 R User Manual

–2–

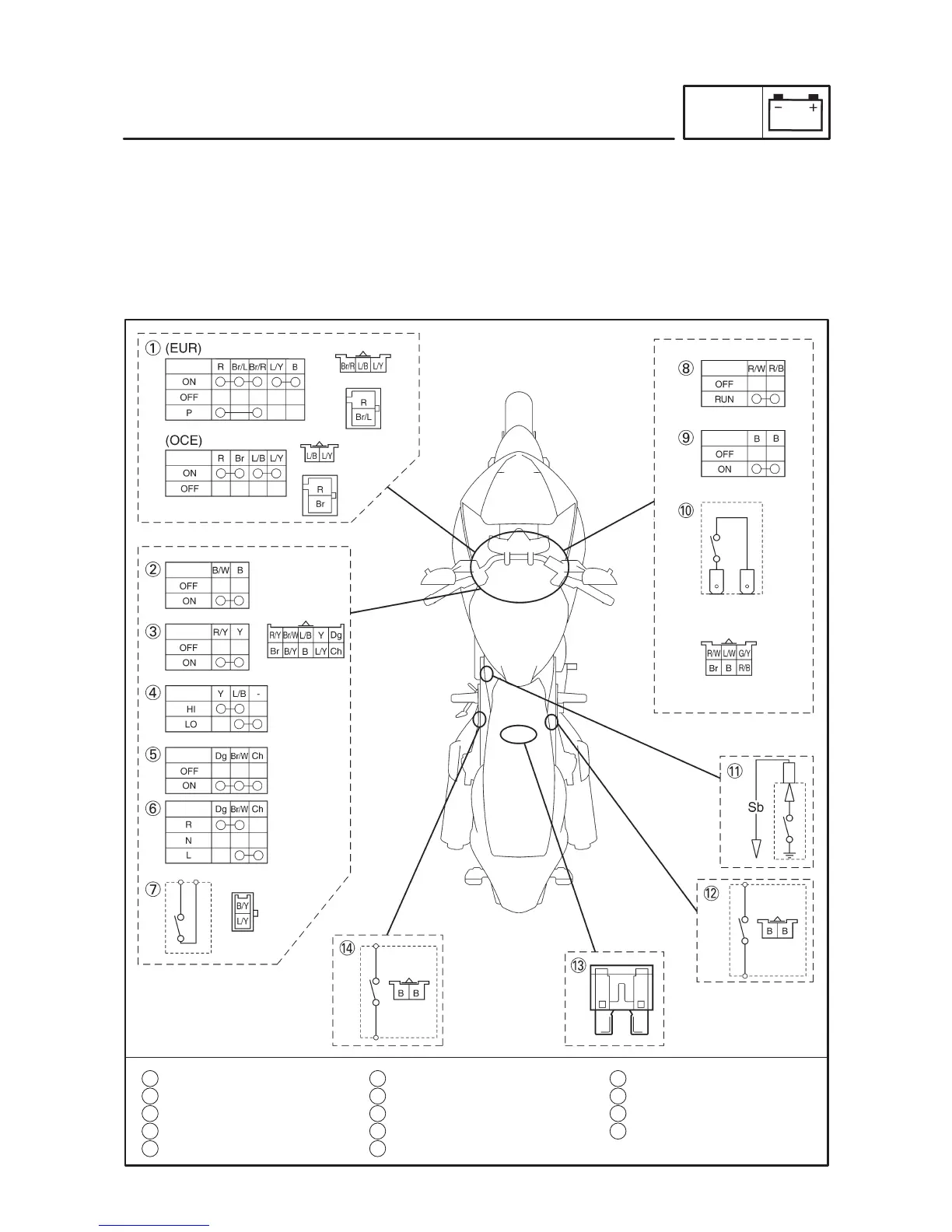

1 Main switch
2 Horn switch
3 Pass switch
4 Dimmer switch
5 Hazard switch
6 Turn signal switch
7 Clutch switch
8 Engine stop switch
9 Start switch
10 Front brake light switch
11 Neutral switch
12 Rear brake light switch
13 Fuses
14 Sidestand switch
CHECKING THE SWITCHES
ELEC
EAS00731
ELECTRICAL
CHECKING THE SWITCHES
Check each switch for damage or wear, proper connections, and also for continuity between the termi-
nals. Refer to “CHECKING SWITCH CONTINUITY”.
Damage/wear ! Repair or replace.
Improperly connected ! Properly connect.
Incorrect continuity reading ! Replace the switch.

Yamaha TDM900 R Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 5-valve, parallel twin
Displacement	897 cc
Bore x Stroke	92.0 mm x 67.5 mm
Compression Ratio	10.4:1
Fuel System	Fuel Injection
Starter System	Electric
Transmission	6-speed
Final Drive	Chain
Rear Tire	160/60 ZR17
Length	2, 180 mm
Height	1, 290 mm
Seat Height	825 mm
Wheelbase	1, 485 mm
Ground Clearance	160 mm
Fuel Capacity	20 liters
Dry Weight	190 kg
Wet Weight	223 kg
Maximum Power	86.2 hp (63.5 kW) @ 7, 500 rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm
Front Brake	Dual disc
Rear Brake	Single disc
Front Tire	120/70 ZR17
