Yamaha VXS: VXR User Manual

Operation
70
slows down, the watercraft will no longer
respond to handlebar input until you ap-
ply throttle again or you reach trolling
speed.
At trolling speed, the watercraft can be
turned gradually by handlebar position
alone using just the amount of thrust
available at idle.

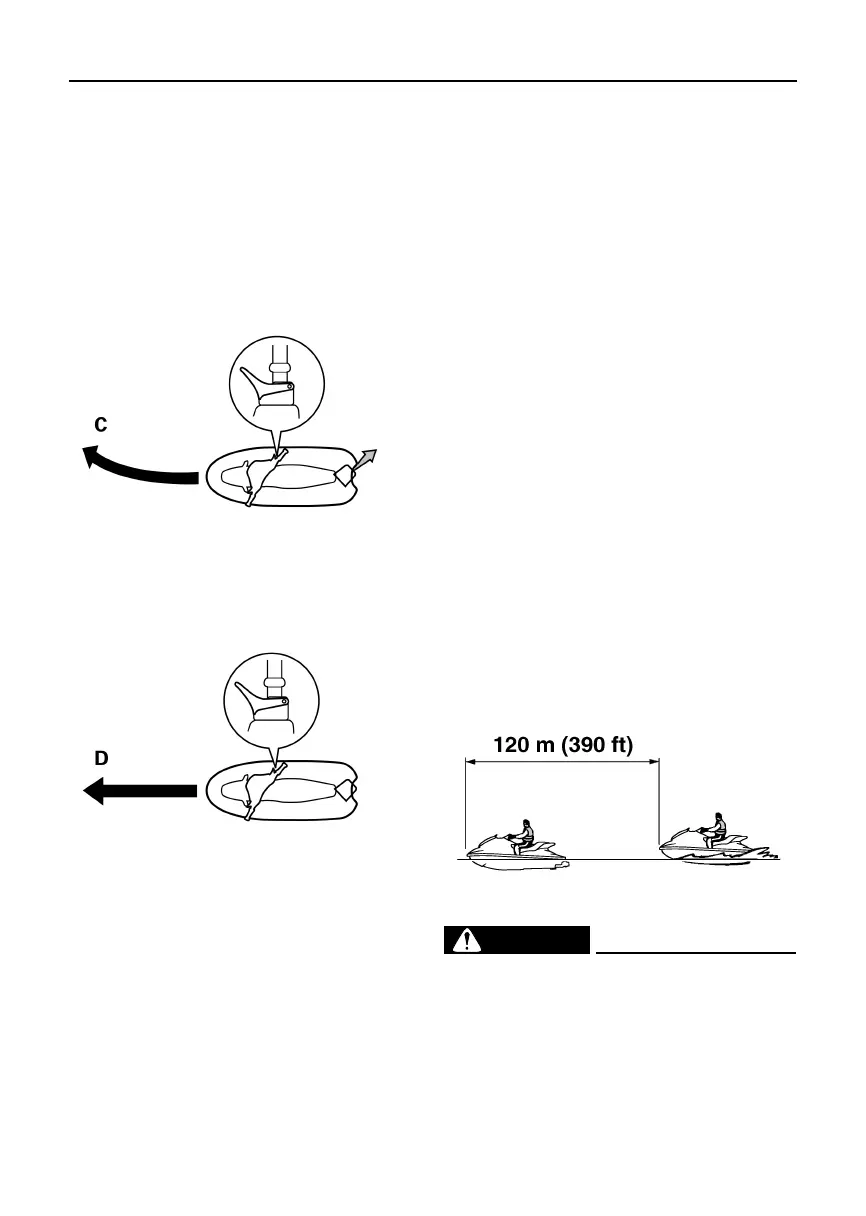

D. If the engine is stopped while riding, there
is no thrust. The watercraft will go straight
even though the handlebars are turned.
You need throttle to steer.
This model is equipped with the Yamaha En-
gine Management System (YEMS) that in-
cludes an off-throttle steering (OTS) system.
It will activate at planing speeds should you
attempt to steer the watercraft after releasing
the throttle lever (see condition C above).
The OTS system assists in turning by continu-
ing to supply some thrust while the watercraft
is decelerating, but you can turn more sharply
if you apply throttle while turning the handle-
bars. The OTS system does not function be-
low planing speeds or when the engine is off.
Once the engine slows down, the watercraft
will no longer turn in response to handlebar in-
put until you apply throttle again or you reach
trolling speed.
EJU41980
Stopping the watercraft
The watercraft is not equipped with a sepa-
rate braking system. It is stopped by water re-
sistance when the throttle lever is released.
From full speed, the watercraft comes to a
complete stop in approximately 120 m (390 ft)
after the throttle lever is released or the en-
gine is stopped, although this distance will
vary depending on many factors, including
gross weight, water surface conditions, and
wind direction. The watercraft slows down as
soon as the throttle lever is released, but will
coast for a distance before fully stopping. If
you are not sure you can stop in time before
hitting an obstacle, apply throttle and turn in
another direction.
WARNING
EWJ00744
● Allow adequate stopping distance.
● Take early action to avoid collisions. Re-
member, watercraft and other boats do
not have brakes.
● Operate defensively at safe speeds and
keep a safe distance away from people,
UF2M10E0.book Page 70 Wednesday, July 14, 2010 5:02 PM

Yamaha VXS: VXR Specifications

General

Rider Capacity	1-3 persons
Starting System	Electric
Lubrication System	Wet Sump
Trim Method	Manual
Model	VXR
Engine Type	4-stroke, in-line 4-cylinder
Engine	Yamaha Marine Engine
Displacement	1812cc
Width	1, 170 mm (46.1 in)
Bore x Stroke	86 mm x 78 mm
Fuel Delivery	Electronic Fuel Injection
Fuel Tank Capacity	18.5 gal
Warranty	1-year limited warranty
