FRONT WHEEL
4-3
EAS1SM5123
FRONT WHEEL

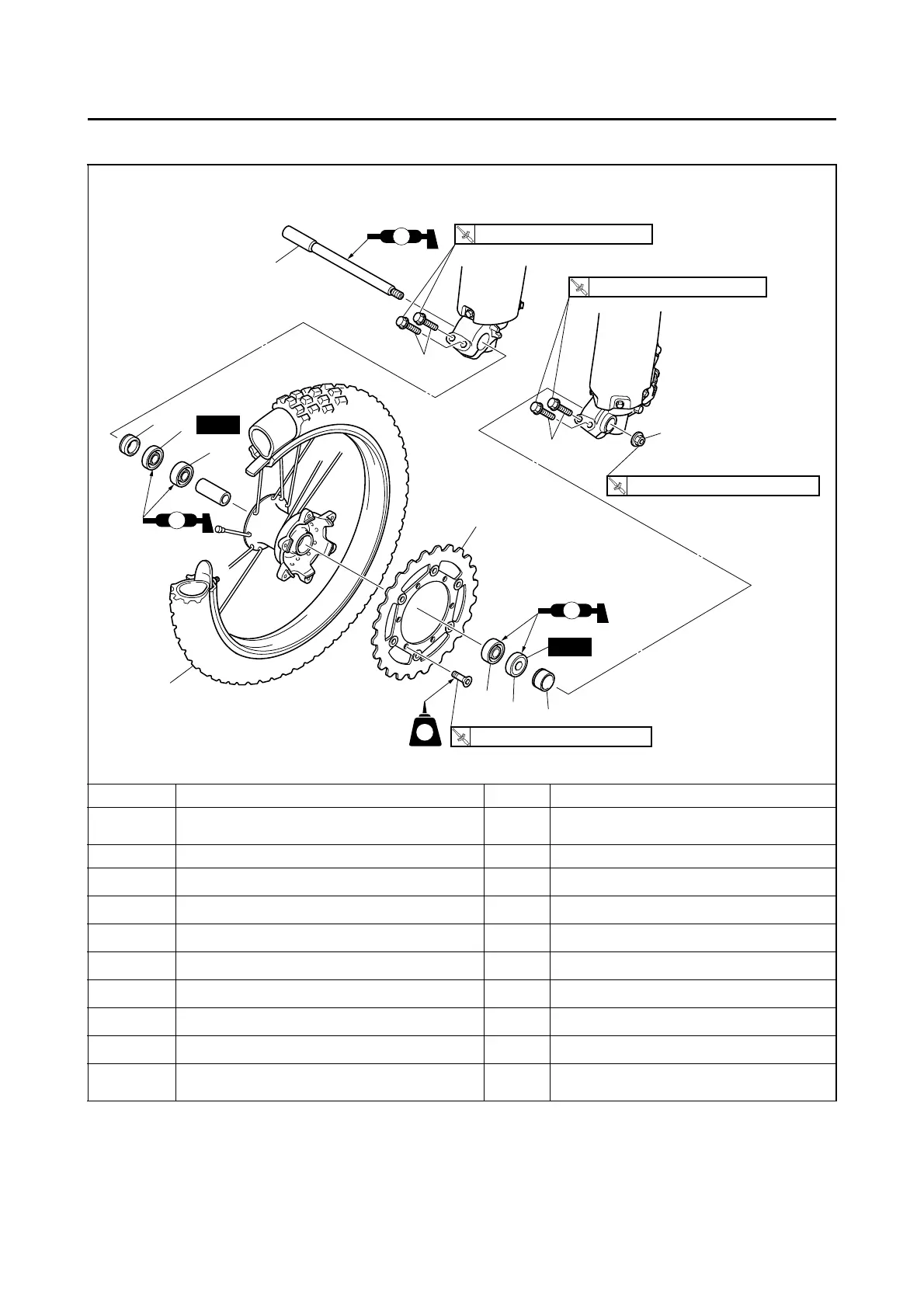

Removing the front wheel
Order Part name Q’ty Remarks
Use a suitable stand to raise the front wheel
off the ground.
1 Front wheel axle pinch bolt 4 Loosen.
2 Front wheel axle nut 1
3 Front wheel axle 1
4 Front wheel 1
5Collars 2
6Oil seals 2
7 Bearing 2
8 Brake disc 1
For installation, reverse the removal proce-
dure.
12 Nm (1.2 m
•
kgf, 8.7 ft
•
Ibf)
T
.R
.
New
New
LT
LS
LS
LS
5
7
6
5
6
7
(6)
8
1
2
1
3
21 Nm (2.1 m
•
kgf, 15 ft
•
Ibf)
T
.
R
.
21 Nm (2.1 m
•
kgf, 15 ft
•
Ibf)
T
.R
.
4
115 Nm (11.5 m
•
kgf, 83 ft
•
lbf)
T
.R
.

Yamaha YZ250F Specifications

General

Displacement	250cc
Bore x Stroke	77.0 mm x 53.6 mm
Final Drive	Chain
Suspension / Rear	KYB® single shock; fully adjustable, 12.5-in travel
Brakes / Front	Hydraulic single disc brake, 270mm
Brakes / Rear	Hydraulic single disc brake, 240mm
Fuel Capacity	1.6 gal
Engine Type	Liquid-cooled, DOHC, 4-stroke
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	5-speed; multiplate wet clutch
Suspension / Front	KYB® Speed-Sensitive System inverted fork; fully adjustable, 12.2-in travel
Tires / Front	80/100-21
