WATER PUMP
6-7

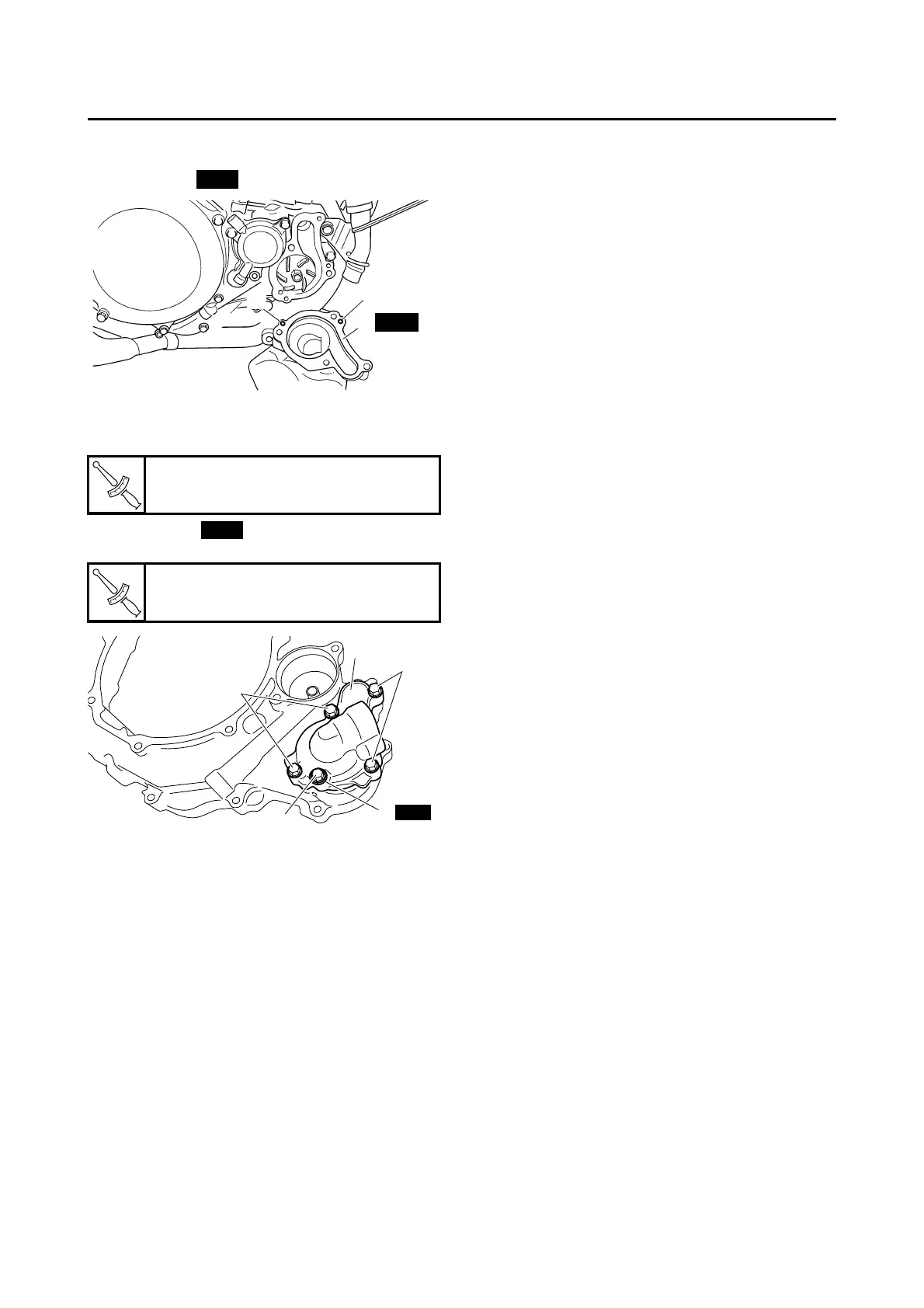

2. Install:
• Dowel pin “1”
• Gasket “2”
3. Install:
• Water pump housing “1”
• Water pump housing bolt “2”
• Washer “3”
• Coolant drain bolt “4”
Water pump housing bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Coolant drain bolt
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
New
2
1
1
New
T
R
.
.
New
T
R
.
.
2
2
4
3
1
New

Yamaha YZ250F Specifications

General

Displacement	250cc
Bore x Stroke	77.0 mm x 53.6 mm
Final Drive	Chain
Suspension / Rear	KYB® single shock; fully adjustable, 12.5-in travel
Brakes / Front	Hydraulic single disc brake, 270mm
Brakes / Rear	Hydraulic single disc brake, 240mm
Fuel Capacity	1.6 gal
Engine Type	Liquid-cooled, DOHC, 4-stroke
Fuel Delivery	Fuel injection
Ignition	TCI
Transmission	5-speed; multiplate wet clutch
Suspension / Front	KYB® Speed-Sensitive System inverted fork; fully adjustable, 12.2-in travel
Tires / Front	80/100-21
