Transmission Oil Level
Read the transmission hydraulic oil
gauge window (A) on the rear side of
the transmission case. The transmission
hydraulic oil level should be in the middle
of gauge window.
(A)
Too much
(B)
Standard level
(C)
Insufficient
Engine Oil Level
Remove the dipstick (A) and wipe the
dipstick with a clean rag. Insert the dipstick
completely and remove it to check the oil
level. If the engine oil level is low, add the
specied engine oil from the engine oil
ller (B) until the engine oil level is in the
operating range on the dipstick.
Air Cleaner
Air cleaner (A) can be accessed without
tools. Release the two latch hooks on the air
cleaner canister cover and remove the cover.
Never wash the lter or attempt to clean the
lter by tapping the lter against another
object. Apply compressed air from inside of
the element to blow away the dust. Clean
every 100 hours or if necessary, replace
every 1 year or if necessary.
Genuine Parts: 1A8330-05110, ELEMENT ASSY
Alternator / Fan Belt
Turn off engine and disconnect battery cable
for safety. Using the thumb, gently apply
pressure to the midpoint (A) of the alternator/
fan belt between the pulleys. Check whether
the alternator/fan belt deects inward by
approximately 0.4 to 0.6 in. (10 to 15 mm).
If the deection is not as specied, adjust the
tension of the alternator/fan belt. Adjust every
50 hours, replace if necessary.
(A) 0.4 to 0.6 in. (10 to 15 mm)
(B) Adjusting bolt
(C) Mounting bolt
Genuine Parts:
25152-003500, V-BELT, A35 (SA221);
25152-003600, V-BELT, A36 (SA324/424)
Radiator Screen & Coolant
Radiator Screen: Raise the hood. Pull out the
radiator cooling screen (A). Remove straw and
dust attached from the radiator cooling screen.
Coolant: Check the coolant level of the reservoir
tank (B). It should be between the upper and lower
limits marked on it when the engine is warm. If the
engine is cold, the coolant level must be at the
low line on the reserve tank. When necessary, add
a pre-diluted coolant with an antifreeze to water
ratio that suits the local climate*.
Grease Points
Extremely Wet or Muddy Conditions:
Lubricate the grease fittings once every
10 operating hours or once a day,
whichever comes first.
All Other Conditions
Lubricate the grease fittings once every
50 operating hours, whichever comes first.
Type of grease: General
all-purpose grease
NLGI GRADE No.2
(A) Right tie rod end
(B) Left tie rod end
(C) Forward drive pedal rod end
(D) Reverse drive pedal rod end
READ
OPERATION
MANUAL
READ
OPERATION
MANUAL
READ
OPERATION
MANUAL
READ
OPERATION
MANUAL
READ OPERATION
MANUAL
READ OPERATION
MANUAL
PAGE
14-19
14-20
(A) (B)
FULL
LOW
UPPER LIMIT
LOWER LIMIT
OUT OF LIMIT
PAGE
14-4
PAGE
14-24
PAGE
14-18
PAGE
14-5
PAGE
14-5
(A) Outer Filter
(B) Compressed Air
Always turn off engine and allow the machine to cool down completely before accessing the engine, muffler, radiator or other hot components.

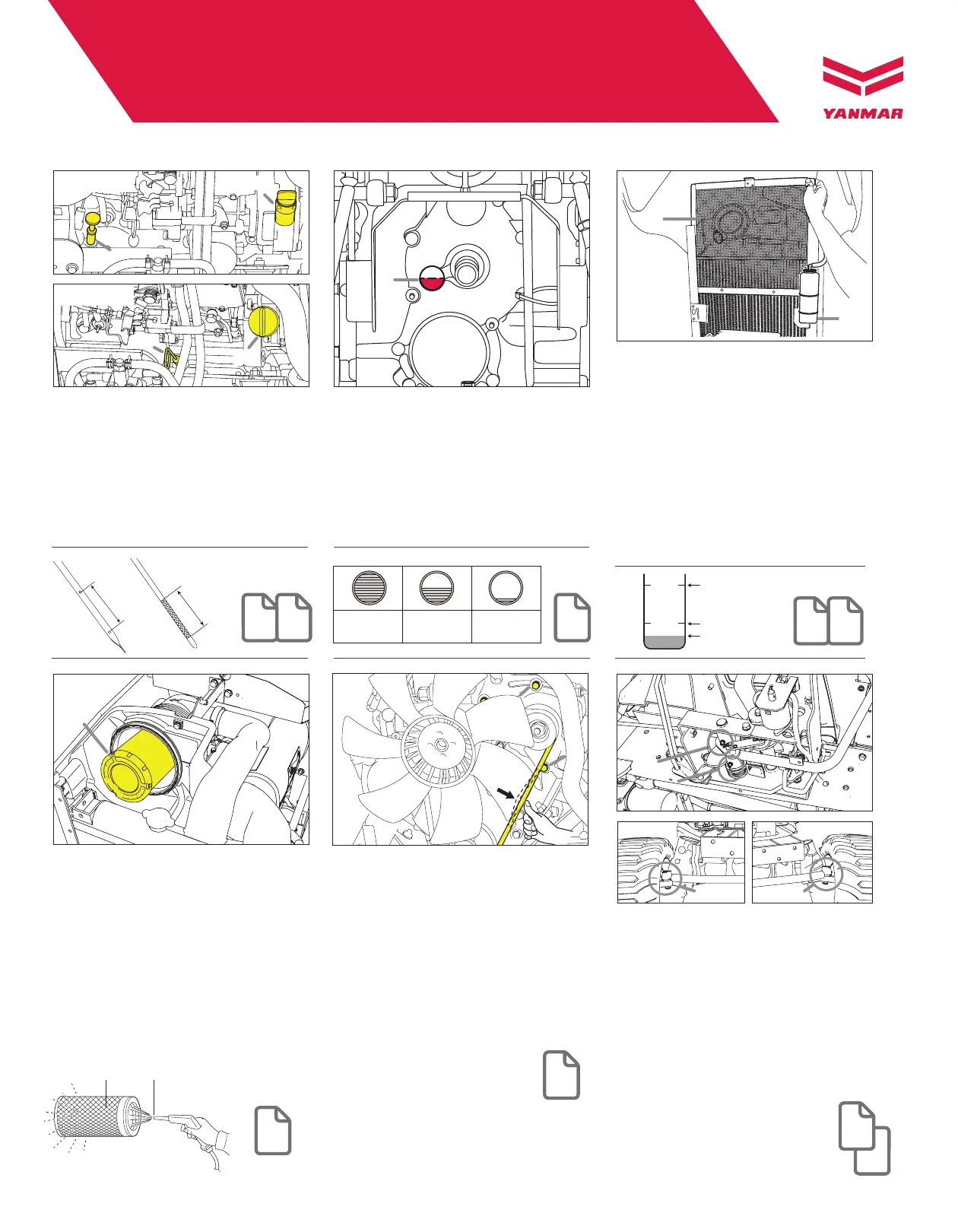

YANMAR COMPACT TRACTOR | QUICK OPERATION & MAINTENANCE GUIDE
DAILY CHECK ITEMS
SAFETY: 1–Engine off. 2–Battery disconnected.
SA221
SA324/424
(A)
(A)
(B)
(A)
(B)
(B)
UPPER UPPER
SA221
LOWER LOWER
(A)
(A)
(C)
(B)
(A)
(C)
(D)
(B)
(A)

Yanmar SA221 Specifications

General

Engine Type	Diesel
Engine Power	21.5 HP
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
Transmission	Hydrostatic
