16

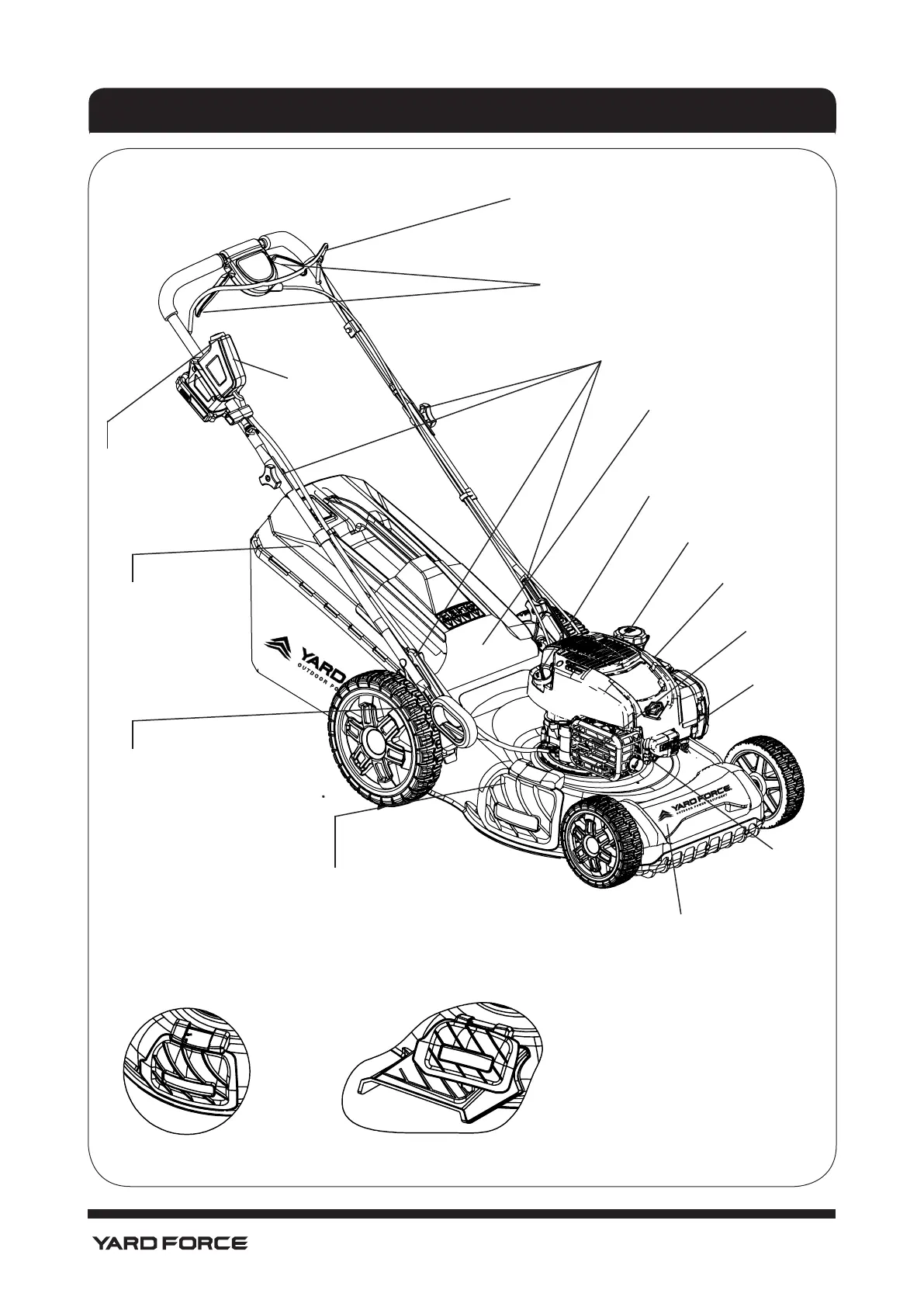

KNOW YOUR LAWN MOWER
Mulch Door Side Discharge Deector
Operator Presence Control Bar
Must be held down to the handle to start the
engine or engage the blades. Release the
bar to stop the blade/engine.
Drive Control Lever
Used to engage self-propelled rear
motion of the lawn mower.
Knobs
Battery Bay
Start Button
Used to start the engine.
Grass Catcher
With full indicator
Height Adjuster
Used to adjust cutting height
of the lawn mower.
Housing
Front bumper handle can
be used to lift mower
during transport.
Spark Plug
Rear Door
Rear door must be
present and closed if bag
is not attached.
Engine Oil Cap with
Dipstick
Gasoline Filler Cap
Muffler
Mulch Door
Allows conversion to discharge or
bagging operations.
NOTE: To convert to side discharge,
install deflector.
Air Filter
Fig. 11
Washing Port
