13” (33 CM) CORDLESS GRASS TRIMMER
1
Quick Start Guide

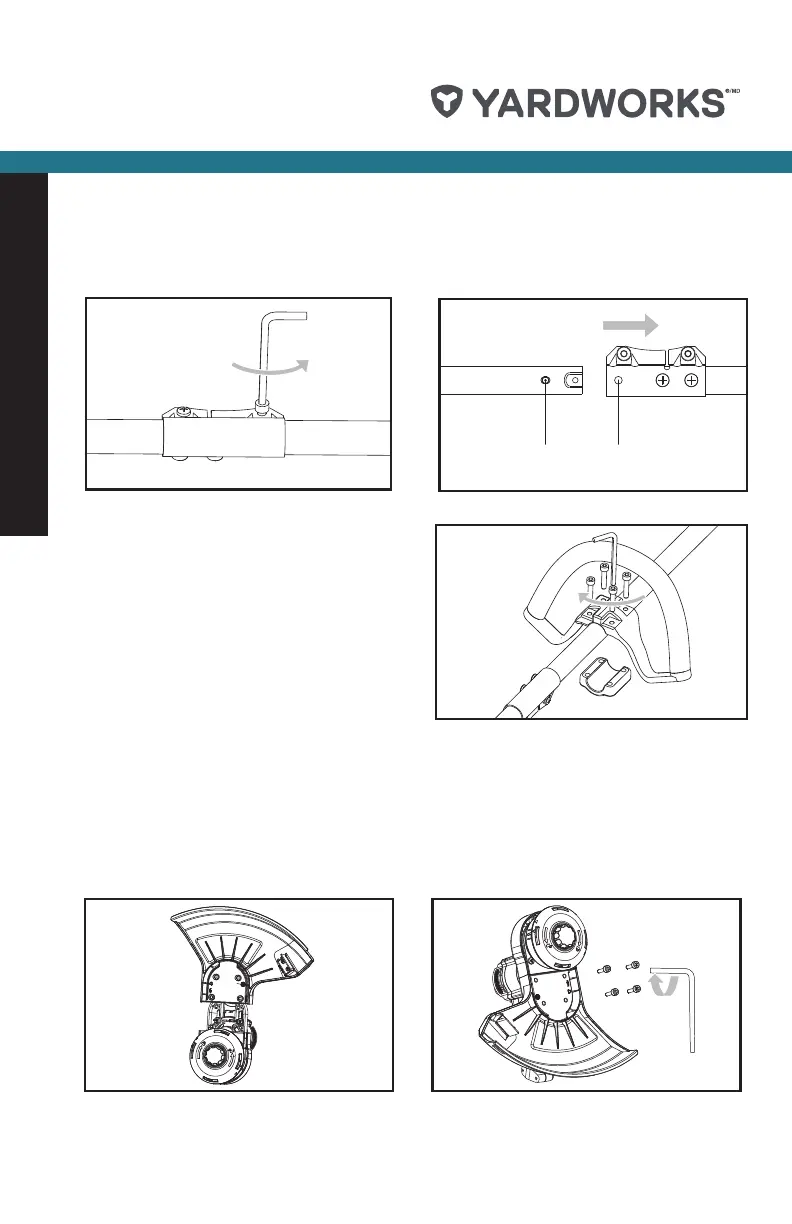

1. ASSEMBLING THE UPPER SHAFT AND LOWER SHAFT
a) Loosen the bolt on the connector. (See Fig. A1.)
b) Align and insert the lower shaft directly into the upper shaft. (See Fig. A2.)
c) Position the locking/release button into the guide recess. (See Fig. A2.)
2. ASSEMBLING THE AUXILIARY HANDLE
Place the auxiliary handle onto the shaft
from the top, align with the anti-vibration
circle on the shaft, screw into four holes, and
tighten it with the wrench. (See Fig. B.)
Locking/
Release knob
Guide recess
A1
B
C1 C2
Locking/
Release knob
Guide recess
A2
* This information is provided for your convenience. It does not replace the instruction manual
and safety instructions. The manual and safety instructions need to be read and understood in
their entirety.
3. ASSEMBLING THE SAFETY GUARD
a) Attach the safety guard to the trimmer head. Align the guard so it slides into the slots located
on the trimmer head. (See Fig. C1.)
b) Secure the safety guard onto the trimmer head with the bolts provided by using the wrench.
(See Fig. C2.)
c) Please put the wrench back to the top notch of grass trimmer after use, so it will not get lost.
(See Fig. C3.)
To Next Page
