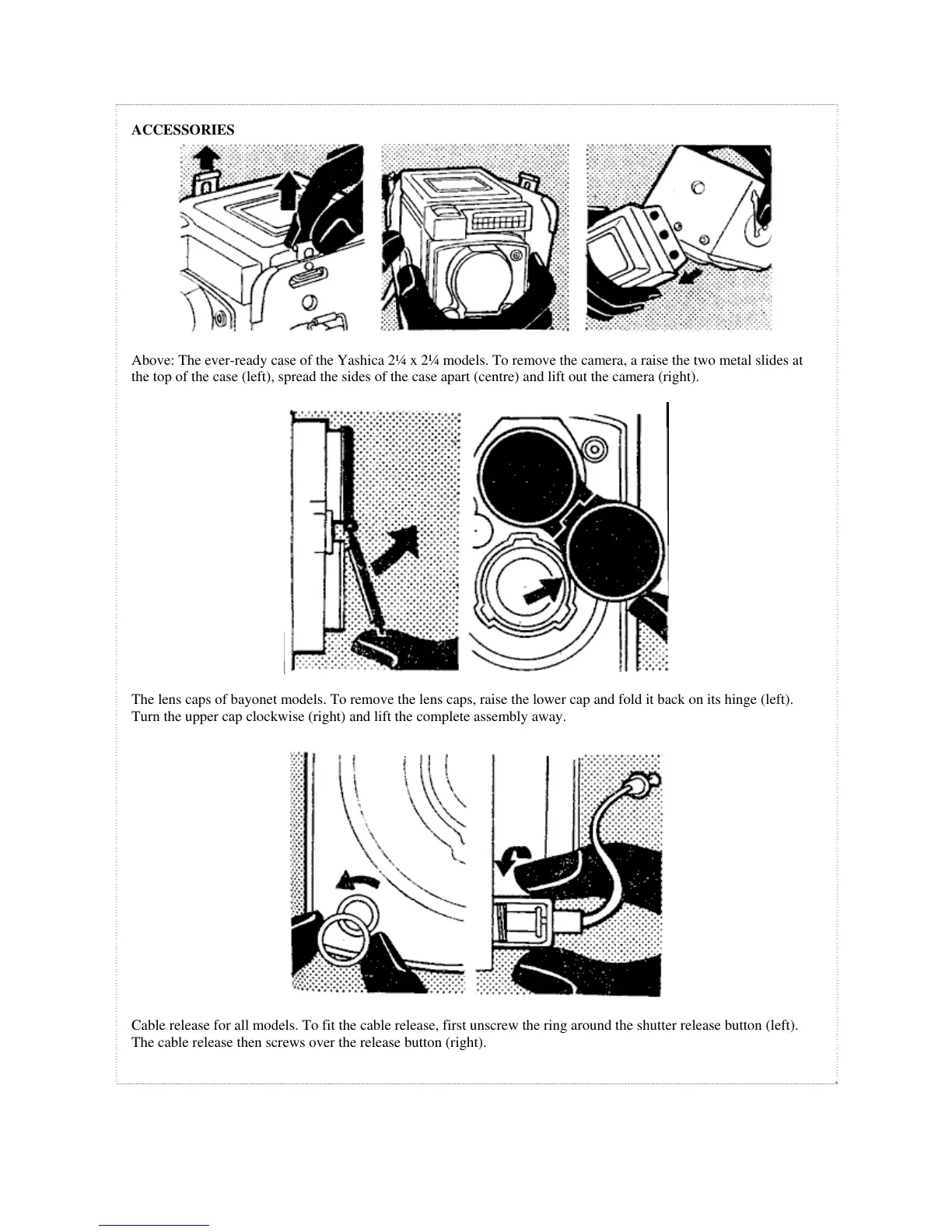

ACCESSORIES
Above: The ever-ready case of the Yashica 2¼ x 2¼ models. To remove the camera, a raise the two metal slides at
the top of the case (left), spread the sides of the case apart (centre) and lift out the camera (right).
The lens caps of bayonet models. To remove the lens caps, raise the lower cap and fold it back on its hinge (left).
Turn the upper cap clockwise (right) and lift the complete assembly away.
Cable release for all models. To fit the cable release, first unscrew the ring around the shutter release button (left).
The cable release then screws over the release button (right).
