| Deployment and Connection | 45
• VCM34 supports 360-degree audio pickup at a radius of up to 20ft/6m and you can cascade up to 4
VCM34 units.

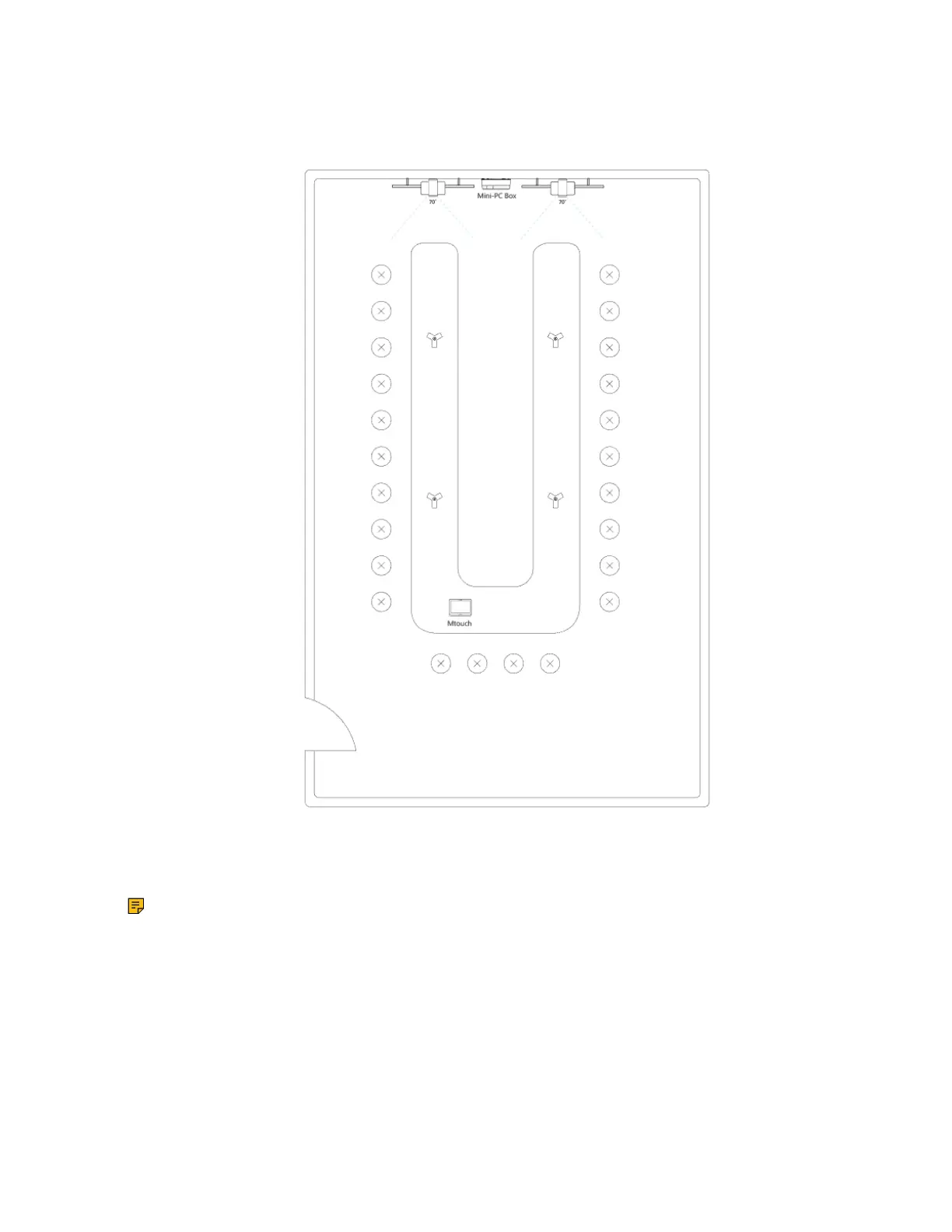

For extra-large meeting room (18-30 people)
• The distance between the two VCM34s on both sides is 10ft/3m.
• VCM34 supports 360-degree audio pickup at a radius of up to 20ft/6m and you can cascade up to 4
VCM34 units.
Note: The MTouch needs to be placed in a position facing the door.
Camera Installation
You can mount UVC84 on a flat surface, on the top of the TV, on the wall or onto a TV stand.
You can mount the UVC80/UVC50 on the top of the TV, on the wall, on the ceiling, or onto a TV Stand or a
Tripod.
You can mount UVC40 on a flat surface or on the wall.
You can mount the UVC30 on the top of the TV, on the wall, or onto a TV Stand or a Tripod.
The installation methods are as follows:
