Yealink SIP-T22P User Manual

User Guide SIP-T22P IP Phone
38
You can manage your phone’s local directory via phone or web user interface. But you
can only import or export the contact list via web user interface.

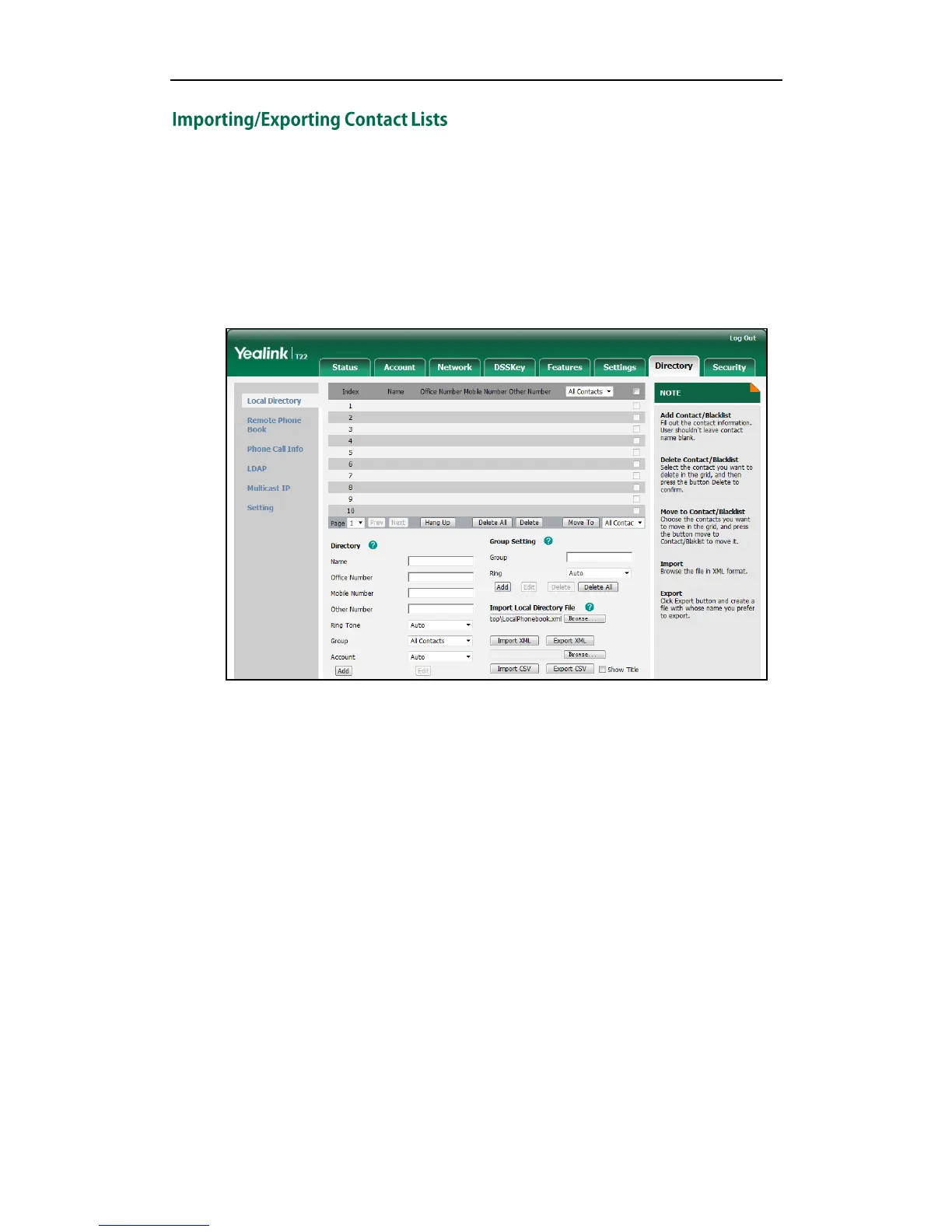

To import an XML file of contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (file format must be *.xml) from your local
system.
3. Click Import XML to import the contact list.
The web user interface prompts “The original contact will be covered, Continue?”.
4. Click OK to complete importing the contact list.
To import a CSV file of contact list via web user interface:
1. Click on Directory->Local Directory.
2. Click Browse to locate a contact list file (file format must be *.csv) from your local
system.
3. (Optional.) Check the Show Title checkbox.
It will prevent importing the title of the contact information which is located in the
first line of the CSV file.
4. Click Import CSV to import the contact list.
5. (Optional.) Mark the On radio box in the Delete Old Contacts field.
It will delete all existing contacts while importing the contact list.

Yealink SIP-T22P Specifications

General

DC-in jack	Yes
Expansion module support	No
Ethernet LAN (RJ-45) ports	2
Volume control	Digital
Keypad number of keys	32
Number of handles included	1 pc(s)
Power requirements	100 - 240 VAC, 5 VDC
Power consumption (typical)	2.6 W
Power consumption (PowerSave)	1.5 W
Voice codecs	G.722, G.723, G.726
Touchscreen	-
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	300 entries
Number of VoIP accounts	3
Security algorithms	HTTPS, SRTP
Flash memory	8 MB
Internal memory	32 MB
Password protection type	User
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Handset type	Wired handset
Product type	IP Phone
Product color	Black

Weight and Dimensions

Depth	200 mm
Width	185 mm
Height	90 mm
Weight	770 g
