Yealink W90DM User Manual

1
E
N
G
L
I
S
H

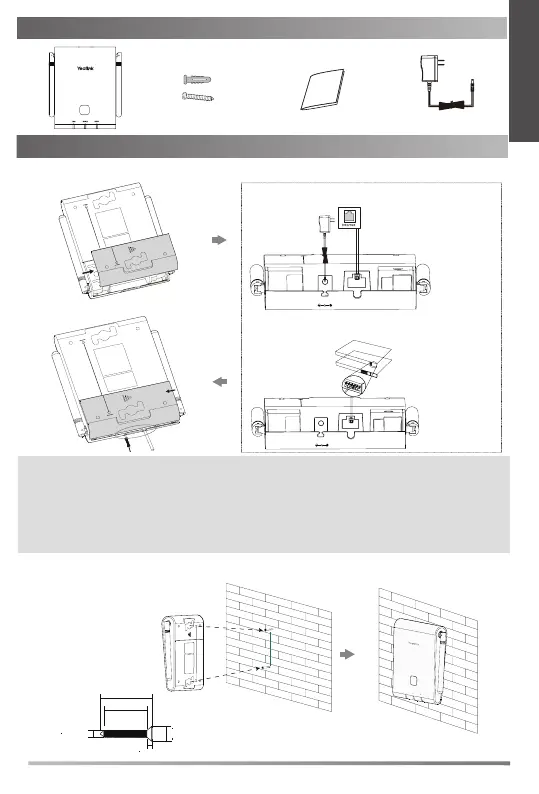

Package Contents
Installation
1. Connect the power and the network.
a. AC Power Option
b. PoE (Power over Ethernet) Option
IEEE 802.3af compliant
PoE Hub/Switch
Note:
• If you choose method a, use Yealink supplied power adapter (5V/1.2A).
A third-party power adapter may damage the device.
• If you choose method b, you do not need to connect the power adapter.
Make sure the hub/switch is PoE-compliant.
2. Mount W90DM/W90B on the wall.
InternetDC5V
InternetDC5V
Quick Start Guide
Optional
+
+
2
2
30 mm
25 mm
Max:8mm
(0.315”)
Min:6.5mm
(0.256”)
Max:4.5mm
(0.177”)
Max:3mm
(0.118”)
100mm
S
N/M
A
C/RFP
I
Label
100mm
SN/MAC/RF
PI
La
bel
100mm
I
nter
net
DC5V
SN/MAC/RFPI
Label
100mm
Internet
DC5V

Yealink W90DM Specifications

General

Shared Call Appearance (SCA)	Yes
Number of parallel conferences	3
Phonebook capacity (per handset)	100 entries
Number of simultaneous calls (max)	100
Number of simultaneous calls per handset	2
Number of WB calls per base supported (max)	8
Security algorithms	AES, HTTPS, SHA-384, SHA-512, SRTP, TLS
Supported network protocols	SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS
Number of bases supported (max)	60
Number of handsets supported (max)	250
Frequency range (EU)	1880 - 1900 MHz
Frequency range (US)	1920 - 1930 MHz
Maximum indoor range	50 m
Maximum outdoor range	300 m
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rate supported (max)	100 Mbit/s
Product color	White
Input voltage	100 - 240 V
Output current	1.2 A
Output voltage	5 V
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85177900

Weight and Dimensions

Weight	2800 g
Package depth	203 mm
Package width	158 mm
Package height	63 mm
Package weight	3400 g
Dimensions (WxDxH)	134 x 100 x 28 mm
