Yeti AS-X User Manual

30

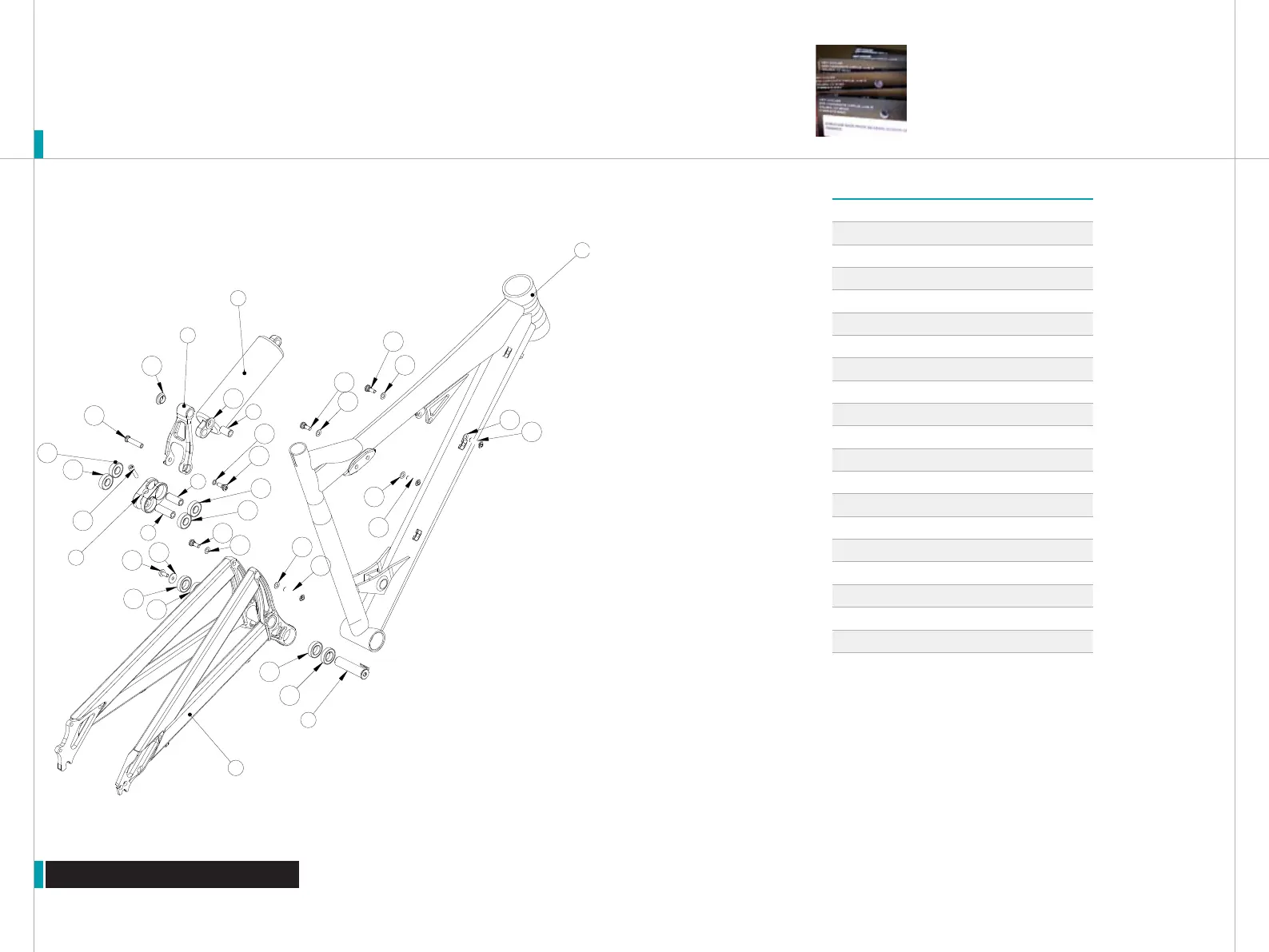

Exploded Views
EXPLODED VIEWS
1
3
2
16
16
18
18
15
15
18
18
18
13
18
16
15
16
14
12
12
9
11
11
11
11
17
4
8
7
20
19
10
10
10
10
6
5
REBUILD KITS The individual components of each Yeti bike
are not sold separately. All yeti parts are sold in rebuild kits.
Each and every part can be obtained by purchasing one of the
rebuild kits. Cross reference the part number you desire from
the parts list to the rebuild list.
PARTS LIST W/FOX SHOCK
QTY. PART # DESCRIPTION
1 1 NA Front Triangle
2 1 NA Rear Triangle
3 1 NA Shock
4 1 300040202 Shortlink
5 1 300040210 Dogbone
6 1 300030035 Main Pivot Pin
7 1 300030086 Steel Pin 1.30”
8 1 300030088 Steel Pin 1.57”
9 1 300020022 Inner Bushing
10 2 300020001 Main Pivot Bearing
11 4 300020028 Ratelink Bearing
12 2 300020016 IGUS bushing
13 1 300030075 Female Pivot Bolt 43.0mm
14 1 300030076 Female Pivot Bolt 35.5 mm
15 2 300030077 Female Pivot Bolt 24.8 mm
16 4 300030078 Male Pivot Bolt 17mm
17 1 300030017 Bolt Cap M6x1x25
18 6 300030069 Thin Washer
19 1 300030045 Main pivot Washer
20 1 300030006 Button Head Bolt
