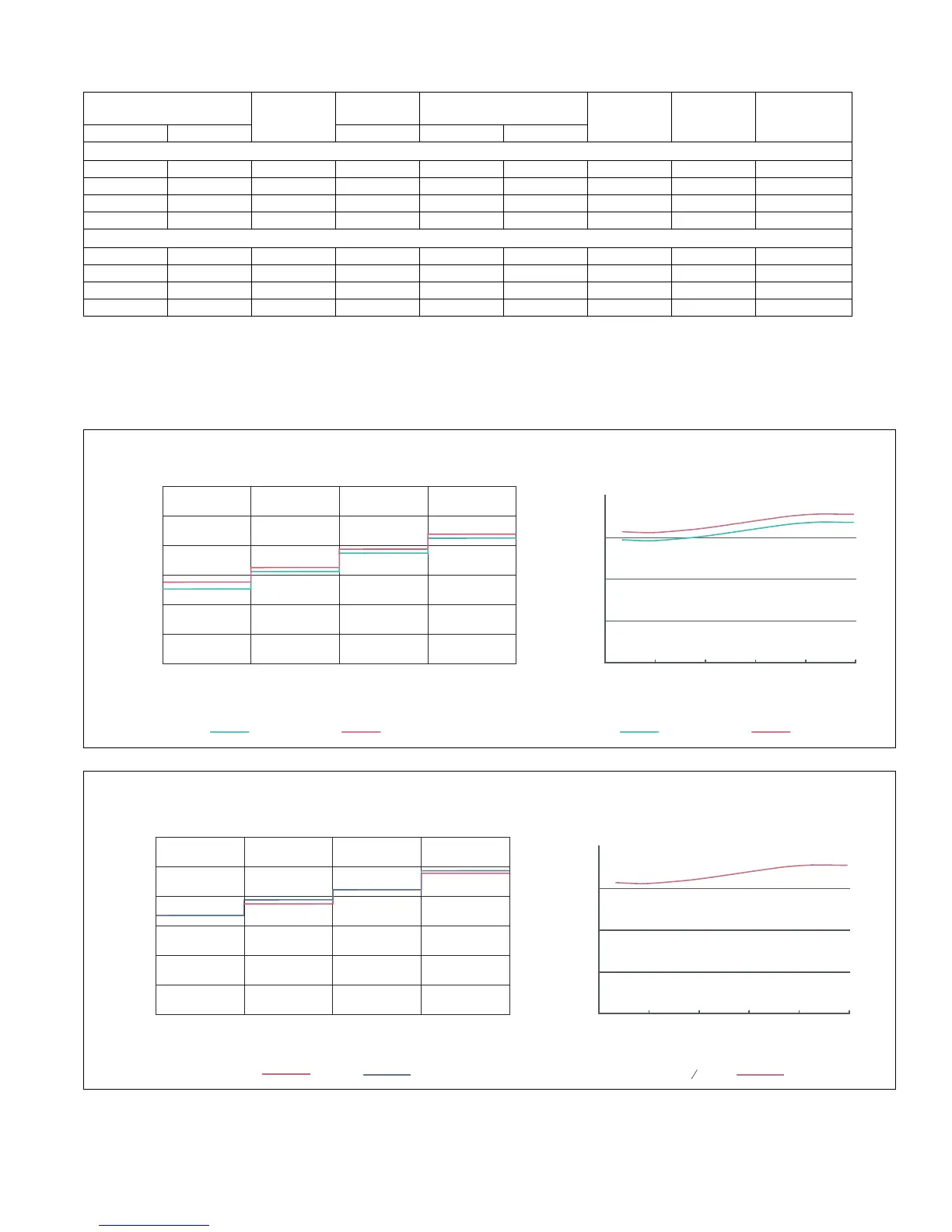

OPERATION DATA
Notes:
Measure surface temperature of heat exchanger pipe around center of heat exchanger path U bent. (Thermistor thermometer).
Connecting piping condition: 24.6 ft.
P: pressure of air pipe connected to the indoor and outdoor units (gas valve side),
T1: Inlet and outlet temperature for evaporator,
T2: Inlet and outlet temperature for condenser.
SOUND DATA
Temperature Condition (°F)
Model name
Standard
Pressure
Heat Exchanger
Pipe Temperature
Indoor Fan
Mode
Outdoor Fan
Mode
Compressor
Frequency (Hz)
Indoor Outdoor P (MPa) T1 (°F) T2 (°F)
COOLING
80/66.9 95/75 09K 0.9 to 1.1 53.6 to 57.2 158 to 104 Super High High 73
80/66.9 95/75 12K 0.9 to 1.1 53.6 to 57.2 158 to 104 Super High High 71
80/66.9 95/75 18K 0.9 to 1.1 53.6 to 57.2 176 to 104 Super High High 75
80/66.9 95/75 24K 0.9 to 1.1 53.6 to 57.2 176 to 104 Super High High 89
HEATING
70/60 46.9/43 09K 2.5 to 2.7 158 to 95 35.6 to 39.2 Super High High 76
70/60 46.9/43 12K 2.5 to 2.7 158 to 95 35.6 to 39.2 Super High High 76
70/60 46.9/43 18K 2.2 to 2.4 158 to 104 33.8 to 41.0 Super High High 90
70/60 46.9/43 24K 2.2 to 2.4 158 to 104 33.8 to 41.0 Super High High 87
Indoor side noise when blowing
Outdoor side noise
60
60
60 80 100
50
50
40
40
40
30
30
20
20
20
10
0
0
Indoor Fan Motor Rotating Speed
Noice/dB(A) Noice/dB(A)
low
Middle
High Super High
Compressor frequency/Hz
09K 12K 09K 12K
09K 12K
Indoor side noise when blowing
Outdoor side noise
18K
24K
60
60
60 80 100
50
50
40
40
40
30
30
20
20
20
10
0
0
Indoor Fan Motor Rotating Speed
Noice/dB(A)
low
Middle
High Super High
Compressor frequency/Hz
18 24K
18K 24K
Noice/dB(A)
