923178-UTG-B-0114
10 Johnson Controls Unitary Products

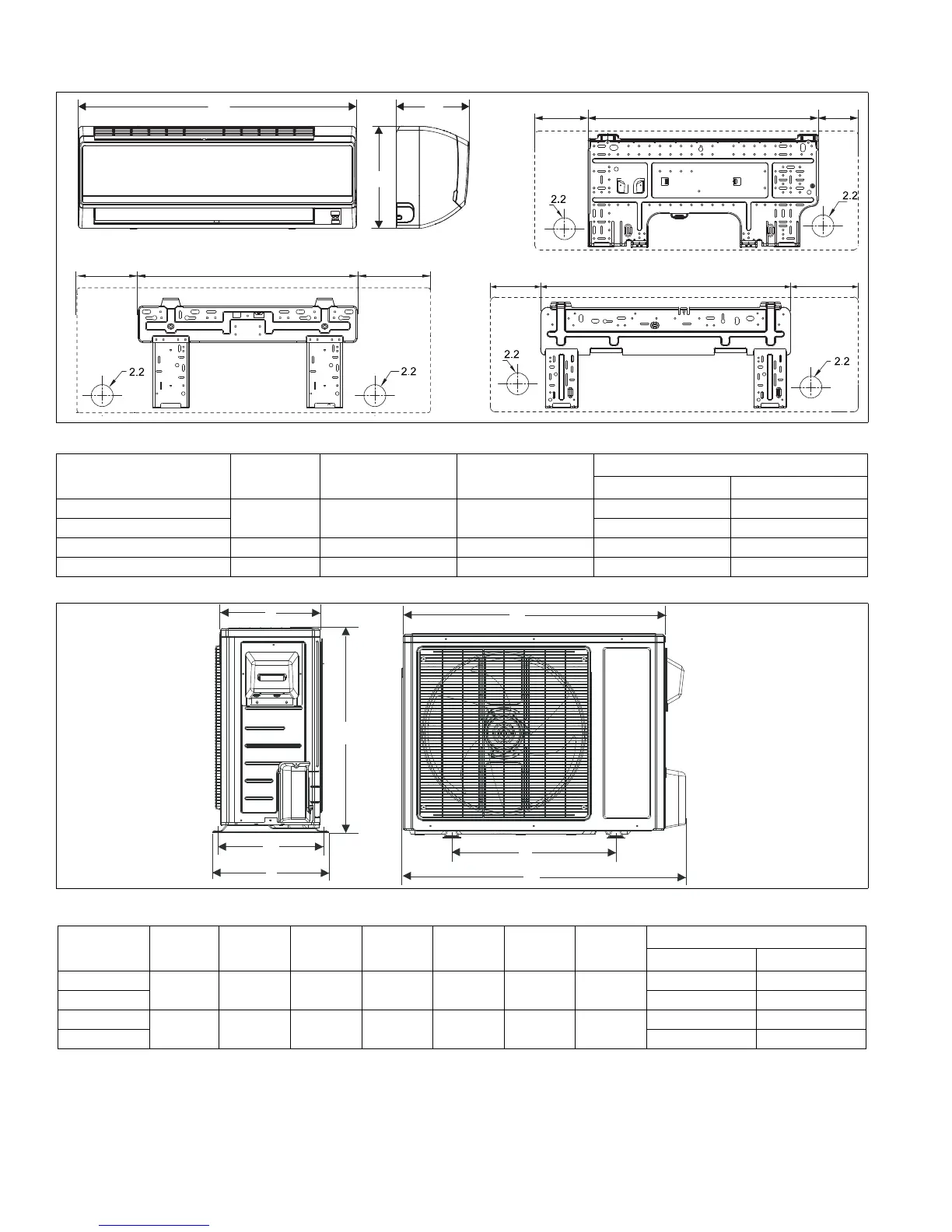

PRODUCT CONSTUCTION VIEW & DIMENSIONS
5.0 21.6
3.7
09K 12K
7.221.3
5.5
18K
7.6
27.05.1
24K
A
C
B
Indoor Unit Dimensions
Model Size A B C
Unit Gross Weight
Air Conditioner Heat Pump
09K
30.3 (770) 7.9 (201) 11.1 (282)
25 lbs (11.5 kg) 25 lbs (11.5 kg)
12K 27 lbs (12 kg) 27 lbs (12 kg)
18K 34.1 (866) 8.5 (216) 12.0 (305) 35 lbs (16 kg) 35 lbs (16 kg)
24K 39.7 (1008) 8.7 (221) 12.4 (315) 44 lbs (20 kg) 44 lbs (20 kg)
Outdoor Unit Dimensions
Model Size A B C D E F G
Unit Gross Weight
Air Conditioner Heat Pump
09K
28.0 (711 ) 12.5 (318) 21.7 (551) 11.8 (300) 10.8 (274) 25.9 (658) 18.5 (470)
73 lbs (33 kg) 73 lbs (33 kg)
12K 77 lbs (35 kg) 77 lbs (35 kg)
18K
37.9 (963) 15.6 (396 ) 27.6 (701) 14.4 (366) 13.4 (340) 35.0 (889) 22.0 (559)
115 lbs (52 kg) 117 lbs (53 kg)
24K 123 lbs (56 kg) 126 lbs (57 kg)
