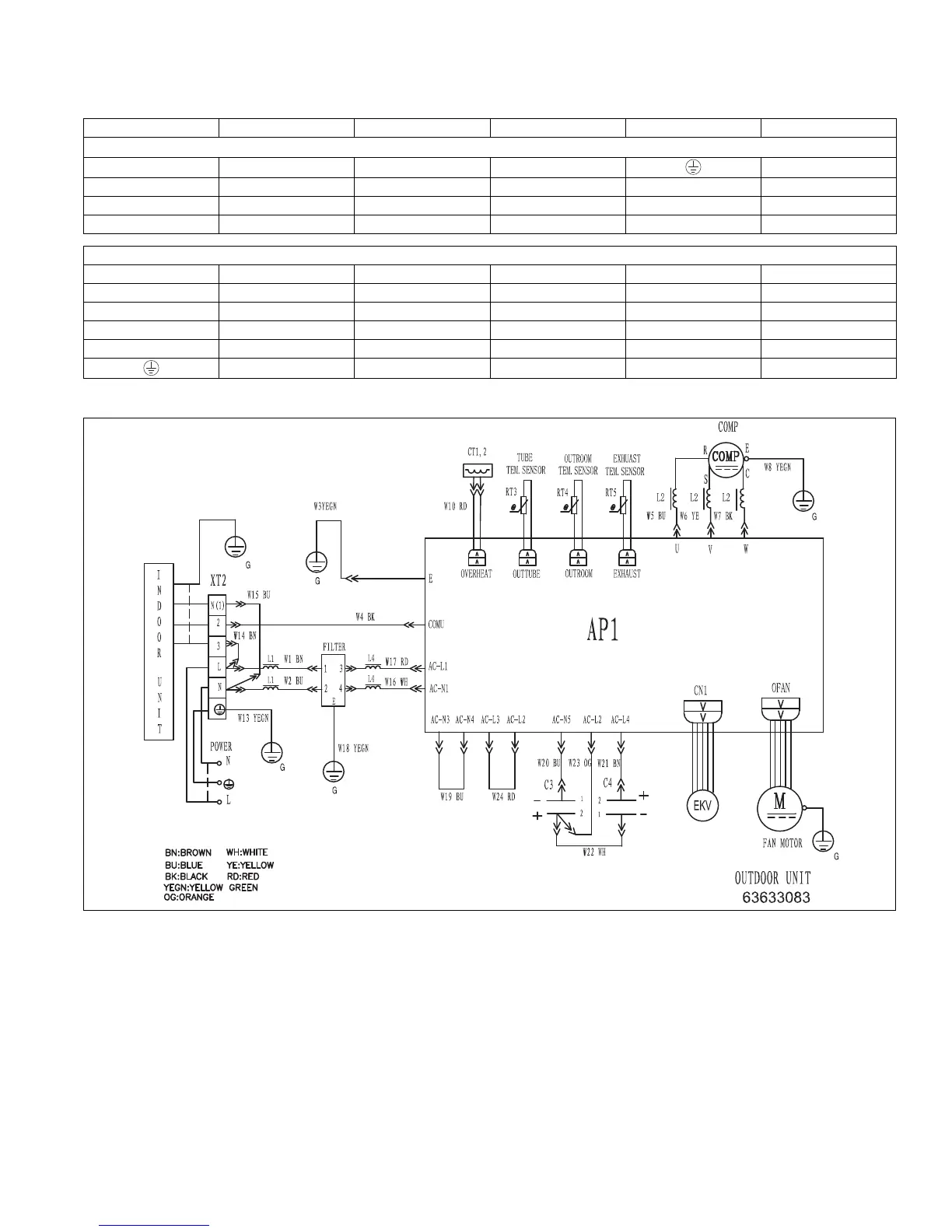

WIRING DIAGRAM
Electrical Data
Electrical Wiring
Symbol Color Symbol Symbol Color Symbol Symbol Part Name
INDOOR UNIT
BU BlUE BN BROWN PROTECTIVE EARTH
YE YELLOW GN GREEN / /
RD RED BK BLACK / /
YEGNYELLOW GREEN////
OUTDOOR UNIT
Symbol Part Name Symbol Color Symbol Symbol Color Symbol
C1 CBB61 BN BROWN WH WHITE
C2 CBB65 BU BLUE YE YELLOW
SAT OVERLOAD BK BLACK RD RED
COMP COMPRESSOR OG ORANGE YEGN YELLOW GREEN
PROTECTIVE EARTH WH WHITE / /
