York DPC-1R User Manual

14
Data and measurements are subject to change without prior notice.
GB
The fastening holes found at the base coin-
cide with the standard electric boxes on the
market.
In the case the connecting cable does not
come from the electric box, the thermostat
must be fastened to the wall with the an-
chors and screws supplied.
Keep in mind that the rectangular hole in
the centre of the base is to house the elec-
tric connecting cable.
Standard electric connections,
thermostat DPC-1R (for thermo-
stat with relays)

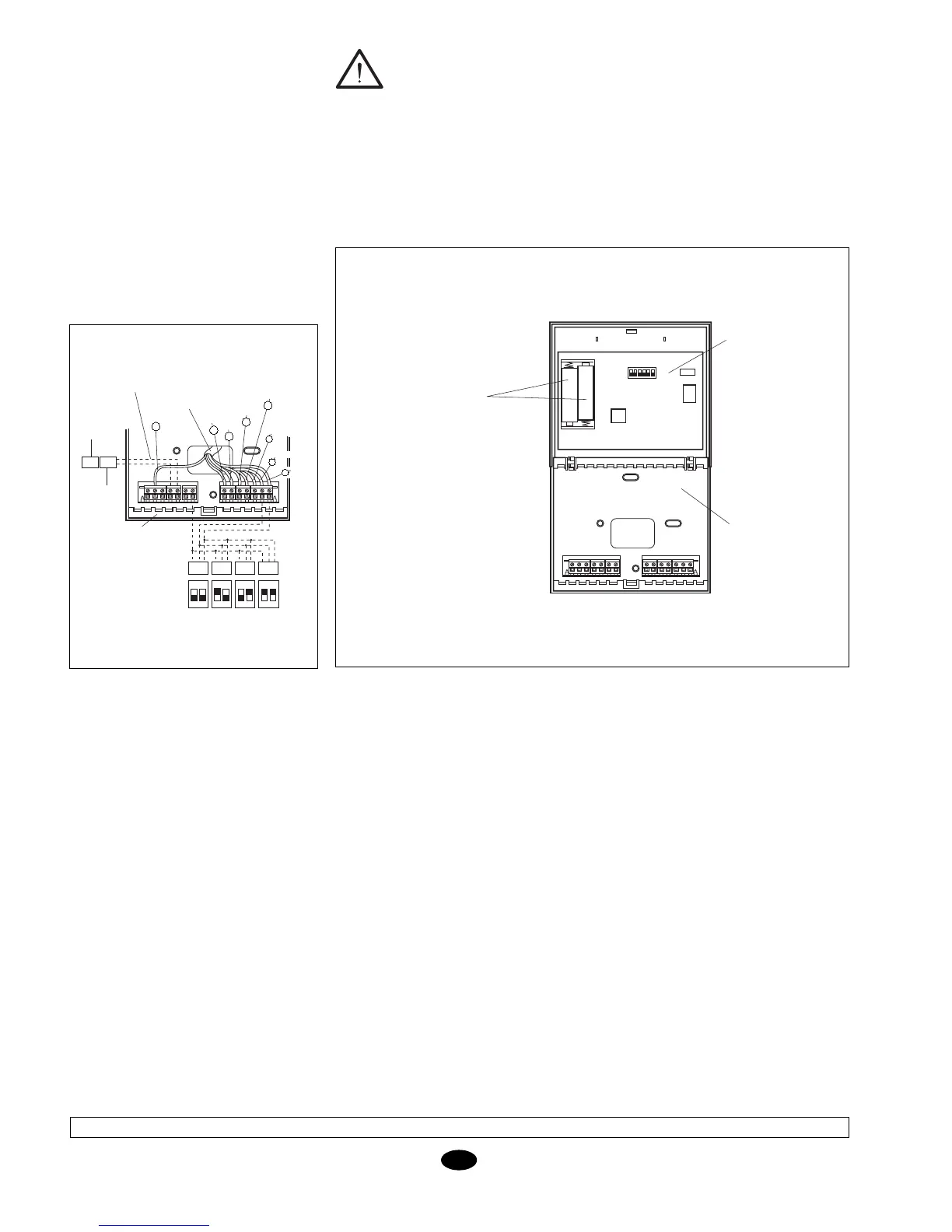

Once the base is fastened to the wall, wire
the thermostat as shown in the following il-
lustration:
Caution
A screened 10 x 0.22 mm² cable,
with a maximum length of 100 m.,
should be used between the ther-
mostat and the control board. Connections
to be carried out are R, B, G, Y, Y2, O/B, W
and AL. (Phase "R" of the alarm relay).
To connect the remote sensor use screened
2 x 0.5 mm
2
cable with a maximum length of
100 m. between the thermostat and the sen-
sor. The connections to be carried out are
RS1 and RS2.
To connect the digital remtoe probe use
screened 3 x 0.5 mm
2
cable, with a maxi-
mum length of 100m, between the thermo-
stat and the kast probe. Connections to be
mode R, B and X1.
For correct operation of the thermostat, it is
indispensable to have made electric wiring
properly, and have inserted the two AAA 1.5
V alkaline batteries at the rear of the front
panel, as shown below:
X1 X2 RS1 RS2 RS3
AL
R
Base of
thermostat
Red
White
Shielded cable 10 x 0.22 mm
2
(Maximum length 100 m)
Shielded cable 2 x 0.5 mm
2
(Maximum length 100 m)
B
Green
G
W
Blue
O/B
Violet
Y2
Black
Y1
Brown
Remote
probe
(Ooptional)
RS1DS1
Duct
Probe
(Optional)
X1 B R
AS1
X1 B R
AS1
X1 B R
AS1
X1 B R
AS1
ON
12
ON
12
ON
12
ON
12
S5 S6 S7 S8
Digital remote
probe (Optional)
Grey
X1 X2 RS1 RS2 RS3 AL R B G Y1 Y2 O/B W
Rear of
front panel
Base of
thermostat
AAA 1.5 V Alkaline
batteries
