York G8C10016(MU,MD)C12 User Manual

270844-YTG-A-0407
2 Unitary Products Group
DOWNFLOW
UPFLOW
A
A
B
E
D
BOTTOM VIEW
F
G
29-3/4
29-3/4
C
31-1/2
31-1/2
14
BOTTOM VIEW
H
J
16-1/4
K
K

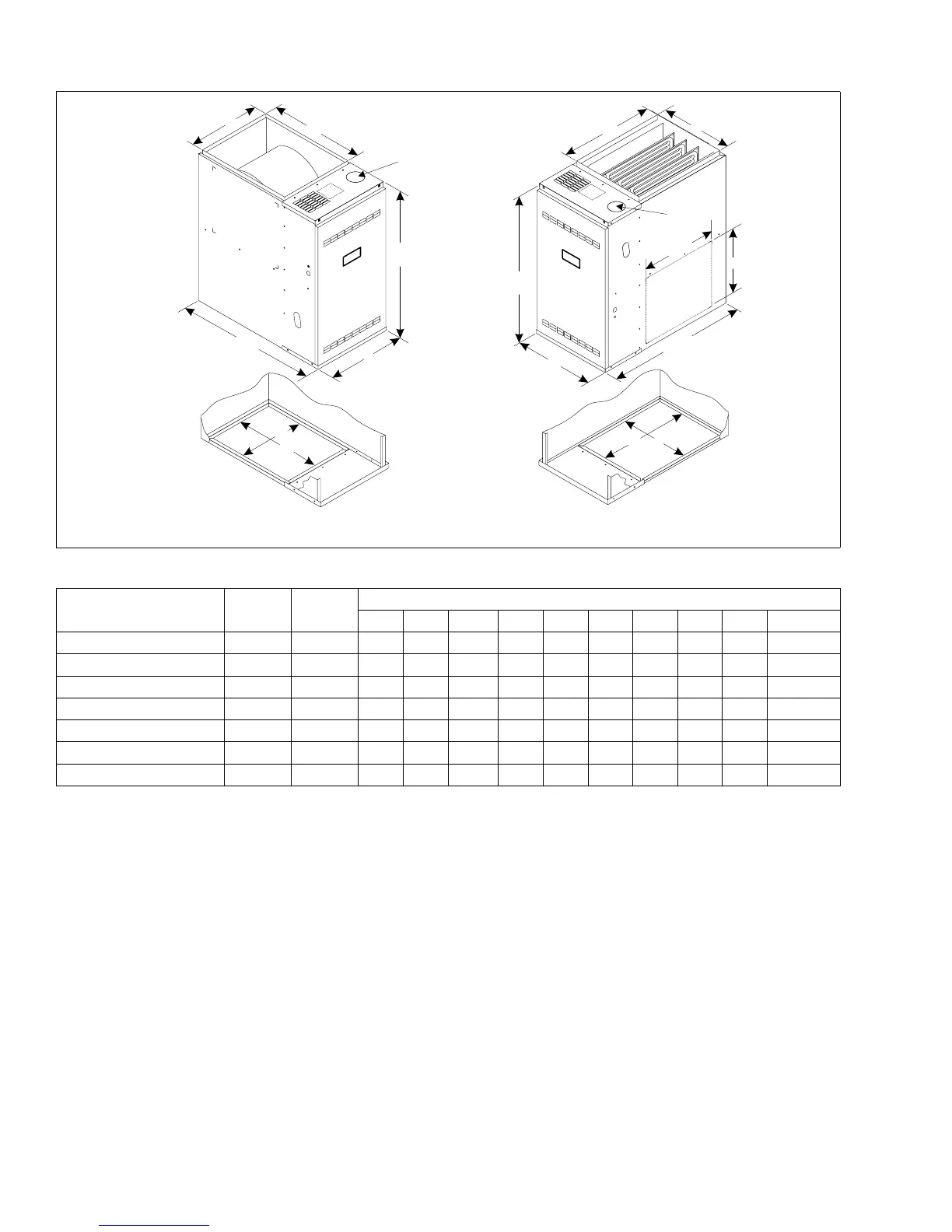

CABINET AND DUCT DIMENSIONS
BTUH (kW)
Input
Nominal
CFM
Cabinet
Size
Cabinet Dimension
A(in.) B(in.) C(in.) D(in.) E(in.) F(in.) G(in.) H(in.) J(in.) K Vent (in.)
G8C05012(MU,MD)B12
1
1200 B 17 1/2 16 1/2 20 3/8 20.0 16 14 3/4 18 3/4 15 1/8 19.0 3
G8C07512(MU,MD)B12
1
1200 B 17 1/2 16 1/2 20 3/8 20.0 16 14 3/4 18 3/4 15 1/8 19.0
4
2
G8C07516(MU,MD)C12
1
1600 C 21 20 20 3/8 20.0 19 1/2 18 1/4 18 3/4 18 5/8 19.0
4
2
G8C10016(MU,MD)C12
1
1600 C 21 20 20 3/8 20.0 19 1/2 18 1/4 18 3/4 18 5/8 19.0
4
2
G8C10020(MU,MD)D11
1
2000 D 24.5 23 1/2 20 3/8 20.0 23 21 3/4 18 3/4 22 1/8 19.0
4
2
G8C12520(MU,MD)D11
1
2000 D 24.5 23 1/2 20 3/8 20.0 23 21 3/4 18 3/4 22 1/8 19.0
5
2
G8C15020UHD11
3
2000 D 24 1/2 23 1/2 20 3/8 20.0 23 21 3/4 18 3/4 22 1/8 19.0
5
2
1. 4-position models may be factory configured as upflow (MU) or downflow (MD).
2. 3-position 150 MBH model available only in upflow/horizontal (UH) configuration.
4. Dimensions “B”, “C”, “D”, and “E” are with duct flanges turned up. “F”, “G”, “H”, & “J” are with flanges flat.
3. All models are supplied with 3” (7.62 cm) vent connections. An installer supplied transition to 4” (10.16 cm) or 5” (12.7 cm) must be used where necessary.

York G8C10016(MU,MD)C12 Specifications

General

Brand	York
Model	G8C10016(MU, MD)C12
Category	Furnace
Language	English
