York H4AH048S06 User Manual

036-21215-003 Rev. B (1202)
2 Unitary Products Group
1.Rated in accordance with ARI Standard 110, utilization range “A”.
2.Dual element fuses or HACR circuit breaker.
3.All scrolls listed with a superscript “B” are Bristol scrolls. All scrolls listed with a superscript “C” are Copeland scrolls.
4.The Unit Charge is correct for the outdoor unit, matched indoor coil and 15 feet of refrigerant tubing. For tubing lengths other than
15 feet, add or subtract the amount of refrigerant, using the difference in length multiplied by the per foot valve.
All dimensions are in inches. They are subject to change without
notice. Certified dimensions will be provided upon request.

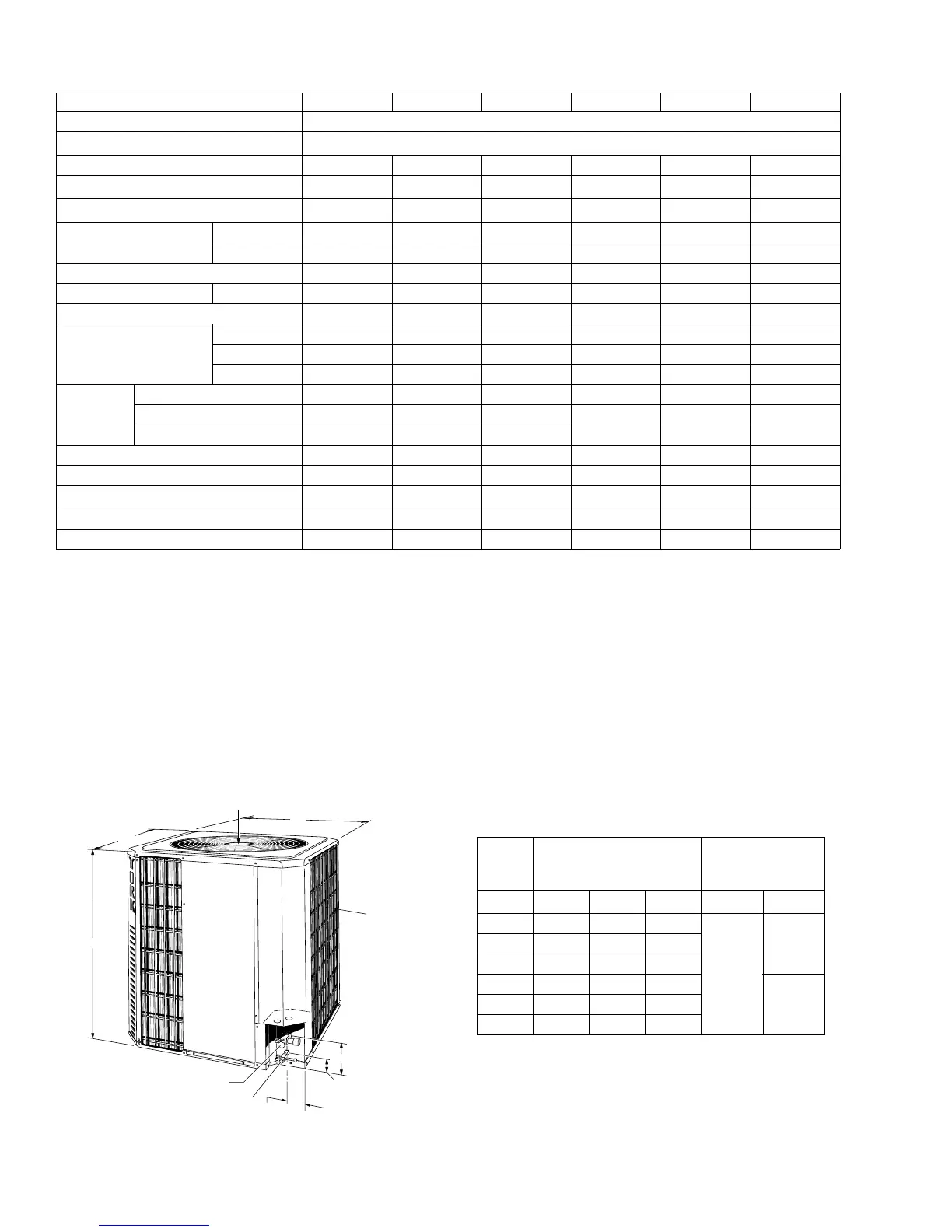

Physical and Electrical Data
MODEL
H4AH024S06 H4AH030S06 H4AH036S06 H4AH042S06 H4AH048S06 H4AH060S06
Unit Supply Voltage 208/230 - 1 - 60
Normal Voltage Range
1
187 to 253
Minimum Circuit Ampacity 13.2 16.6 20.5 24.5 26.8 35.6
Max. Overcurrent Device Amps
2
20 25 35 45 45 60
Compressor Type
3
Inertia Inertia
Scroll
C
Scroll
C
Scroll
C
Scroll
C
Compressor Amps
Rated Load 9.9 12.6 15.4 18.6 20.5 27.5
Locked Rotor 48 66.7 83 105 109 158
Crankcase Heater Yes Yes No No No No
Fan Motor Amps Rated Load 0.86 0.86 1.2 1.2 1.2 1.2
Fan Diameter Inches 18 18 24 24 24 24
Fan Motor
Rated HP 1/8 1/8 1/4 1/4 1/4 1/4
Nominal RPM 1050 1050 850 850 850 850
Nominal CFM 1700 1800 2900 3100 3100 3100
Coil
Face Area Sq. Ft. 11.3 14.1 16 20 20 24
Rows Deep 111111
Fin / Inches 18 20 18 18 18 18
Liquid Line OD 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line OD 3/4 3/4 3/4 7/8 7/8 7/8
Unit Charge (Lbs. - Oz.)
4
5 - 5 6 - 5 7 - 2 8 - 5 7 - 7 9 - 5
Charge Per Foot, Oz. 0.68 0.68 0.68 0.70 0.70 0.70
Operating Weight Lbs. 125 145 195 230 255 290
48" OVERHEAD
CLEARANCE
C
B
A
5-1/2
2-3/8
3-1/8
VAPOR
CONNECTION
LIQUID CONNECTION
AIR IN
4 SIDES
DIMENSIONS
UNIT
MODEL
HAH
DIMENSIONS
(INCHES)
REFRIGERANT
CONNECTION
LINE SIZE
A
1
1 Included Fan Guard.
B C Liquid Vapor
024 24-1/8 24 24
3/8
3/4030 30-1/8 24 24
036 25-7/8 35 35
042 31-7/8 35 35
7/8048 31-7/8 35 35
060 37-7/8 35 35
