York MC18A User Manual

5353649-UIM-A-0617
3

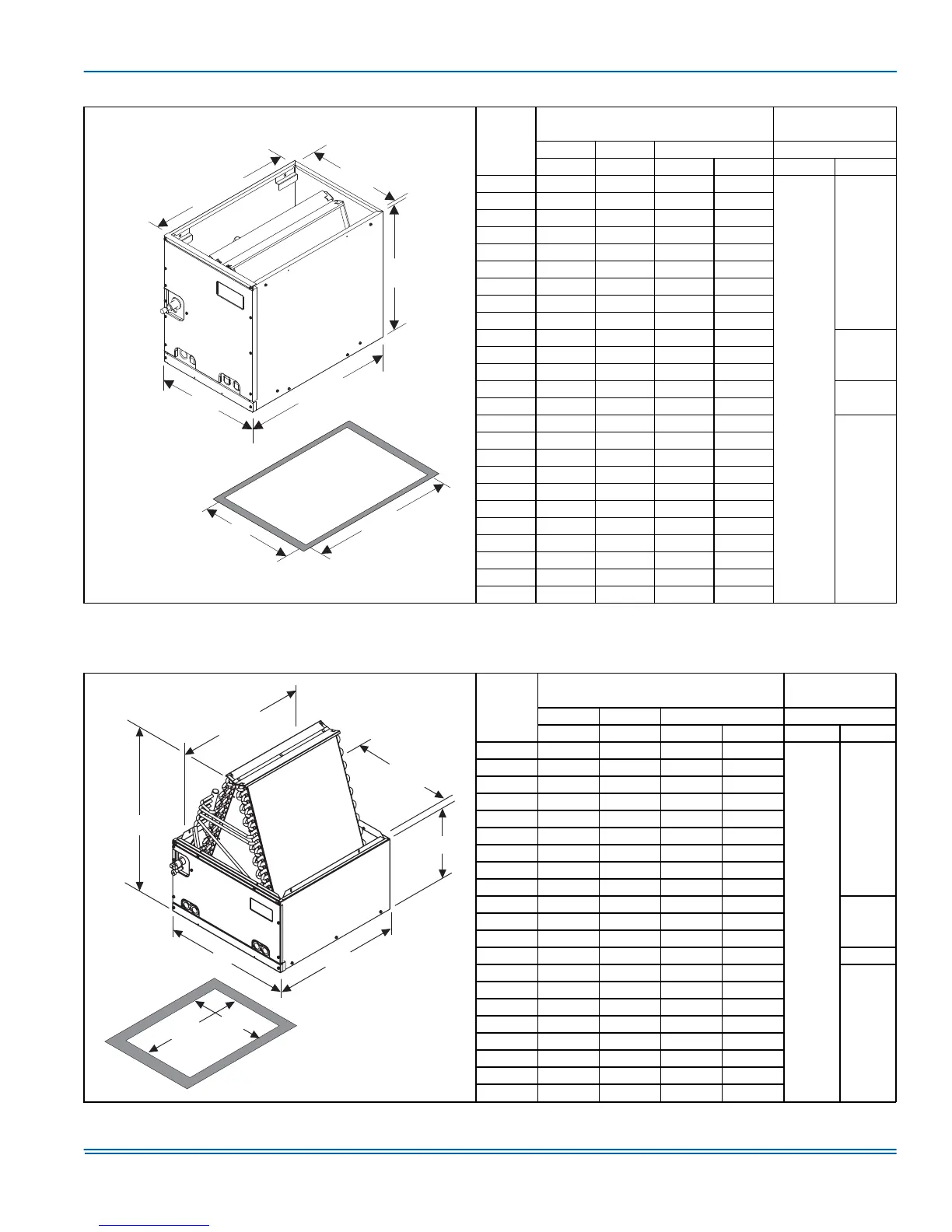

TABLE 2: Dimensions - FC Coils
Models
Dimensions
1
Refrigerant
Connections
2
Height Width Opening Widths Line Size
ABCDLiquid Vapor
FC18A 18 14-1/2 13-3/8 13-1/2
3/8
3/4
FC18B 18 17-1/2 16-3/8 16-1/2
FC24A 22 14-1/2 13-3/8 13-1/2
FC24B 22 17-1/2 16-3/8 16-1/2
FC30A 22 14-1/2 13-3/8 13-1/2
FC30B 22 17-1/2 16-3/8 16-1/2
FC32A 20 14-1/2 13-3/8 13-1/2
FC35B 20 17-1/2 16-3/8 16-1/2
FC35C 20 21 19-7/8 20
FC36A 24-1/2 14-1/2 13-3/8 13-1/2
7/8FC36B 24-1/2 17-1/2 16-3/8 16-1/2
FC36C 24-1/2 21 19-7/8 20
FC37A 24-1/2 14-1/2 13-3/8 13-1/2
3/4
FC38C 28 21 19-7/8 20
FC42B 28 17-1/2 16-3/8 16-1/2
7/8
FC42C 28 21 19-7/8 20
FC43B 24-1/2 17-1/2 16-3/8 16-1/2
FC43C 24-1/2 21 19-7/8 20
FC48C 28 21 19-7/8 20
FC48D 28 24-1/2 23-3/8 23-1/2
FC49D 32 24-1/2 23-3/8 23-1/2
FC60C 28 21 19-7/8 20
FC60D 28 24-1/2 23-3/8 23-1/2
FC62D 32 24-1/2 23-3/8 23-1/2
FC64D 36 24-1/2 23-3/8 23-1/2
1. All dimensions are in inches.
2. Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.
BOTTOM OPENING
DIMENSIONS
21-1/2”
20-1/4”
C
(Opening)
20-3/8”
(Opening)
B
A
D
TABLE 3: Dimensions - PC Coils
Models
Dimensions
1
Refrigerant
Connections
2
Height Width Opening Widths Line Size
ABCDLiquid Vapor
PC18A 17-3/4 14-1/2 13-3/8 13-1/2
3/8
3/4
PC18B 17 17-1/2 16-3/8 16-1/2
PC24A 21-7/8 14-1/2 13-3/8 13-1/2
PC24B 21-3/8 17-1/2 16-3/8 16-1/2
PC30A 21-7/8 14-1/2 13-3/8 13-/2
PC30B 21-3/8 17-1/2 16-3/8 16-1/2
PC32A 20 14-1/2 13-3/8 13-1/2
PC35B 18-7/8 17-1/2 16-3/8 16-1/2
PC35C 18-3/4 21 19-7/8 20
PC36A 23-7/8 14-1/2 13-3/8 13-1/2
7/8PC36B 23-1/8 17-1/2 16-3/8 16-1/2
PC36C 22-7/8 21 19-7/8 20
PC37A 23-7/8 14-1/2 13-3/8 13-1/2 3/4
PC42B 27-5/8 17-1/2 16-3/8 16-1/2
7/8
PC42C 27-1/8 21 19-7/8 20
PC43B 23-1/8 17-1/2 16-3/8 16-1/2
PC43C 22-5/8 21 19-7/8 20
PC48C 25-3/8 21 19-7/8 20
PC48D 24-5/8 24-1/2 23-3/8 23-1/2
PC60C 27-1/2 21 19-7/8 20
PC60D 26-7/8 24-1/2 23-3/8 23-1/2
1. All dimensions are in inches.
2. Refrigerant line sizes may require larger lines for extended line lengths. See Application Data part number 247077.
BOTTOM
OPENING
DIMENSIONS
20 1/4”
D
-
20 3/8”
(Opening)
A
C
(Opening)
12”
B
21 1/2”
-
-
