EZ Zone/Meridian
Upgrade 19
036-21423-001 Rev. A (0602)
16
32
8
4
2
1
Caution!
The MiniLinks Must Have Address Switches Set Between 1
And 30 (Up To 30 MiniLinks (Mounted on Zone Managers)
Are Allowed Per Auto-Zone Plus System). The MiniLinks
Should Be Addressed In Consecutive Order Starting With
Address #1. Address #1 Must Be Present On The Loop For
The System To Function.
Address Switch Shown Is
Set For Address 1
Address Switch Must Always Be Set
To Address 17 on Zone Manager Board
As Shown
Address Switch Shown Is
Set For Address 4
Zone Manager
Address Switch
MiniLink
Address Switch
These Switches Must Be
In The OFF Position
As Shown
These Switches Must Be
In The OFF Position
As Shown
Caution:
The Power To The Zone Manager Must Be
Removed And Reconnected After Changing The
MiniLink Or Zone Manager Address Switch Settings
In Order For Any Changes To Take Effect.
Caution:
Disconnect All Communication Loop Wiring From
The Zone Manger Before Removing Power.
Reconnect Power And Then Reconnect
Communication Loop Wiring To Zone Manager.
ADD
ADD
ADD
1
2
4
8
16
32
B
NET
ADD
All Zone Managers On System Must Be
Addressed As 17
Network Switch As ShownMust Be ON
The Address For Each MiniLink
Must Be Unique To The Other MiniLinks
On The Network Loop. Loop #1 MiniLink
Should Be Addressed As #1
Loop #2 MiniLink Should Be Addressed
As #2 Etc..
ADD
ADD
ADD
32
32
32
B
B
NET
NET
16
16
16
8
8
8
4
4
4
1
1
1
2
2
2
OFF >
OFF
>
OFF >
Rocker Down
Rocker Down
Rocker Down
HEAT2
HEAT1
COOL2
COOL1
FAN
R
LOCAL
LOOP
T
SH
R
TB3
COMM
T
SH
R
MINILINK
V4
V3
CLOSE
OPEN
FDBK
GND
OPEN
K1
NETWORK
LOOP
SH
R
T
CLOSE
K2
ANALOG
OUTPUTS
A2
G
TB2
A1
Zone Manager Board
(Under MiniLink Board)
MiniLink Address Switch Setting
Zone Manager Address Switch Setting
MiniLink Board
(Mounted On Top Of Zone Manager Board)
Meridian Plus Address Switches

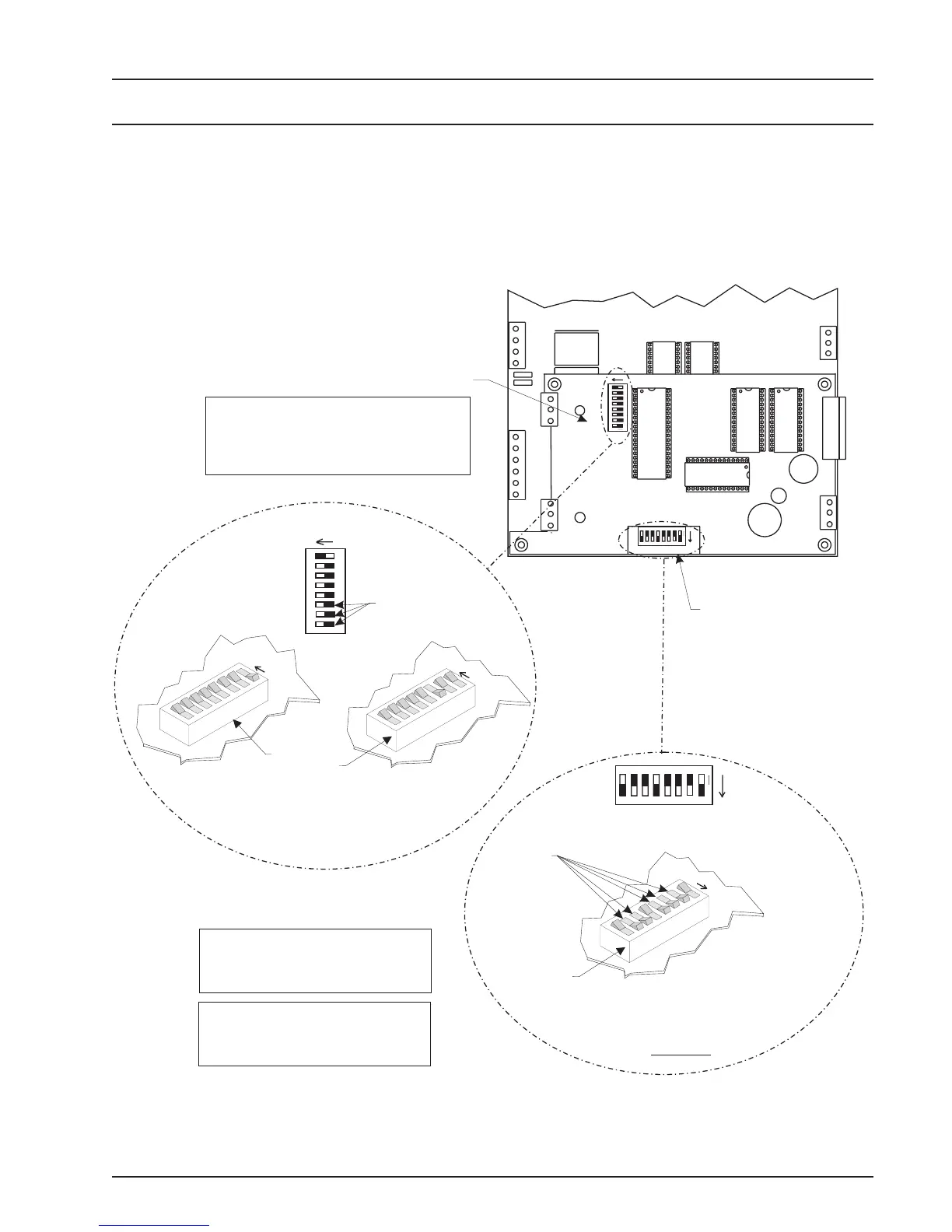

Figure 4: New Meridian Plus Address Switch Setting
The Meridian Plus Zone Manager has two different
address switches. One is located on the main Zone
Manager board and one is located on the MiniLink board
that is located on the top of the Zone Manager board.
The Zone Manager board address should always be set
to address 17 on the Meridian Plus system. The
MiniLink board should be addressed with a unique num-
ber for each Zone Manager on the system. It is recom-
mended that you start with address 1 and address each
Zone Manager consecutively. See Figure 4 below for
detailed information.
