NOTE: A one-inch clearance must be provided between
any combustible material and the supply ductwork
for a distance of 3 feet from the unit.
Do not permit overhanging structures or shrubs to
obstruct condenser air discharge outlet, combustion
air inlet or vent outlets.

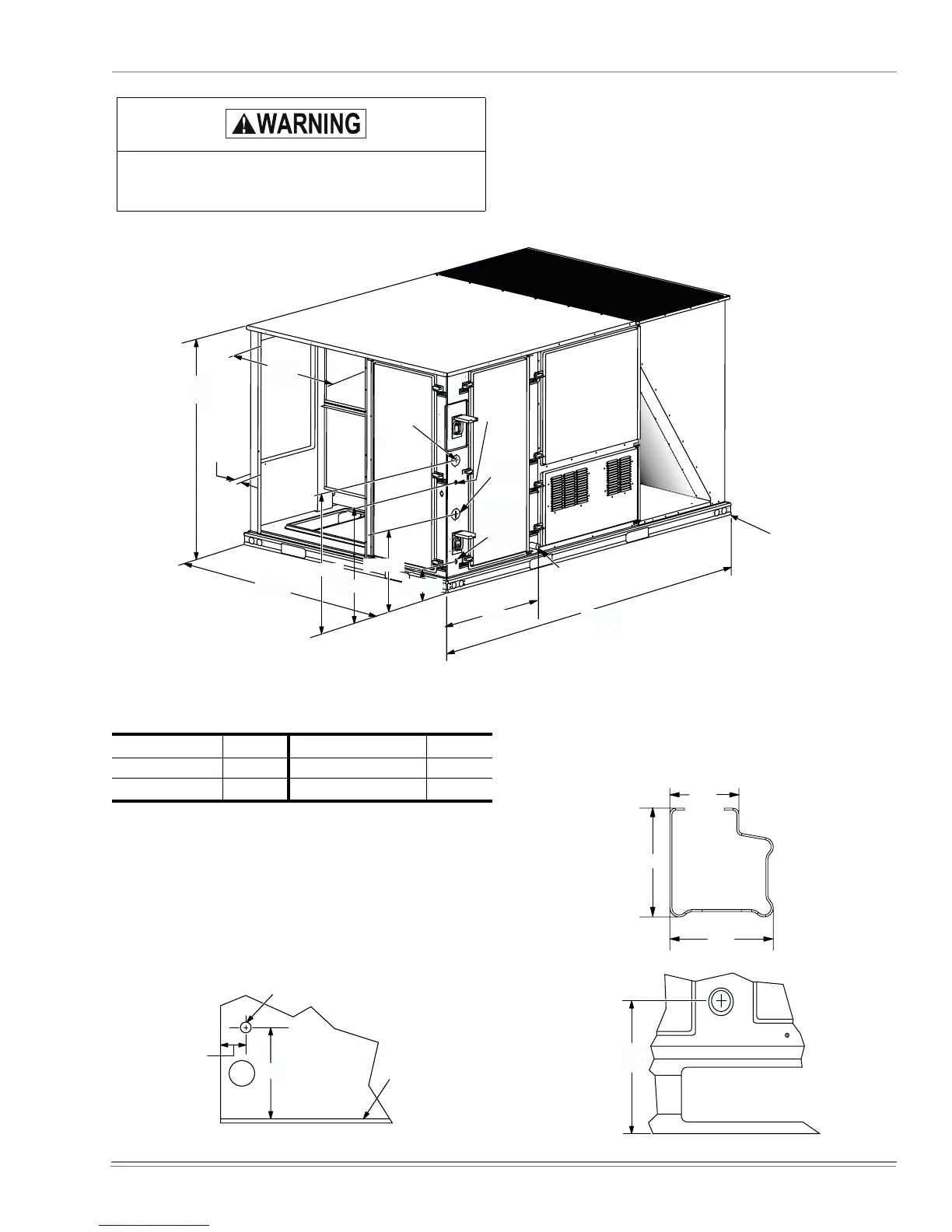

FIGURE 8 - UNIT DIMENSIONS
F o r B a s e r a i l
D i m e n s i o n s
S e e D e t a i l
A
8 9
2 7
5 9
5 0 - 3 / 4
4 - 1 / 4
6 - 3 / 1 6
1 7 - 3 / 1 6
2 4 - 3 / 1 6
3 0 - 3 / 1 6
C o n v e n i e n c e
P o w e r
O u t l e t
E n t r y
Ø 7 / 8
P o w e r
E n t r y
Ø 2 - 1 / 2
3 0 - 1 1 / 3 2
C o n t r o l
E n t r y
Ø 7 / 8
P o w e r
E n t r y
Ø 2 - 1 / 2
L E F T
F R O N T
F o r D r a i n
D i m e n s i o n s
S e e D e t a i l B
TABLE 6: UNIT CLEARANCES
Top
*
*.
Units must be installed outdoors. Overhanging struc-
ture or shrubs should not obstruct condenser air dis-
charge outlet.
72” Right 12”
Front
36”
Left
36”
Rear
†
†.
To remove the slide-out drain pan, a rear clearance of
sixty inches is required. If space is unavailable, the
drain pan can be removed through the front by separat-
ing the corner wall.
36”
Bottom
‡
‡.
Units may be installed on combustible floors made from
wood or class A, B or C roof covering materials.
0”
5 - 1 / 4
B a s e
P a n
1 7 - 1 3 / 1 6
V i e w o f W a l l A c r o s s f r o m C o i l
G a s P i p e I n l e t
DETAIL A
3 - 3 / 4
3 - 9 / 1 6
2 - 3 / 8
DETAIL B
5 - 3 / 8
DETAIL C
