OPTIMAL OPERATION
To achieve optimal performance, Please note the following:
• Adjust the air ow direction correctly so that it is not directed on people.
• Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive temperature
levels.
• Close doors and windows on COOL or HEAT modes, or performance may be reduced.
• Use TIMER ON button on the remote controller to select a time you want to start your air conditioner.
• Do not put any object near air inlet or air outlet, as the ef ciency of the air conditioner may be reduced and the air
conditioner may stop running.
• Clean the air lter periodically, otherwise cooling or heating performance may be reduced.
• Do not operate unit with horizontal louver in closed position.
PREPARATION BEFORE INSTALLATION
• Before doing any work, check the interior power supply cord and the main breaker capacity are suf cient and the
installation area is suf cient and complies with the requirements.
• Check that the power supply available agrees with name plate voltage.
• Electrical work, wiring and cables must be in compliance with national and local wiring codes and standard.
• Do not use the extension cables. In the case extended cables are needed, use the terminal block.
SELECTION OF THE LOCATION

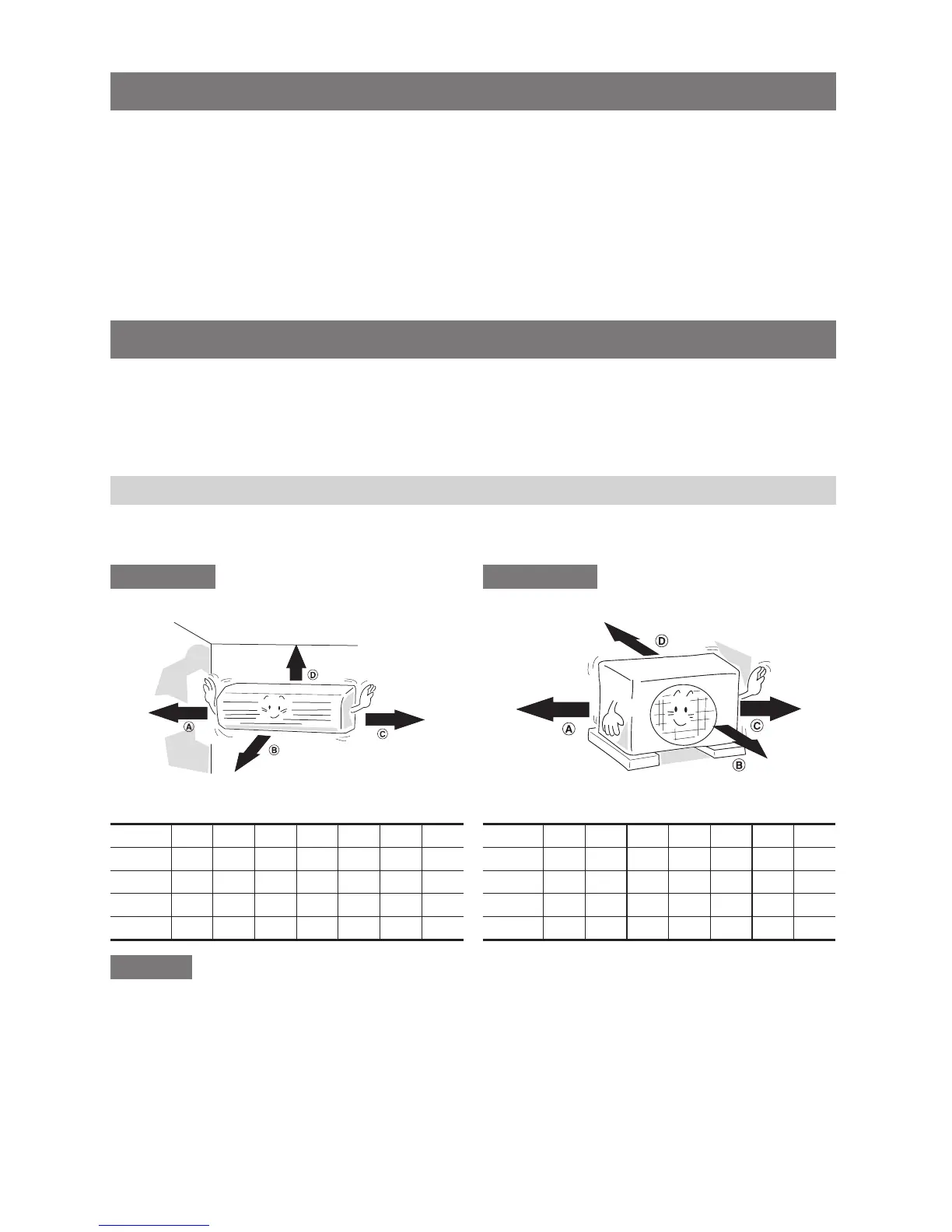

• Select a place which provides the space around the units as shown in the diagram below.
INDOOR UNIT OUTDOOR UNIT
• Do not install in a place that cannot bear the weight of the unit.
CAUTION
Models 07 09 12 18 24 28 30
A 12cm 12cm 12cm 12cm 12cm 12cm 12cm
B 70cm 70cm 70cm 70cm 70cm 70cm 70cm
C 12cm 12cm 12cm 12cm 12cm 12cm 12cm
D 15cm 15cm 15cm 15cm 15cm 15cm 15cm
Models 07 09 12 18 24 28 30
A 30cm 30cm 30cm 30cm 30cm 30cm 30cm
B
200cm 200cm 200cm 200cm 200cm 200cm 200cm
C 60cm 60cm 60cm 60cm 60cm 60cm 60cm
D 30cm 30cm 30cm 30cm 30cm 30cm 30cm
