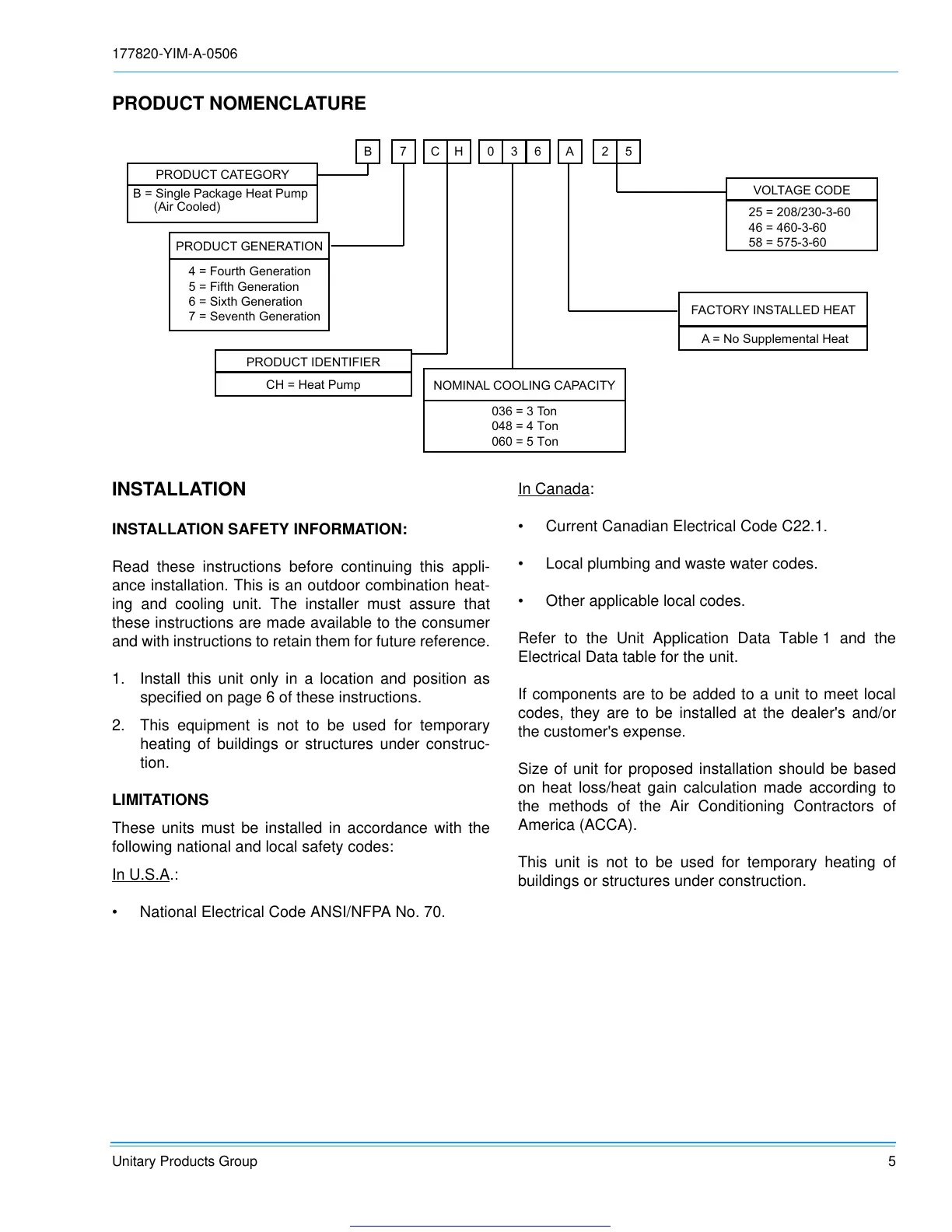

Unitary Products Group 5
PRODUCT NOMENCLATURE
INSTALLATION
INSTALLATION SAFETY INFORMATION:
Read these instructions before continuing this appli-
ance installation. This is an outdoor combination heat-
ing and cooling unit. The installer must assure that
these instructions are made available to the consumer
and with instructions to retain them for future reference.
1. Install this unit only in a location and position as
specified on page 6 of these instructions.
2. This equipment is not to be used for temporary
heating of buildings or structures under construc-
tion.
LIMITATIONS
These units must be installed in accordance with the
following national and local safety codes:
In U.S.A
.:
• National Electrical Code ANSI/NFPA No. 70.
In Canada
:
• Current Canadian Electrical Code C22.1.
• Local plumbing and waste water codes.
• Other applicable local codes.
Refer to the Unit Application Data Table 1 and the
Electrical Data table for the unit.
If components are to be added to a unit to meet local
codes, they are to be installed at the dealer's and/or
the customer's expense.
Size of unit for proposed installation should be based
on heat loss/heat gain calculation made according to
the methods of the Air Conditioning Contractors of
America (ACCA).
This unit is not to be used for temporary heating of
buildings or structures under construction.
B 7 C H A
PRODUCT GENERATION
4 = Fourth Generation
5 = Fifth Generation
6 = Sixth Generation
7 = Seventh Generation
PRODUCT CATEGORY
B = Single Package Heat Pump
(Air Cooled)
PRODUCT IDENTIFIER
CH = Heat Pump
VOLTAGE CODE
25 = 208/230-3-60
46 = 460-3-60
58 = 575-3-60
036 = 3 Ton
048 = 4 Ton
060 = 5 Ton
30 6 2 5
FACTORY INSTALLED HEAT
A = No Supplemental Heat
NOMINAL COOLING CAPACITY
