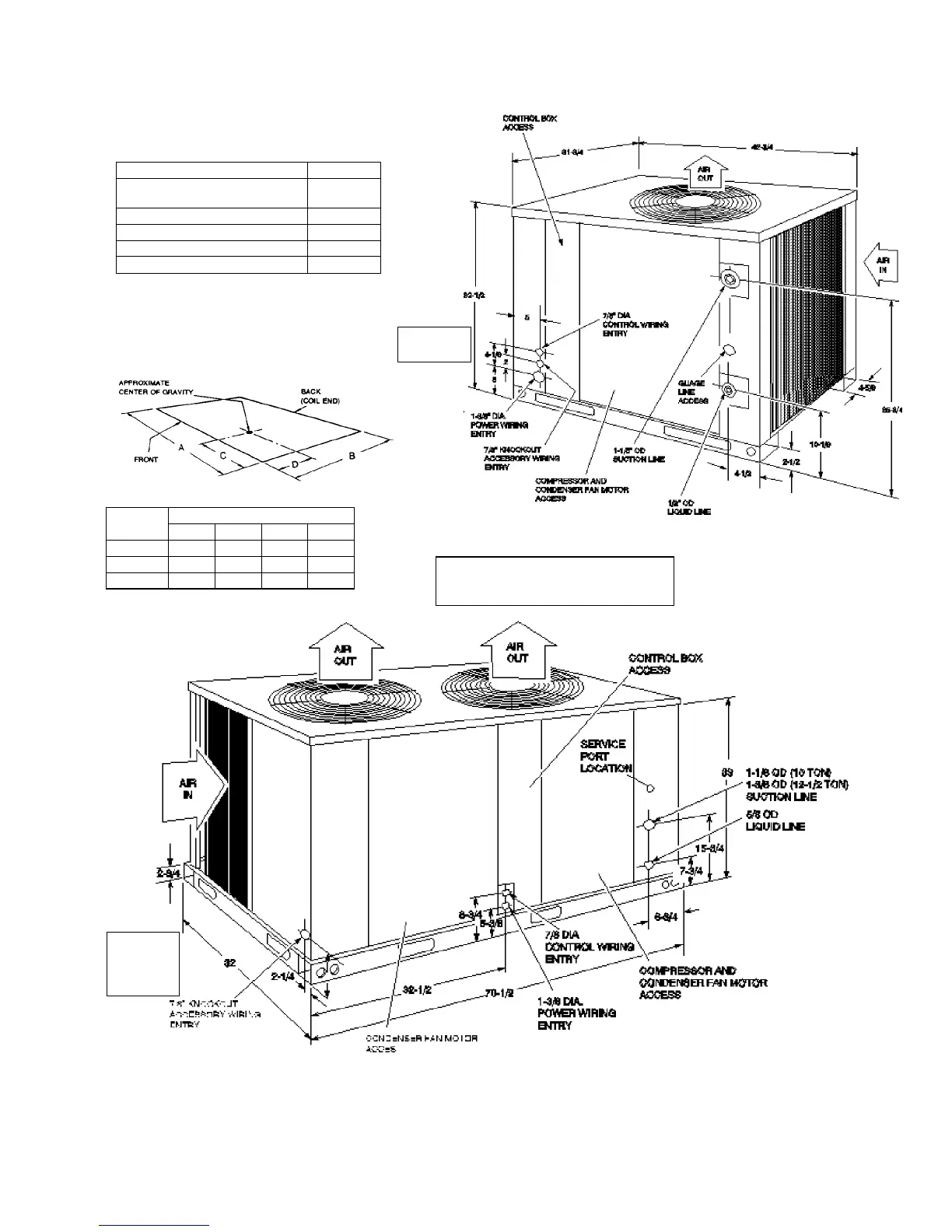

UNIT DIMENSIONS & CLEARANCES - HCE090, 120 & 150
All dimensions are in inches. They are
subject to change without notice. Certified
dimensions will be provided upon request.
Unit
Dim. (in.)
A B C D
7-1/2 Ton 42-3/4 31-3/4 19-3/4 11-1/2
10 Ton 70-1/8 32 29-5/8 16-1/2
12-1/2 Ton 70-1/8 32 29-5/8 16-1/2
HCE120
(10 TON)
HCE150
(12-1/2TON)
CLEARANCES
Overhead (Top)
1
120"
Front
(Piping and Access Panels)
30"
Left Side 24"
Right Side 24"
Rear 24"
Bottom
2
0"
1
Units must be installed outdoors. Overhanging structures or
shrubs should not obstruct condenser air discharge.
2
Adequate snow clearance must be provided if winter operation
is expected.
CENTER OF GRAVITY
HCE090
(7-1/2 TON)
550.23-TG1Y
