FORM 150.40-NM20
5
YORK INTERNATIONAL
LD01775
NOTES:
1. Clearances – Minimum York required clearances to prevent condenser air recirculation and faulty operation of units are as follows: Side
to wall 8'–0"* Rear to wall 8'–0"* Control Panel End to wall 5'–0"* Top 50'–0" Distance Between Adjacent units 12' – 0"
No more than one wall can be higher than the top of the unit. The area within the clearances shown above and area under the unit must
be kept clear of all obstructions that would impede free air flow to the unit. In installations where winter operation is intended and snow
accumulations are expected, additional unit height must be provided to insure full air flow.
2. Cooler liquid connection sizes (inlet & outlet) 6" victaulic for the YCHA120-175, 8" victaulic for the YCHA200 (flanges OPTIONAL).
3. Dimensions are in inches.
4. Spring Isolators (OPTIONAL) will increase overall height of unit.

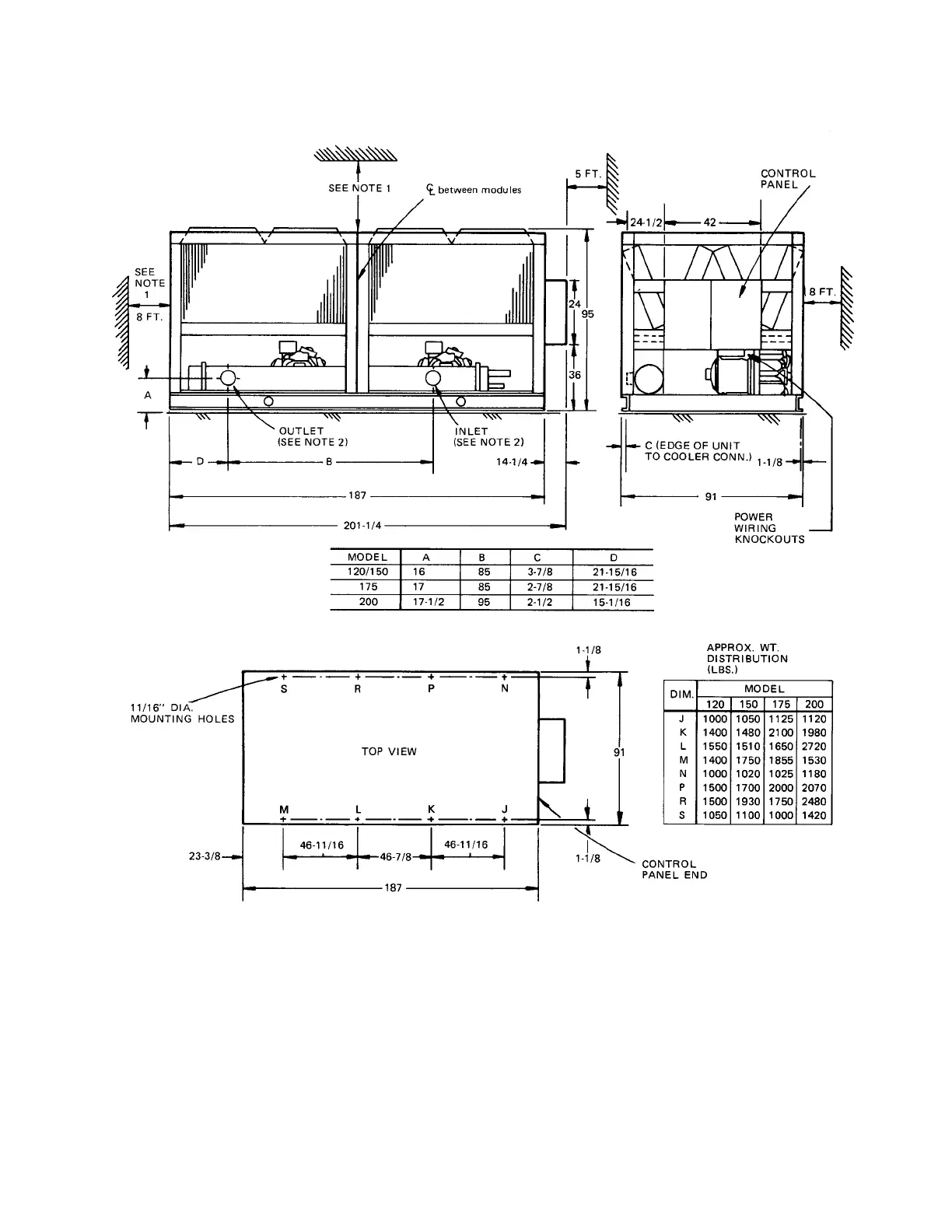

DIMENSIONS YCHA120, 150, 175, 200
