-Connection pipe
-Internal Components
2-4 Space of Installation
In order to install and maintain the unit conveniently, you should leave an appropriate space for the unit to be installed.
The distance between each side of the unit and the wall is at least 300mm, And there are at least one side which the
distance from it to the wall is not shorter than the unit width.
In order to install pipe and maintain/service unit conveniently, you should install the unit on a convex foundation. The
size of convex foundation should be a little bigger than the bottom of the unit. The height of the foundation should meet
the installation of U-trap.
If the unit is the model which is above YCM25H, the unit section should be connected according to numbering order
of the transporting section of the unit, and assembled in conformity to the airflow direction marked on the unit. Before
connection, the basement brace should be taken apart.

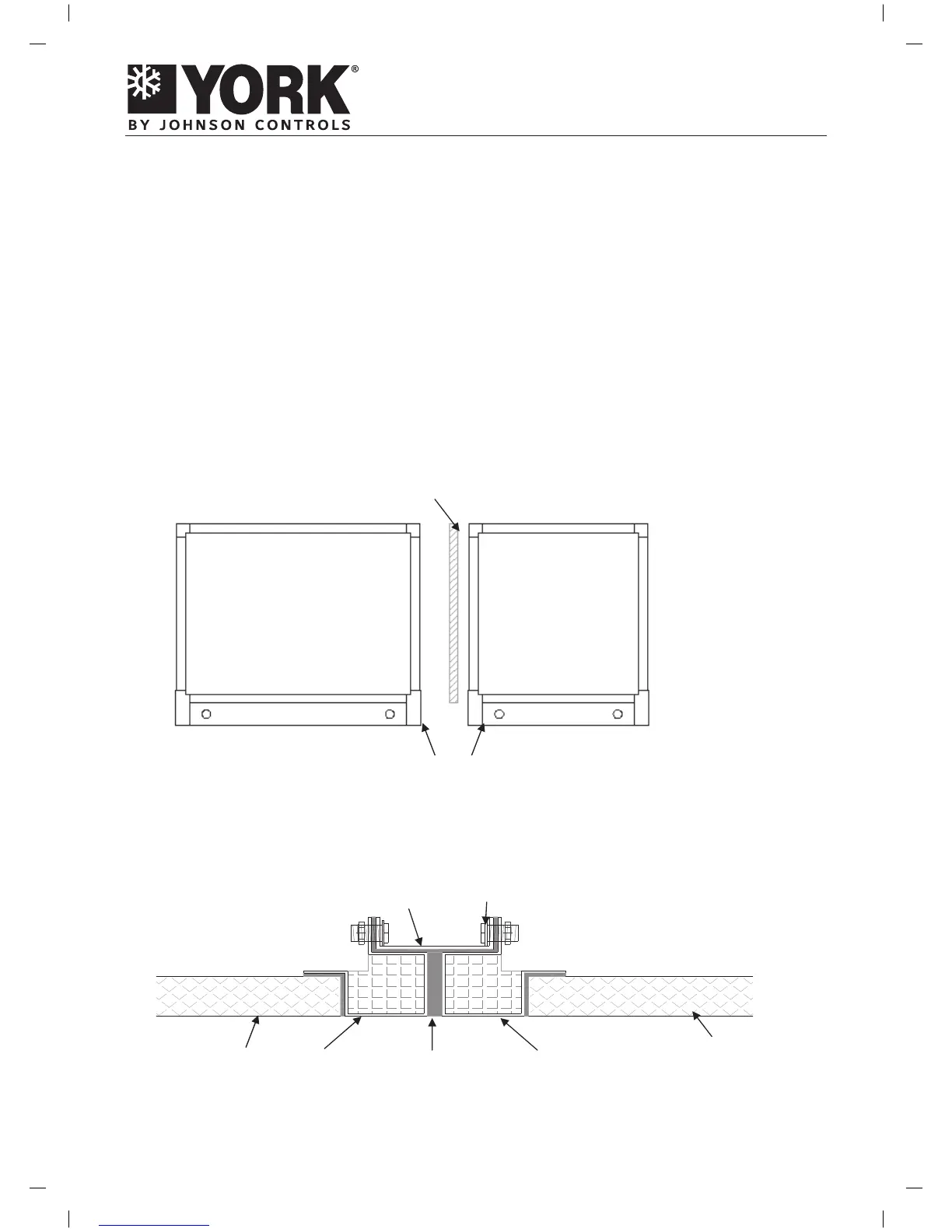

Stick the attached sealing and heat-preservation adhesive tape to the joint face of the frame among the unit sections
(One face should be stuck for each section, as indicated below )
Two consecutive unit sections are abut-jointed. Use a ruler to check whether they are aligned. Adopt connection parts
screw for connection at four sides in the unit (as indicated Below ).
Basement brace
Sealing and heat-preservation adhesive tape
Section 1 Section 2
Panel
Fasteners
Connection parts
Sealing adhesive tape
Frame
Panel
Frame
23
Installation &
Transportation
