ENGLISH
11

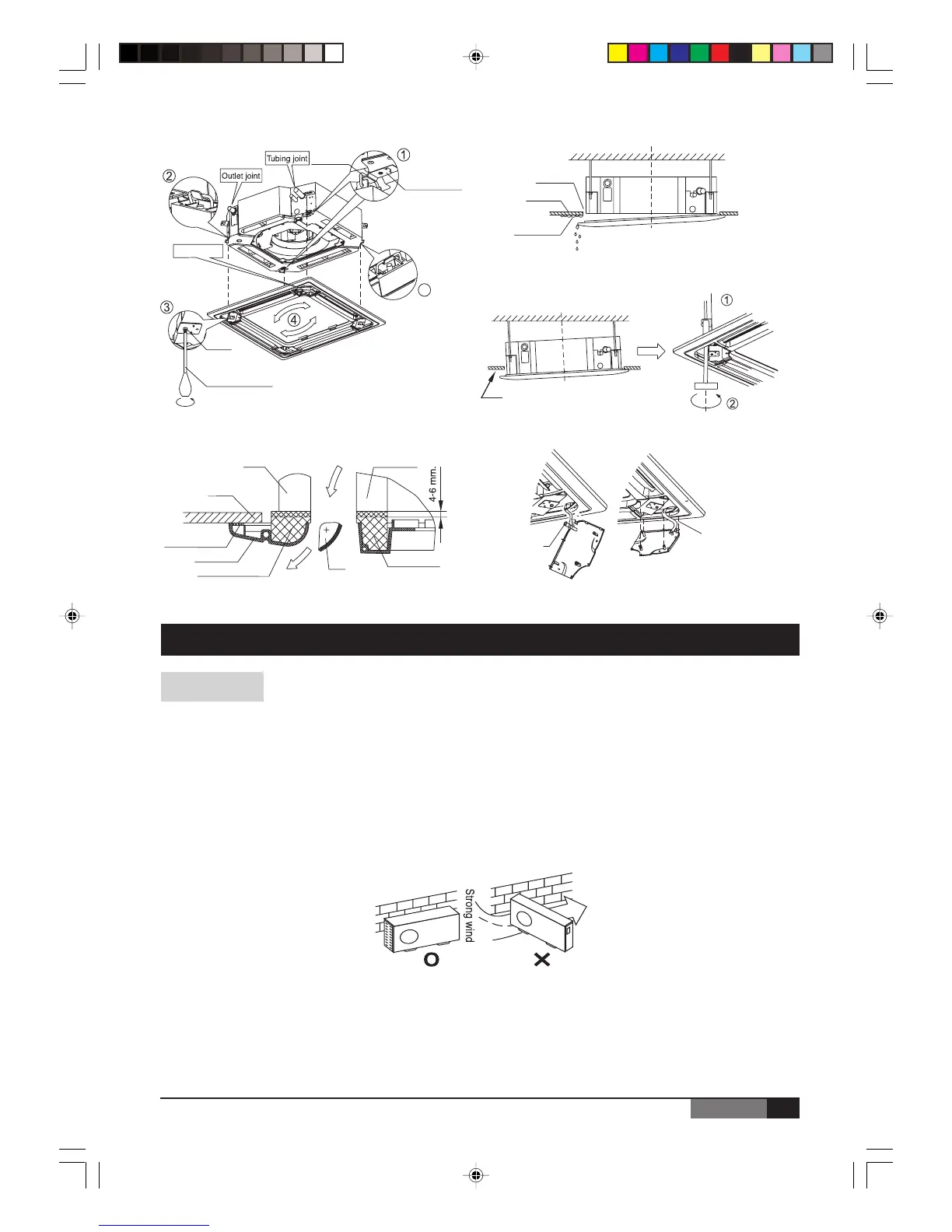

YORK INSTALLATION & OWNER’S MANUAL (EN) 035M80090-000
Swing motor
Cross-screwdriver
Body
Ceiling
Panel sponge
Panel
Panel foam 1
Panel foam 2
Outlet foam
Water-receiver
Leakage
Ceiling
Pollution
Water condensation
Hook panel
4
Installation
cover's rope
tap screw
Slide the four slider in
the corresponding channel
when installing the cover
Gap no allowed
Adjust lower nut
Loosen upper nut
Fan
Air out
Hook-
bolt
OUTDOOR UNIT INSTALLATION
CAUTIONS
•Keep this unit away from direct radiation of the sun or other heaters.
• If unavoidable, please cover it with a shelter.
• In places near coast or with a high attitude where the wind is violent, please install the outdoor unit against
the wall to ensure normal performance.
Use a baffle when necessary.
• In the case of extremely strong wind, please prevent the air from flowing backwards into the outdoor unit.
(Refer to chart 16)
• Locate the outdoor unit as close to the indoor unit as possible.
• The minimum distance between the outdoor unit and obstacles described in the installation chart does not
mean that the same is applicable to the situation of an airtight. Leave open two of three directions A, B, C.
Chart 16
Chart 11
Chart 12
Chart 13
Chart 14
Chart 15
To Next Page
