ENGLISH
9
YORK INSTALLATION & OWNER’S MANUAL (EN) 035M80090-000
>2500 mm.
>1000 mm.
>1000 mm.
>1000 mm.
>1000 mm.
780 (Hook-location)
840 (Body)
880 (Ceiling hole)
950 (Panel)
780 (Hook-location)
Tubing sideDrain side
A
840 (Body)
880 (Ceiling hole)
950 (Panel)
880 mm.
Body
Central hole
Installation paper board
Bolt
M6 x 12
Ceiling
Nut
Body
Hook
Panel
outlet inlet outlet
ground
Necessary room
A

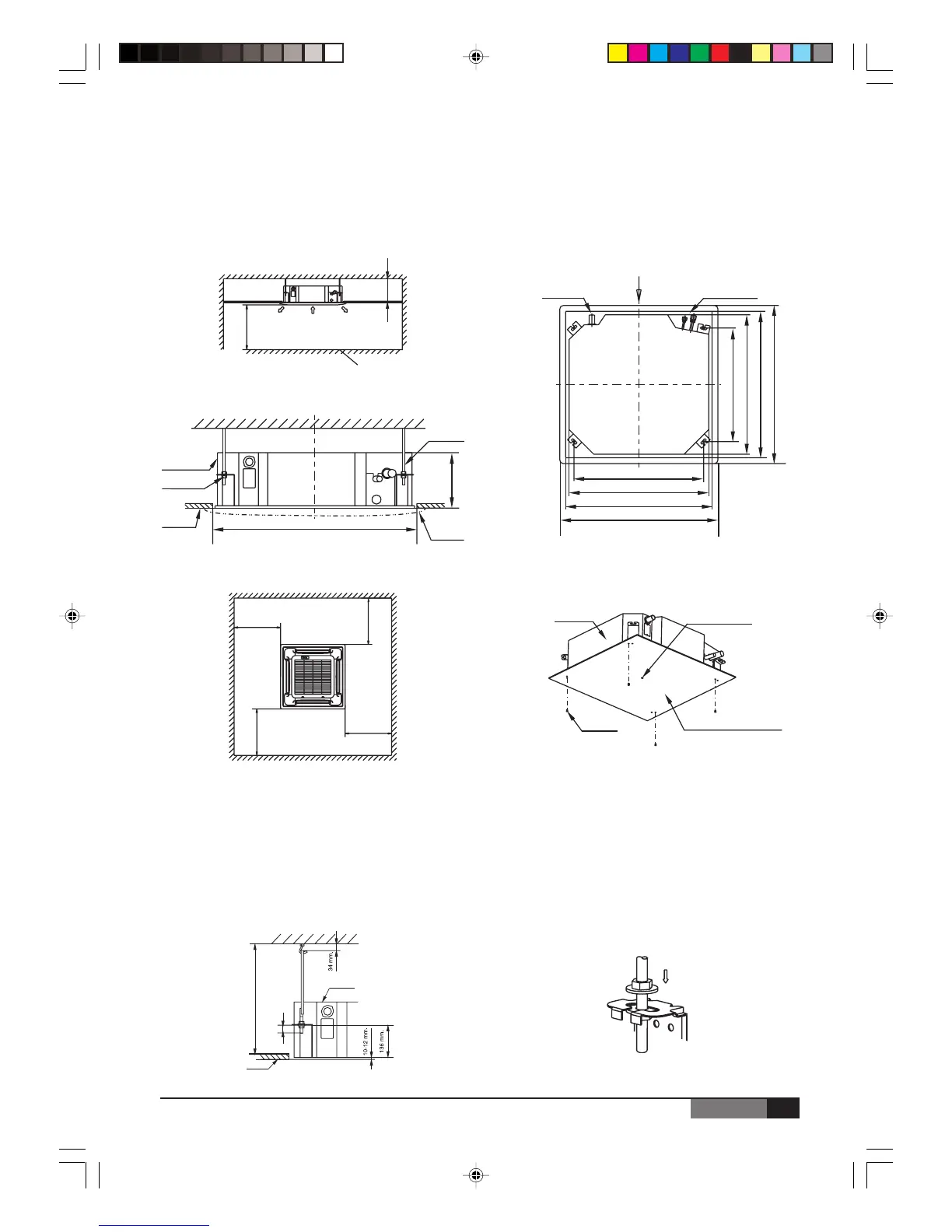

Chart 1
Note: 18000-24000 Btu/h Series, A = 260 mm.
48000 Btu/h Series, A = 330 mm.
Note: 18000-24000 Btu/h Series, B = 240 mm.
48000 Btu/h Series, B = 310 mm.
Chart 2
B
Chart 3
Chart 4
(Unit : mm.)
Chart 5
The length could be calculated from Chart 5
Length=H-181+L (in general, L=100 mm. and is half of the whole length of the installation hook)
c. Adjust the nuts on the four installation hooks evenly to ensure the balance of the body.
• If the drainpipe is awry, leakage will be caused by the malfunction of the water-level switch.
• Adjust the position to ensure the gaps between the body and the four sides of ceiling are even. The body’s
lower part should sink into the ceiling for 10 ~ 12 mm. (Refer to chart 5).
• Locate the air conditioner firmly by adjusting the nuts.
Chart 6 Chart 7
Body
Ceiling
H (Ceiling height)
b. Select the position of installation hooks according to the hook holes on the installation board.
•Drill four holes of 12 mm., 45 ~ 50 mm. deep at the selected positions on the ceiling. Then embed the
expandable hooks (fittings).
•Face the concave side of the installation hooks toward the expandable hooks. Determine the length of the installation
hooks from the height of ceiling, then cut off the unnecessary part.
• If the ceiling is extremely high, determine the length of the installation hook according to facts.
To Next Page
