FORM NO.: 6U5M-A11M-NB-EN
JOHNSON CONTROLS 39
SECTION
4
– WIRE CONTROLLER OPERATION
Don’t touch the screen with sharp points or edges which may damage the controller. Don’t twist
or pull the wires of the controller. Don’t wipe the controller with benzene, diluent or chemical
cloth. Otherwise discoloration or mechanical failure may occur. To remove dirt, dip the cloth in
the water with a neutral detergent and wring the water before cleaning. Wipe dry the controller
with dry cloth. Do not exert excessive force on the display or connection in order to avoid changes
in hue.
INTRODUCTION
The touch screen wire controller is standard optional for remote controls of YVAG units. The functions of
parameter setting, operating status viewing and fault recording are available. Instead of describing the information
above, the wire controller utilizes graphic icons in user interface.

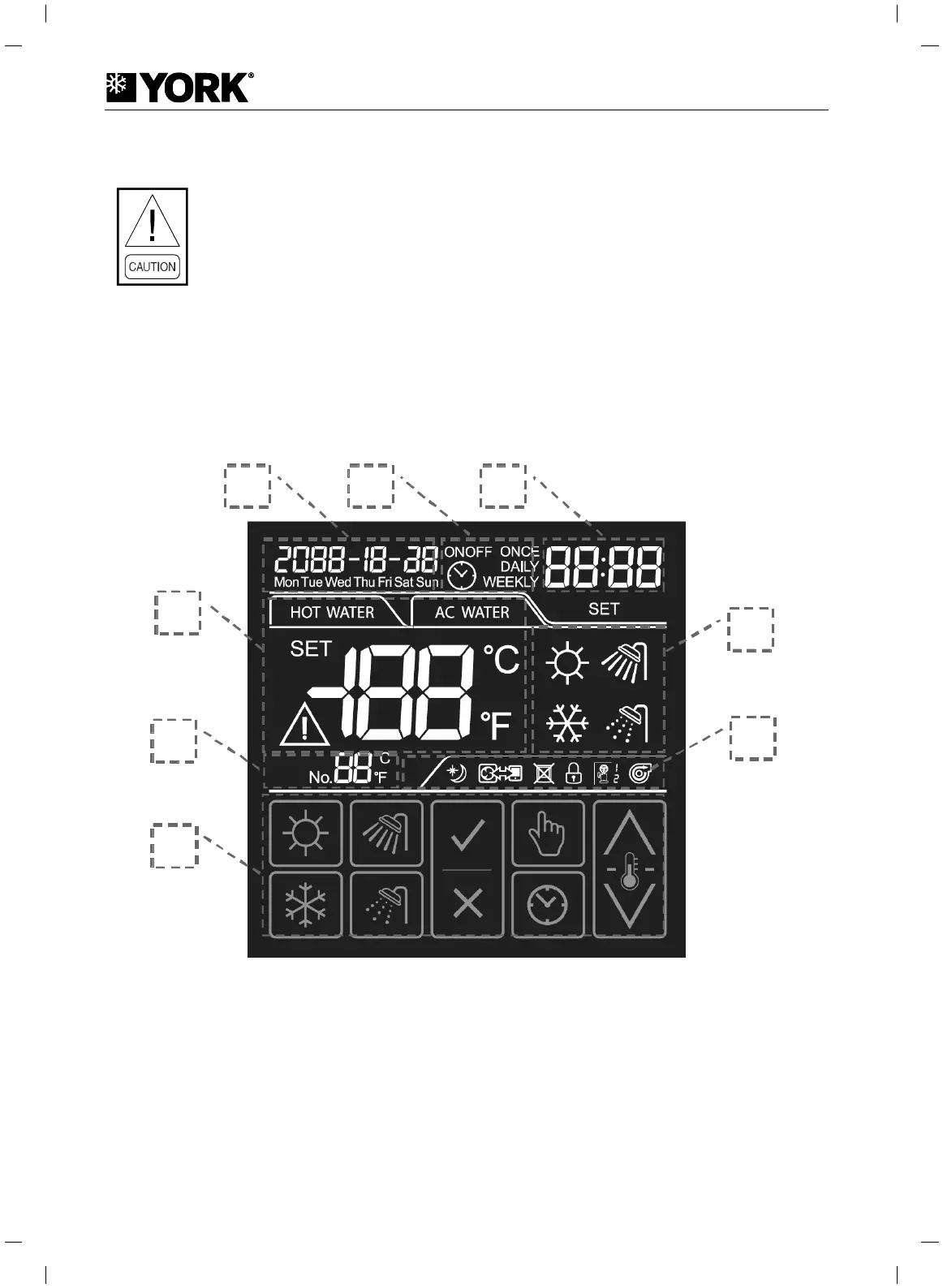

INTERFACE
Area 1: Date and time display;
Area 2: Timer display;
Area 3: Temperature display (include the set point and actual controlled water temperature);
Area 4: Serial number display;
Area 5: Operating mode setting;
Area 6: Running status display;
Area 7: Touch-keys.
The meanings of the icons are listed in Table 21.
1 2 1
3
4
5
6
7
