Easy Installation

Several pieces of the Facility Explorer Commercial

Zoning Package can be ordered pre-assembled from

the factory to simplify installation:

• Zone Controller and Actuator Assembly (FXZAN)

• The FX05 Field Controller is combined with an

M9104AGA non-spring return actuator and an

electrical termination wiring block, all in one

packaged assembly

• Perfect for retrofit installations where the zone

damper is already installed

• Zone Controller, Actuator, and Damper Assembly

• FXZAN Zone Controller and Actuator Assembly is

combined with a round or rectangular zone damper

• Perfect for new installations or for retrofit

installations where the zone damper has not yet

been installed

COMMERCIAL ZONING PACKAGE

• Bypass Damper and Actuator Assembly

• A round or rectangular bypass damper is combined

with an M910xHGA non-spring return actuator

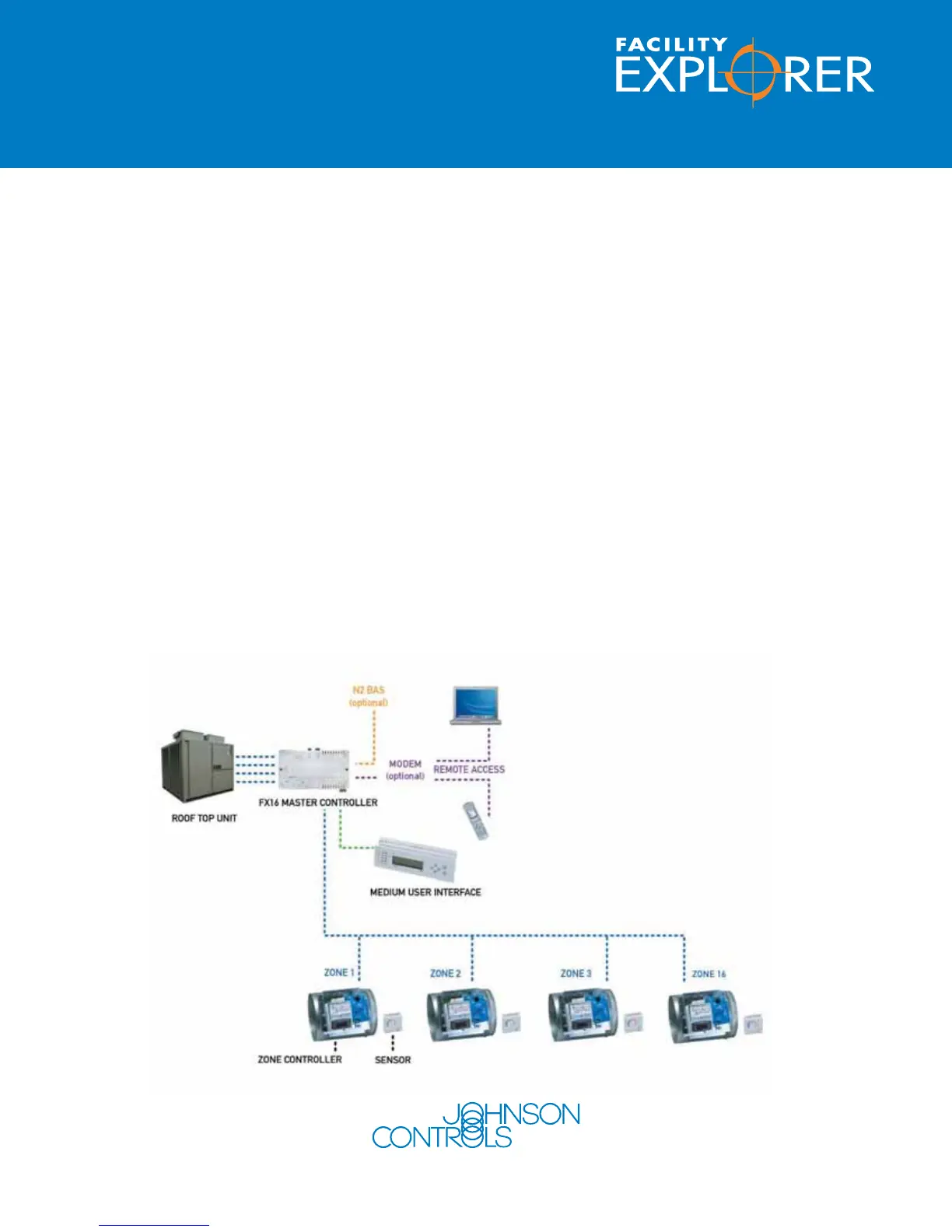

• FX16 Master Controller with Pre-Downloaded

Zoning Application

• FX16 Master Controller can be ordered with the

commercial zoning application pre-downloaded

• Once installed, the FX16 takes care of downloading

the corresponding parts of the zoning application to

each of the zone controllers

• Eliminates the downloading steps from the field

installation and startup

• This provides the possibility (with an onsite Medium

User Interface) to download, configure and

commission the entire system, including the

rooftop, bypass, and all zone controllers without

any software tool
