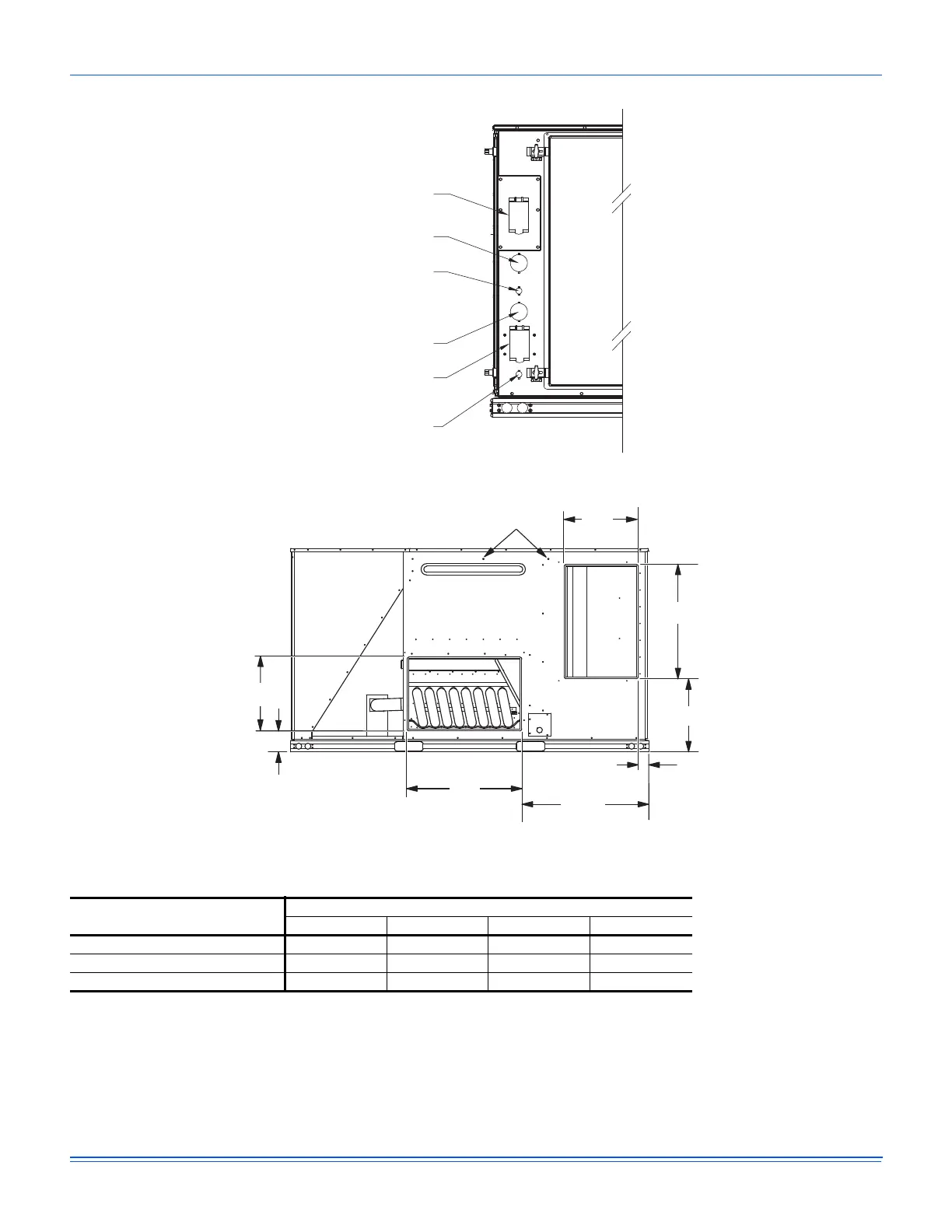

Figure 11: ZWTA3 thru TA5 Unit Electrical Entry
Figure 12: ZWTA3 thru TA5 Unit Side Duct Openings
Disconnect Swith Cover
Power Entry Ø 2-1/2
Control Entry Ø 7/8
Power Entry Ø 2-1/2
Convenience Outlet Cover
Convenience Outlet
Power Entry Ø 7/8
FRONT
D o t P l u g s
5 - 5 /3 2
3 1 - 1 1 /1 6
2 - 3 1 /3 2
1 8 - 1 /4
Return
Air
Supply Air
A
B
C
D
Table 6: Side Duct Dimensions
Unit Model Number
Dimension (in.)
ABCD
ZWTA3 27 3/4 12 1/16 27 1/2 16
ZWTA4 27 3/4 12 1/16 27 1/2 16
ZWTA5 27 3/4 12 1/16 27 1/2 16
