EC50 Enterprise Computer Quick Start Guide
10
Unpacking
To unpack the device:
1. Carefully remove all protective material from the device and save the shipping container for later
storage and shipping.
2. Verify that the following items were received:
• Touch computer
• Regulatory Guide.
3. Inspect the equipment for damage. If any equipment is missing or damaged, contact Customer Support
center immediately. See Service Information.
4. Prior to using the device for the first time, remove the protective shipping film that covers the exit
window, touch screen, and rear camera.
Device Features

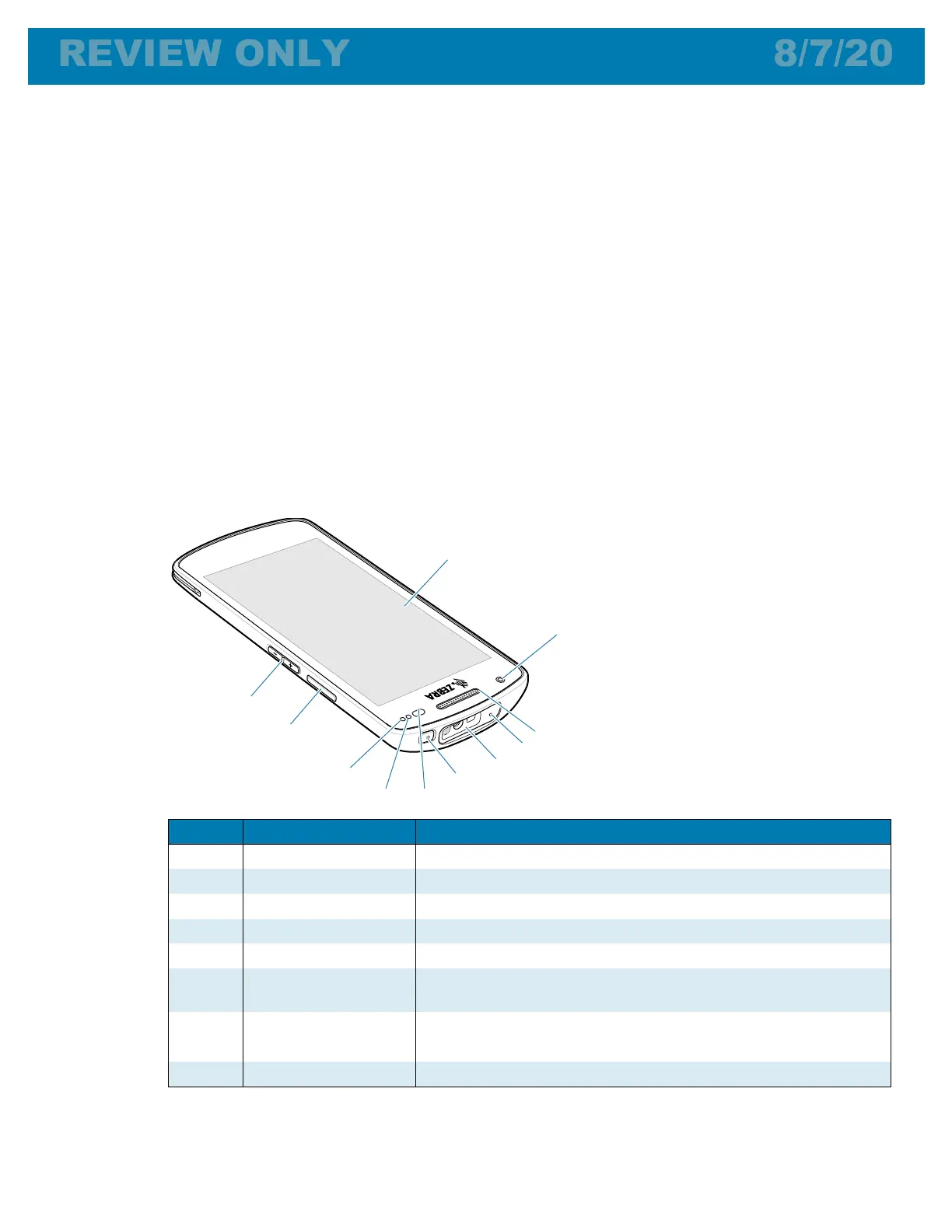

Figure 1 Front View
Item Name Description
1 Touch Screen Displays all information needed to operate the device.
2 Front Camera Takes photos and videos (available on some models).
3 Receiver Use for audio playback in Handset mode.
4 Microphone Use for communications in Speakerphone mode.
5 Exit Window Provides data capture using the imager.
6 Power Button Turns the display on and off. Press and hold to reset the device or
power off.
7 Proximity/Light Sensor Determines proximity for turning off display when in Handset mode.
Determines ambient light for controlling display backlight intensity.
8 Data Capture LED Indicates data capture status.
