Why does my Zephyr AK9234BS Ventilation Hood turn on by itself?
The switch controls on your Zephyr Ventilation Hood are light sensitive. A direct light source onto the switch controls may disrupt switch functions.
What to do if my Zephyr Ventilation Hood doesn't work after installation?
If your Zephyr Ventilation Hood doesn't work after installation, first ensure the circuit breaker and the unit's power are turned on. Check that the power line and cable locking connector are properly connected. Verify the wirings at the switch board and control board are correctly connected. If problems persist, the switch board or control board may be defective and require replacement. Also, make sure the wires on the control board are connected properly.
Why is my Zephyr AK9234BS not venting out properly?
If your Zephyr Ventilation Hood isn't venting properly, it could be due to several reasons. You might be using the wrong size of ducting, so consider changing to the correct size. The hood's height above the cooktop may be incorrect; adjust it to be between 24 and 36 inches. Also, wind from open windows or doors can affect ventilation, so close them to eliminate outside wind flow. Finally, check for any blockages in the duct opening or ductwork and remove them.
General| Brand | Zephyr |
|---|---|
| Model | AK9234BS |
| Category | Ventilation Hood |
| Filter Type | Baffle |
| Material | Stainless Steel |
| Power | 120V |
| Lighting | LED |
Explains safety alert symbols and their meanings (Danger, Warning, Caution).
Provides essential safety guidelines for operating the appliance.
Details electrical supply needs and safety precautions for installation.
Outlines FCC regulations regarding radio frequency interference.
Itemizes parts supplied with the hood and parts not supplied for installation.
A worksheet to calculate total equivalent duct length for proper airflow.
Specifies recommended mounting dimensions and ducting requirements.

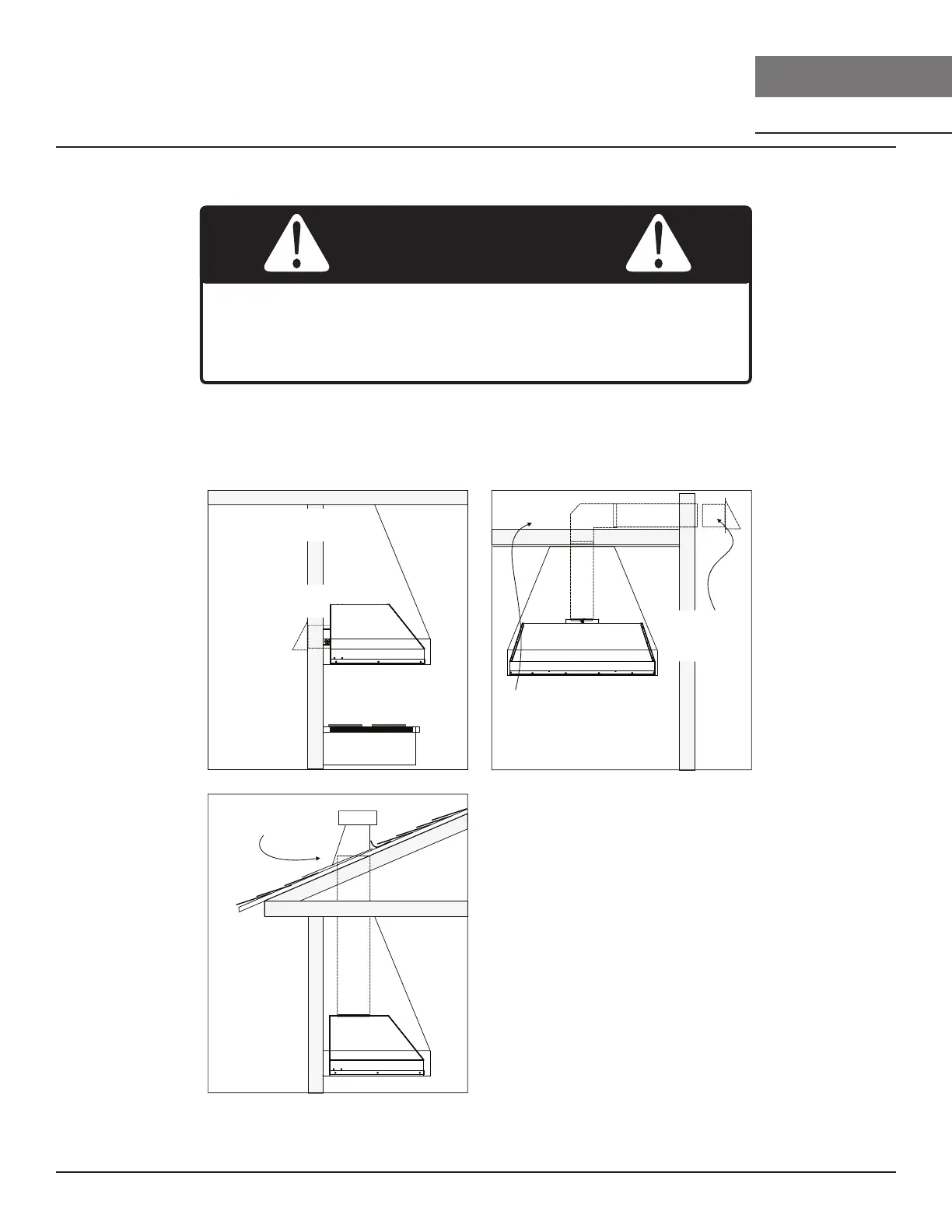

Details various ducting methods and warnings for proper exhaust.
Provides detailed dimensions and technical specifications for the hood models.
Covers electrical connection requirements and cable locking mechanisms.
Guides on preparing the cabinet and performing the initial installation steps.
Step-by-step instructions for preparing the hood for vertical ducting installation.
Step-by-step instructions for preparing the hood for horizontal ducting installation.
Details the operation of touch-sensitive controls for blower, lights, and settings.
Describes how to use the remote control for various hood operations.
Covers features like storage and how to maintain the remote control, including battery replacement.
Details how to clean the stainless steel surfaces and baffle filters.
Instructions for replacing the LED lights if they fail.
Explains the Airflow Control Technology (ACT) feature for adjusting CFM.
Guides on how to enable and confirm ACT settings for CFM control.
Electrical circuit diagrams for different Monsoon I models (AK9228BS/AK9234BS, AK9240BS, AK9246BS).
Provides solutions for common problems like unit not working or blower issues.
Addresses venting, remote control, and noise-related troubleshooting.
Lists available replacement parts and optional accessories with their part numbers.
