HIGH-VOLTAGE

NEVER cut high voltage components or cabling. Cutting could

result in serious injury or death.

High voltage cables and components may remain energized for

up to 10 seconds after disabling.

DO NOT CUTDO NOT CUT

COLOREDCOLORED

ZONESZONES

WARNINGWARNING

ZOM0081

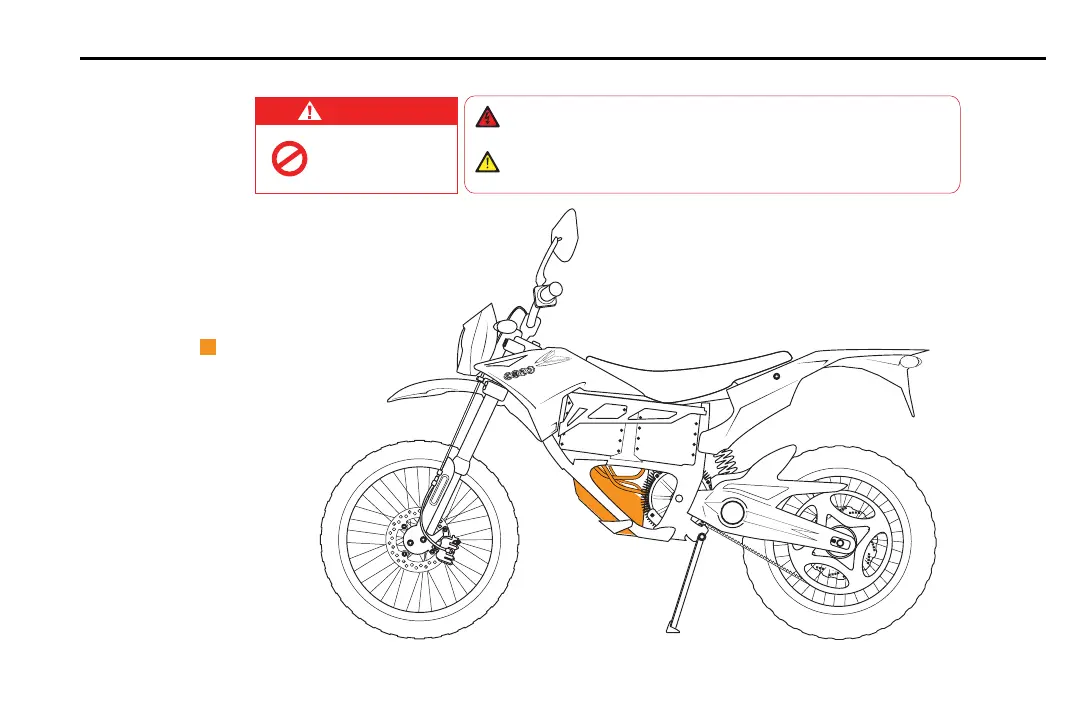

First Responder Information - High Voltage Components Locations

Zero Owner's Manual (X, MX and XU).book Page 1 Monday, April 29, 2013 3:30 PM

Default Chapter3
- Table of Contents3
Introduction5
- An Important Message to You from Zero Motorcycles5
- About this Manual5
- Useful Information for Safe Riding6
- Plug in Your Z-Force Power Pack6
Identification Numbers7
- Owner Information7
- Power Pack Serial Number8
- Motor Serial Number8
- Key Code Number8
- Vehicle Identification Number (VIN)8
General Information10
- Technical Specifications10
- Vehicle Range16
- Public Charging Stations17
- Maximizing Your Range17
- Emissions Information20
- Transporting21
Safety Information23
- Important Operating Information24
General Safety Precautions23
Location of Important Labels25
Controls and Components29
- Motorcycle Controls (FX/MX*/XU Street Legal)30
- Side View (MX Dirt)32
- Side View (FX Street Legal)34
- Side View (XU Street Legal)36
- Instrument Panel (FX/MX/XU Street Legal)38
- Handlebar Controls (FX/MX/XU Street Legal)40
- Performance Level Switch (FX/MX/XU Street Legal)43
- Smartphone Application43
Starting and Operating45
- First Time Set-Up45
- Unpacking Your Zero Motorcycle46
General Operation47
- Key Switch/Steering Lock Positions48
- Power Pack49
- Power Pack Charger52
- Operating Your Motorcycle58
- Front Suspension Adjustment60
- Rear Shock Adjustment62
Maintenance69
- Maintenance Schedule70
- Component Fasteners73
Maintaining Your Motorcycle69
- Owner's Responsibilities69
- Parts/Maintenance Items69
Power Pack77
General Maintenance78
- Brakes78
- Suspension80
- Wheels and Tires81
- Tire Inflation81
- Drive Belt82
- Drive Chain (Optional)84
- Headlight Alignment86
- Turn Signal Light Bulb Replacement89
- Brake/Tail Light Bulb Replacement89
- Running Light Bulb Replacement90
- Cleaning91
- Parking and Long Term Storage92
- Zero Motorcycles Accessories92
- Fuses92
Service Record95
Troubleshooting97
- Electric Motorcycle Safety Precautions97
- Troubleshooting Your Motorcycle97
- Battery Management System98
- Cold and Hot Weather Considerations104
- Safety Interlocks106
- System Warning Indicator108
- General Troubleshooting111
Warranty and Customer Information113
- Disclaimers Applicable to Standard Warranty114
- Proper Use115
- Purchaser's Responsibilities115
- Warranty Procedures116
- Transfer of Ownership and Warranty117
Warranty Information113
- Zero Motorcycles Warranties113
- Standard Warranty113
- Standard Warranty Exclusions113
Customer Information118
- Customer Assistance118
- Reporting Safety Defects119
Index121
First Responder Information125

Questions and Answers:

Need help?

Do you have a question about the Zero FX and is the answer not in the manual?

Zero FX Specifications

General

Category	Electric Motorcycle
Max Battery Capacity	7.2 kWh
Top Speed	85 mph (137 km/h)
Max Power	46 hp (34 kW)
Peak Torque	78 ft-lb (106 Nm)
Battery	Z-Force Li-Ion
Front Suspension	Showa 41 mm inverted cartridge fork
Rear Suspension	Showa piggyback reservoir shock
Front Brake	Single 320 mm disc with J-Juan 2-piston caliper
Rear Brake	Single 240 mm disc with J-Juan 1-piston caliper
Motor	Z-Force® 75-5 passively air-cooled, high efficiency, radial flux, interior permanent magnet, brushless motor
