15
ZTE confidential
4.3
Disassembly
Step
s
The device for disassembly d
emonstration is for reference only
. It might not be completely
identical with yours.

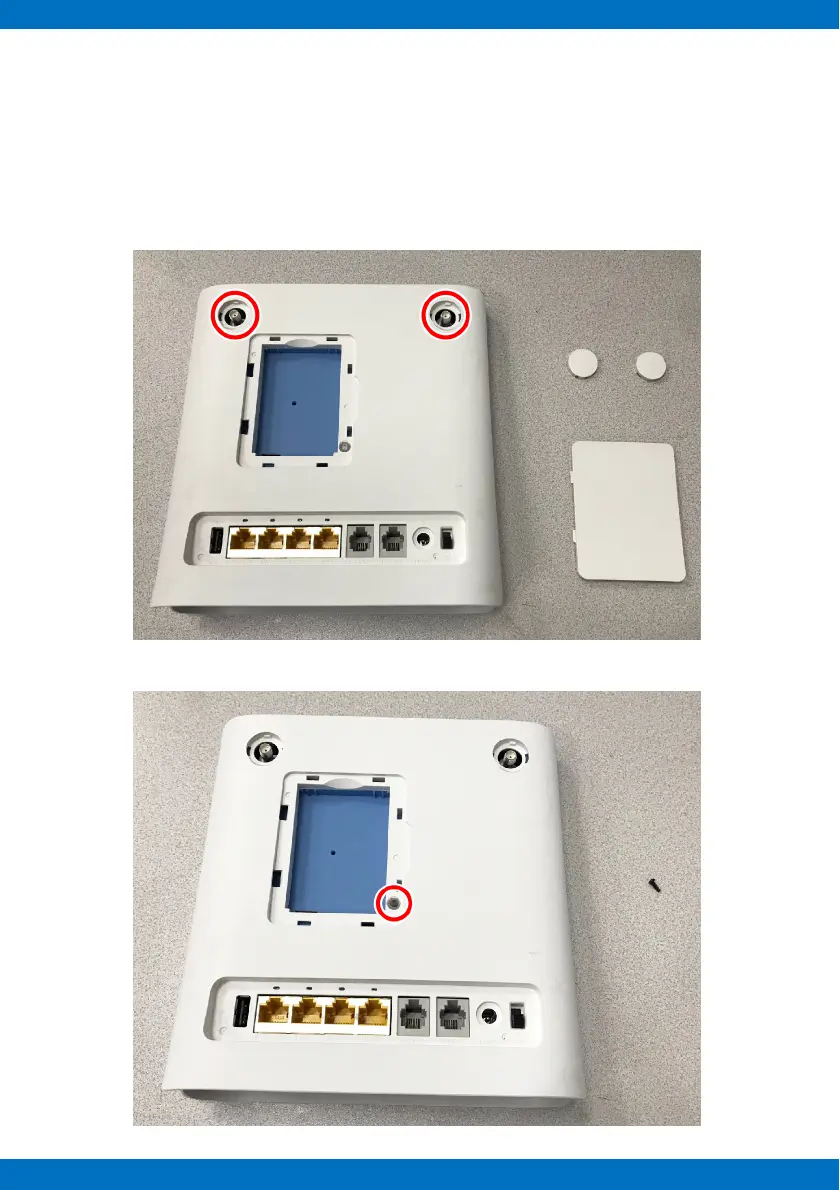

1.
Remove the plugs an
d battery cover
.
NOTE:
The left and right plugs are not interchange
able. Install them accordingly when
reassembling the device.
2.
Remove the screw
.
15
