Confidential and Proprietary Information of ZTE CORPORATION 5
C h a p t e r 3
Installation Preparation
Hardware Description
Front panel

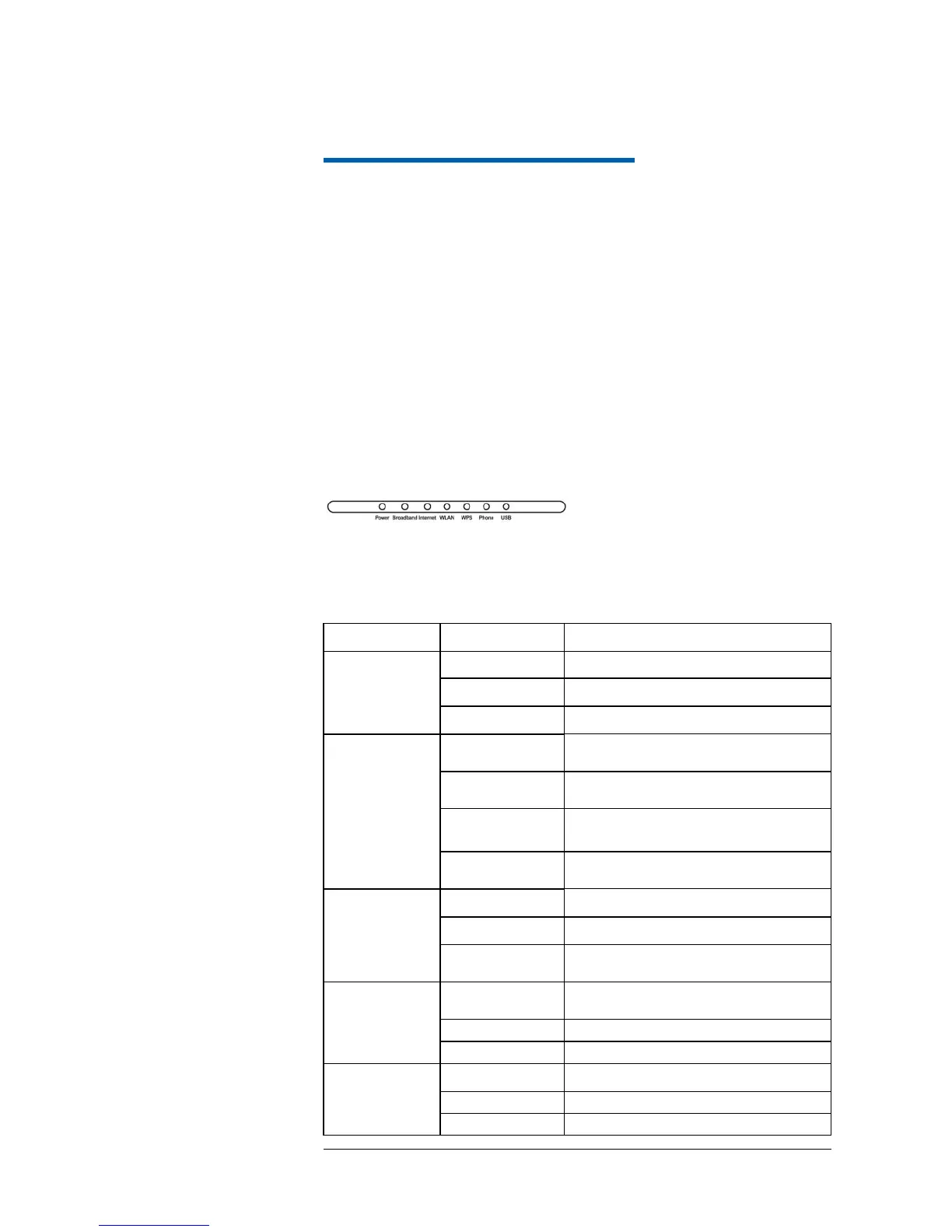

Figure 1 shows the indicators on the front panel of the ZXHN H268A
Figure 1 The Front Panel
Table 1 describes the indicators on the front panel of the ZXHN H268A unit.
Table 1 Descriptions of Indicators
LED Indicator Status Description
Power
Solid Green ZXHN H268A is powered on.
Solid Red
ZXHN H268A self-check failed.
Off
ZXHN H268A is powered off.
Broadband
(The DSL link is
established.)
Solid Green
DSL synchronization is normal and the link
connection is normal.
Fast Flashing Green
ZXHN H268A is in the handshaking process to
establish the link connection.
Slowly Flashing
Green
Physical link exists, however carrier wave has
not been detected.
Off
ZXHN H268A is not powered on or link has not
been established.
Broadband
(The WAN link is
established.)
Solid Green
The link is activated.
Flashing Green
Data is being transmitted.
Off
The equipment is not powered on or the WAN
port is disabled.
Internet
Solid Green
The connection is established and a correct IP
address is obtained.
Solid Red Internet connection failed.
Flashing Green Data is being transmitted.
WLAN
Solid Green
The WLAN RF switch is on.
Flashing Green Data is being transmitted.
Off ZXHN H268A is not powered on or the WLAN
