Chapter2InstallationOverview

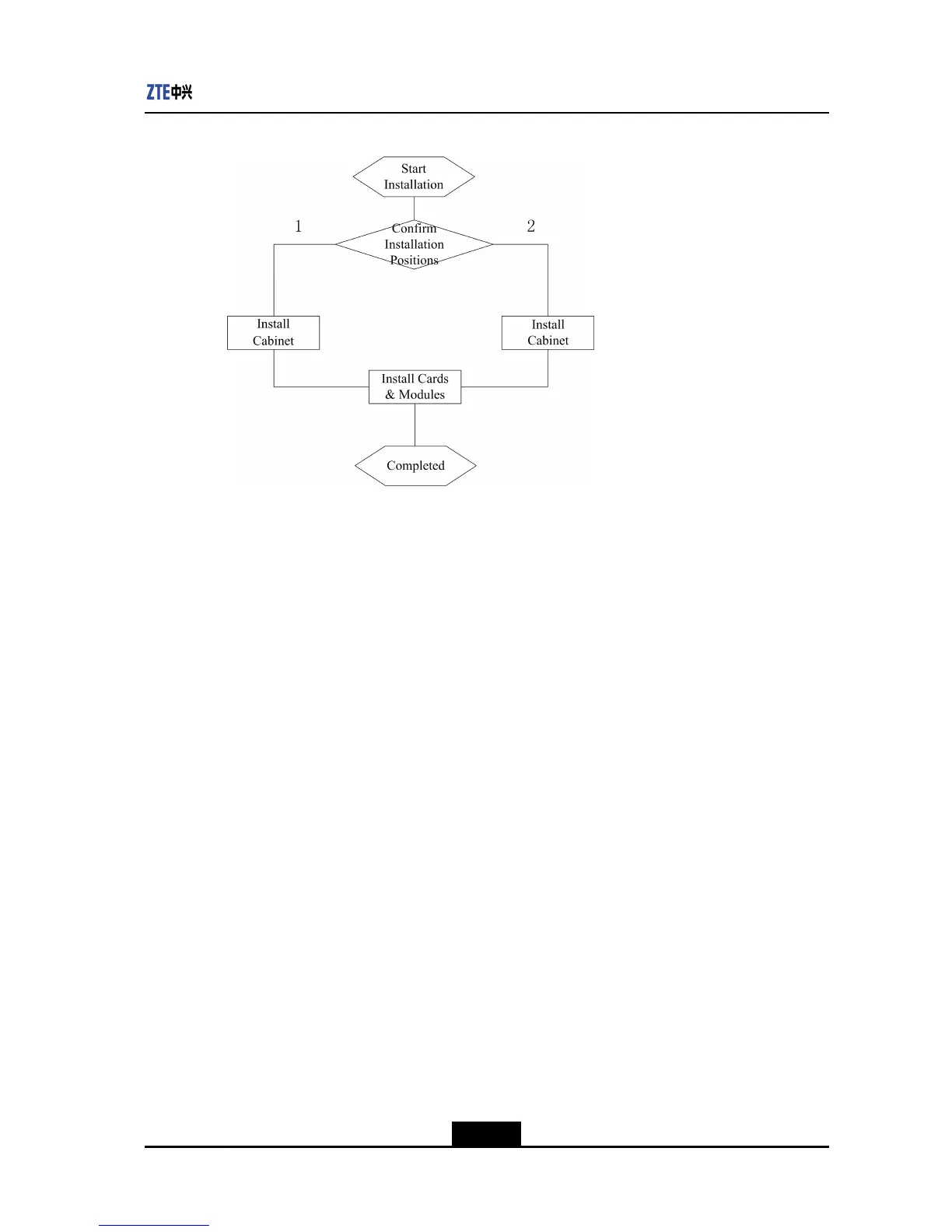

Figure2-9MainDeviceInstallationFlowDiagram
Duringtheinstallationofmaindevices,therearetwoinstallationmodes:
lInstalledin19-InchStandardCabinet
lInstalledonWorkPlatform
Installcardsandmodulesafterinstallationofenclosure.
Installcardsandmodulesinenclosuredirectly.
Forinstallationdetailsofmaindevices,refertoChapter4.
ConnectPowerCable
Asforconnectionofpowercable,therearetwomodes:connectionofACpowercable
andconnectionofDCpowercable.Fordetails,refertoChapter5.
ConnectOtherCables
Thispartintroducestheconnectionofallcables.Fordetails,refertoChapter6.
CheckHardwareInstallation
Afterallhardwareareinstalled,itisnecessarytochecktheinstallationsoastomake
preparationtosubsequentsoftwareinstallationandsystemdebugging.Fordetails,refer
toChapter7.
2-7
SJ-20110803091932-002|2011-08-30(R2.0)ZTEProprietaryandCondential
