21
REPREP
REPREP
REP
AIR PAIR P
AIR PAIR P
AIR P
ARTS LISTARTS LIST
ARTS LISTARTS LIST
ARTS LIST

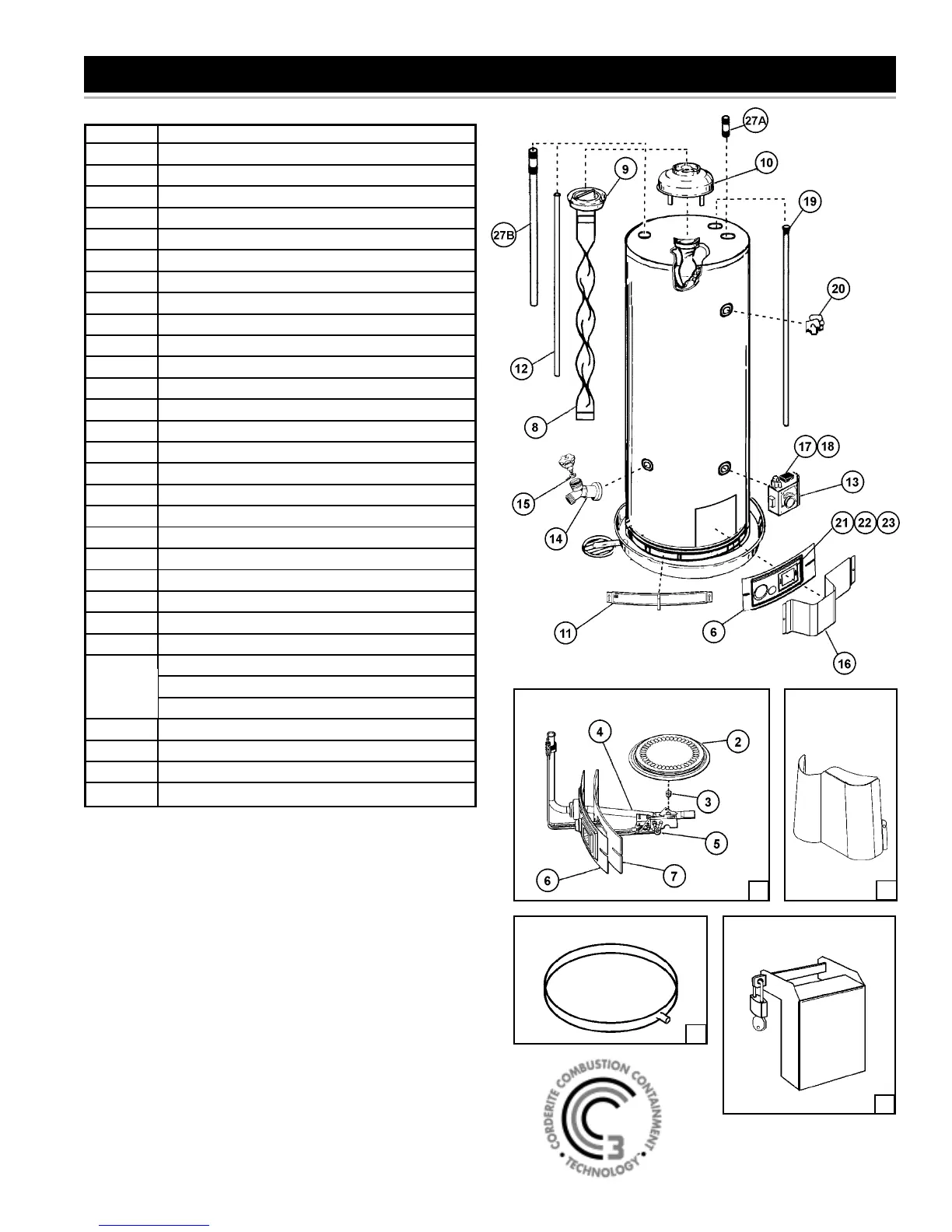

Key No. Part Description
1 Burner Assembly
2 Burner Head
3 Burner Orifice
4 Burner Tube
5 Pilot Assembly
6 Inner Door
7 Inner Door Gasket
8 Flue Baffle
9 Flue Restrictor
10 Drafthood
11 Air Intake Screen
12 Inlet Tube
13 Gas Control Valve
14 Drain Valve
15 Drain Valve Washer
16 Outer Door (may appear different than shown)
17 Piezo Ignitor Generator
18 Piezo Ignitor Bracket
19 Anode Rod
20 Temperature-Pressure Relief Valve
21 Viewport Bracket
22 Viewport Glass
23 Viewport Insulation
24 20” Dia. Drain Pan w/Side Drain (optional)
22” Dia. Drain Pan w/Side Drain (optional)
24” Dia. Drain Pan w/Side Drain (optional)
26” Dia. Drain Pan w/Side Drain (optional)
25 Thermostat Shield (optional)
*26 Instruction Manual
27A Nipple with Heat Trap
27B Secondary Anode with Heat Trap
* Not Shown.
Now that you have purchased this water heater, should a need
ever exist for repair parts or service, simply contact the company
it was purchased from or direct from the manufacturer listed
on the rating plate on the water heater.
Be sure to provide all pertinent facts when you call or visit.
Selling prices will be furnished on request or parts will be
shipped at prevailing prices and you will be billed accordingly.
The model number of your Gas Water Heater will be found on
the rating place located above the gas control valve.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• MODEL NUMBER
• TYPE GAS (NATURAL OR PROPANE (L.P.)
• SERIAL NUMBER
• PART DESCRIPTION
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
24
DRAIN PAN
25
THERMOSTAT SHIELD
16
OUTER DOOR
(OPTIONAL)
1
BURNER ASSEMBLY
®
To Next Page
