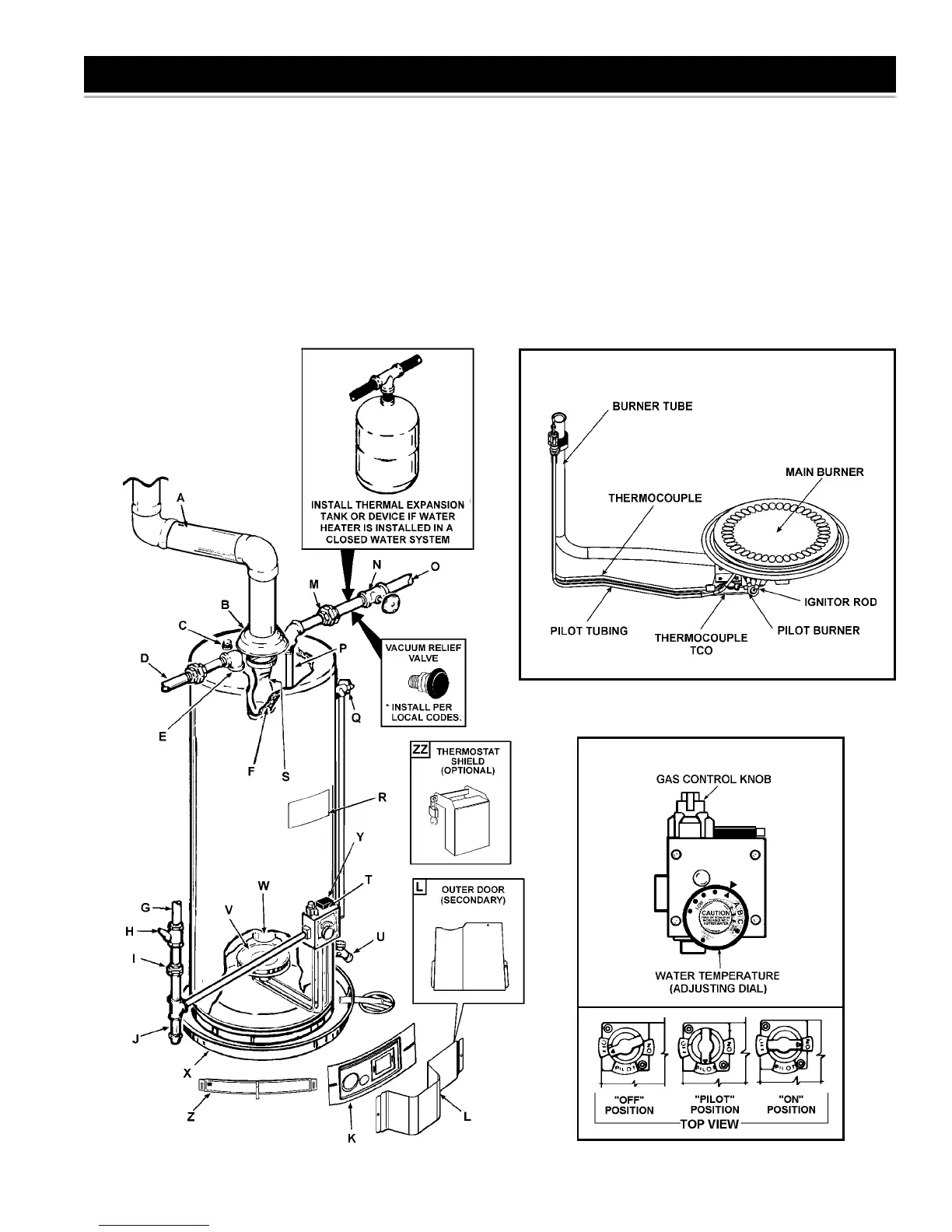

GET TO KNOW YOUR WATER HEATER - GAS MODELS
A Vent Pipe
B Drafthood
C Anode
D Hot Water Outlet
E Outlet
F Insulation
G Gas Supply
H Manual Gas Shut-off Valve
I Ground Joint Union
* INSTALL IN ACCORDANCE
WITH LOCAL CODES.
* DRIP LEG AS REQUIRED
BY LOCAL CODES.
FIGURE 1.
J Drip Leg (Sediment Trap)
K Inner Door
L Outer door
M Union
N Inlet Water Shut-off Valve
O Cold Water Inlet
P Inlet Dip Tube
Q Temperature-Pressure Relief Valve
R Rating Plate
S Flue Baffle
T Thermostat
U Drain Valve
V Pilot and Main Burner
W Flue
X Drain Pan
Y Piezo Ignitor
Z Air Intake Screen
ZZ Thermostat Shield (optional)
* ALL PIPING MATERIALS TO BE
SUPPLIED BY CUSTOMERS.
TO VENT TERMINATION
ON ROOF
(T) THERMOSTAT
(V) PILOT & MAIN BURNER
