ABB 23WT25 User Manual

2019-12-19 15/20

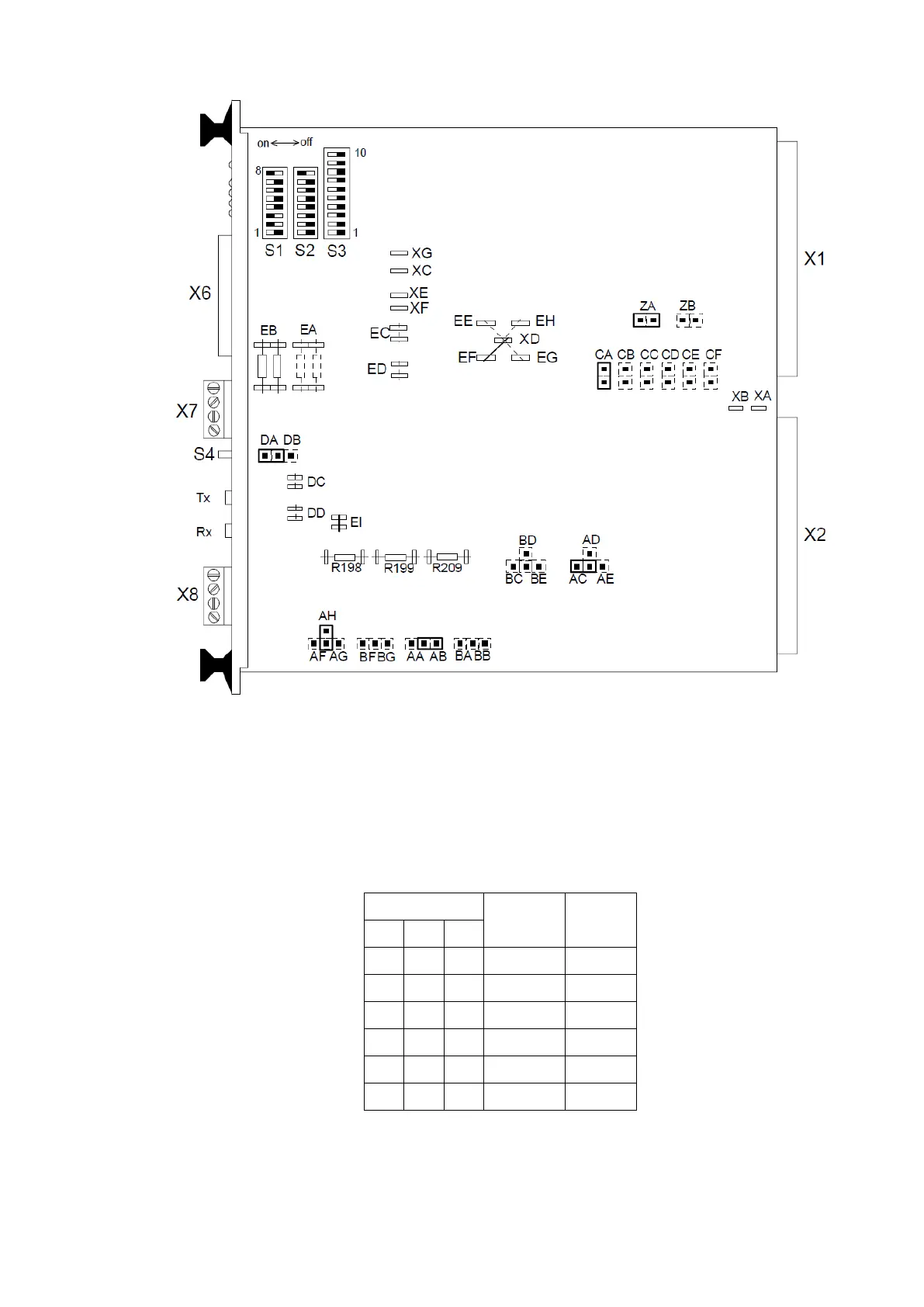

Figure 8: Jumper layout NSK5 G4AK
2.5.1 Configuration of baud rate
The baud rate of the NSK5 can be selected by switch positions 1 to 3 at the switches S1
(Transmit channel) and S2 (Receive channel) as listed in Table 2. For simplicity, only baud
rates compatible to 23WT25 and 500FSD20 are listed.
Switch S1/S2
Baud rate
Standard
1
2
3
On
On
Off
50 Bd.
R.35
Off
Off
On
100 Bd.
R.37
Off
On
Off
200 Bd.
R.38B
Off
On
On
200 Bd.
R.38A
On
Off
Off
300 Bd.
R.38A
On
On
Off
1200 Bd.
V.23
Table 5: NSK5 configuration of baud rates
