Mechanical installation
32
Checking the delivery
Check that all items listed in section Unpacking the unit are present.
Check that there are no signs of damage. Before attempting installation and
operation, check the information on the type designation label of the drive to verify
that the unit is of the correct type. The label includes an IEC and NEMA rating, UL,
C-UL, CSA and CE markings, a type code and a serial number, which allow
individual recognition of each unit. The first digit of the serial number refers to the
manufacturing plant. The next four digits refer to the unit’s manufacturing year and
week, respectively. The remaining digits complete the serial number so that there
are no two units with the same serial number.

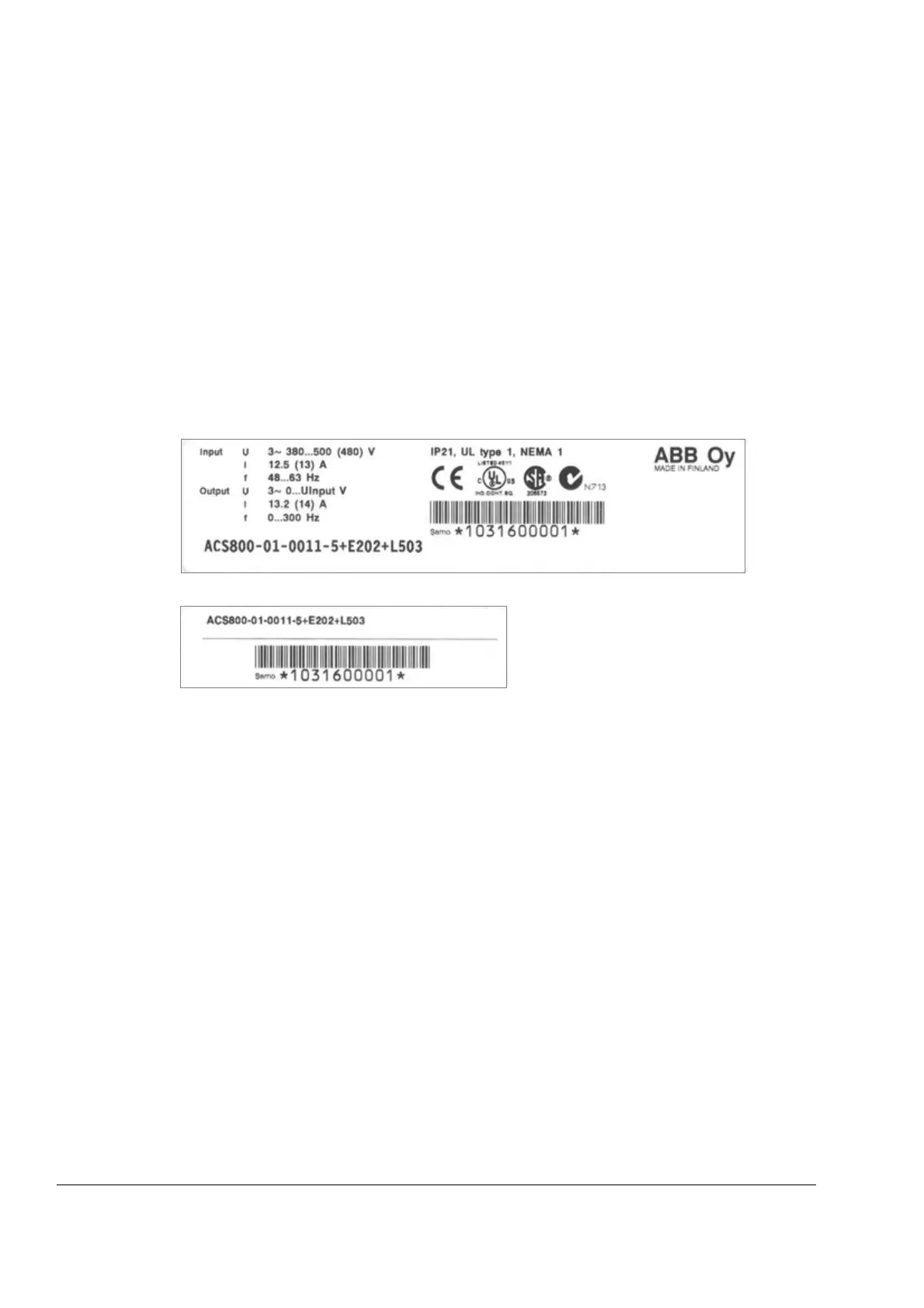

The type designation label is attached to the heat sink and the serial number label to
the upper part of the back plate of the unit. Example labels are shown below.
Before installation
The drive must be installed in an upright position with the cooling section facing a
wall. Check the installation site according to the requirements below. Refer to
Dimensional drawings for frame details.
Requirements for the installation site
See Technical data for the allowed operation conditions of the drive.
Wall
The wall should be as close to vertical as possible, of non-flammable material and
strong enough to carry the weight of the unit. Check that there is nothing on the wall
to inhibit the installation.
Floor
The floor/material below the installation should be non-flammable.
Type designation label
Serial number label
