Electrical installation
72

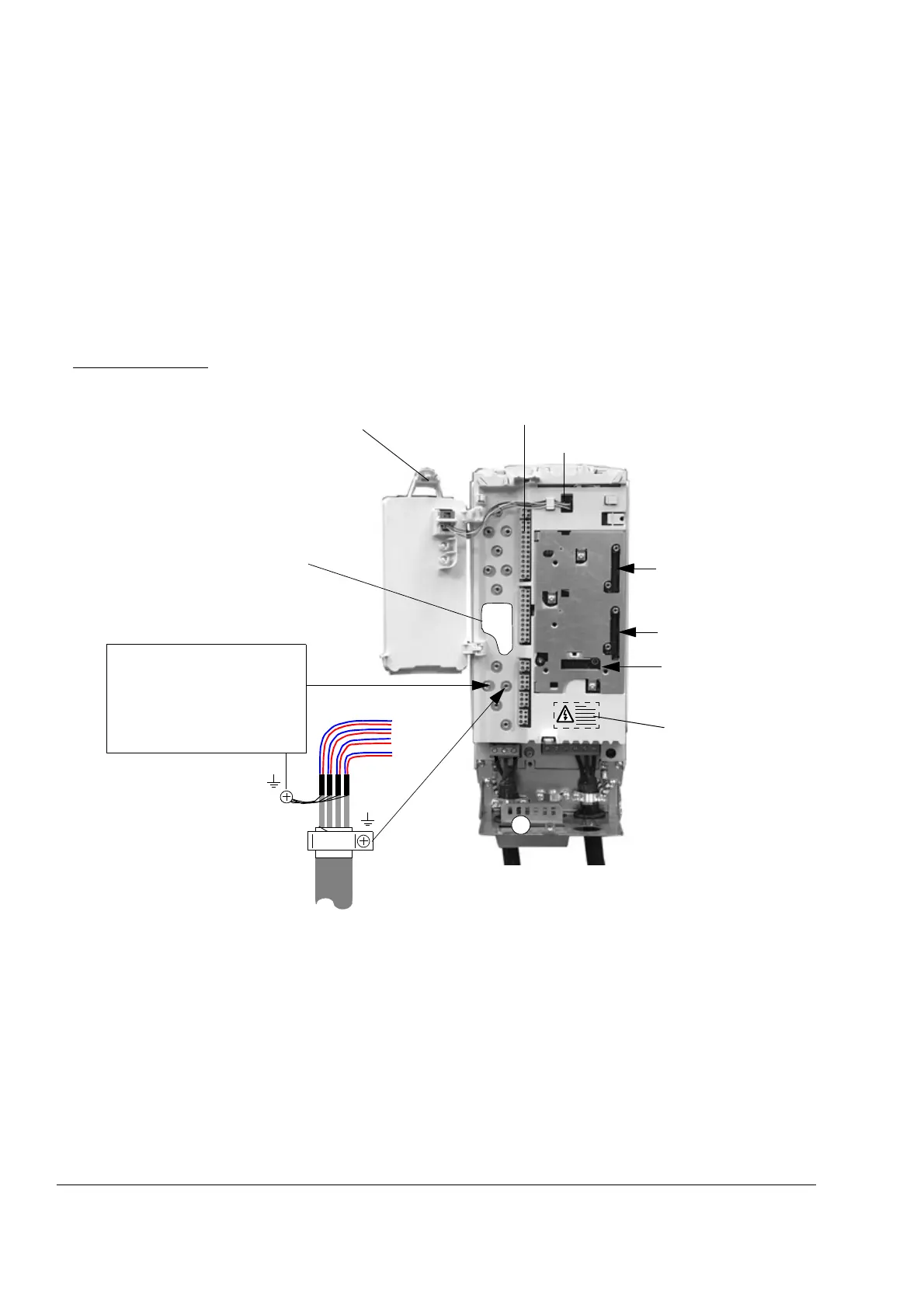

Connecting the control cables
Lead the cable through the control cable entry (1).
Connect the control cables as described below. Connect the conductors to the
appropriate detachable terminals of the RMIO board [refer to chapter Motor control
and I/O board (RMIO)]. Tighten the screws to secure the connection.
Terminals
Detachable connection terminals (pull up)
Option module 1
Option module 2
Frame sizes R2 to R4
The control cable connection terminals are
exposed when the control panel mounting platform
is turned aside by pulling this knob. Be careful, do
not use excess force when pulling.
X39 for control panel cable
Place the warning
sticker here
1
2
3
4
I/O cables: Ground the
control cable shields in the
holes with screws. See
section 360 degrees
grounding.
1
DDCS communication
option module 3:
RDCO
X41
Terminal for optional Prevention of
unexpected start-up (+Q950) or optional
Safe torque off (+Q967) function.
Connect the external AGPS or ASTO
board here. See page 77 or 83.
